Square D

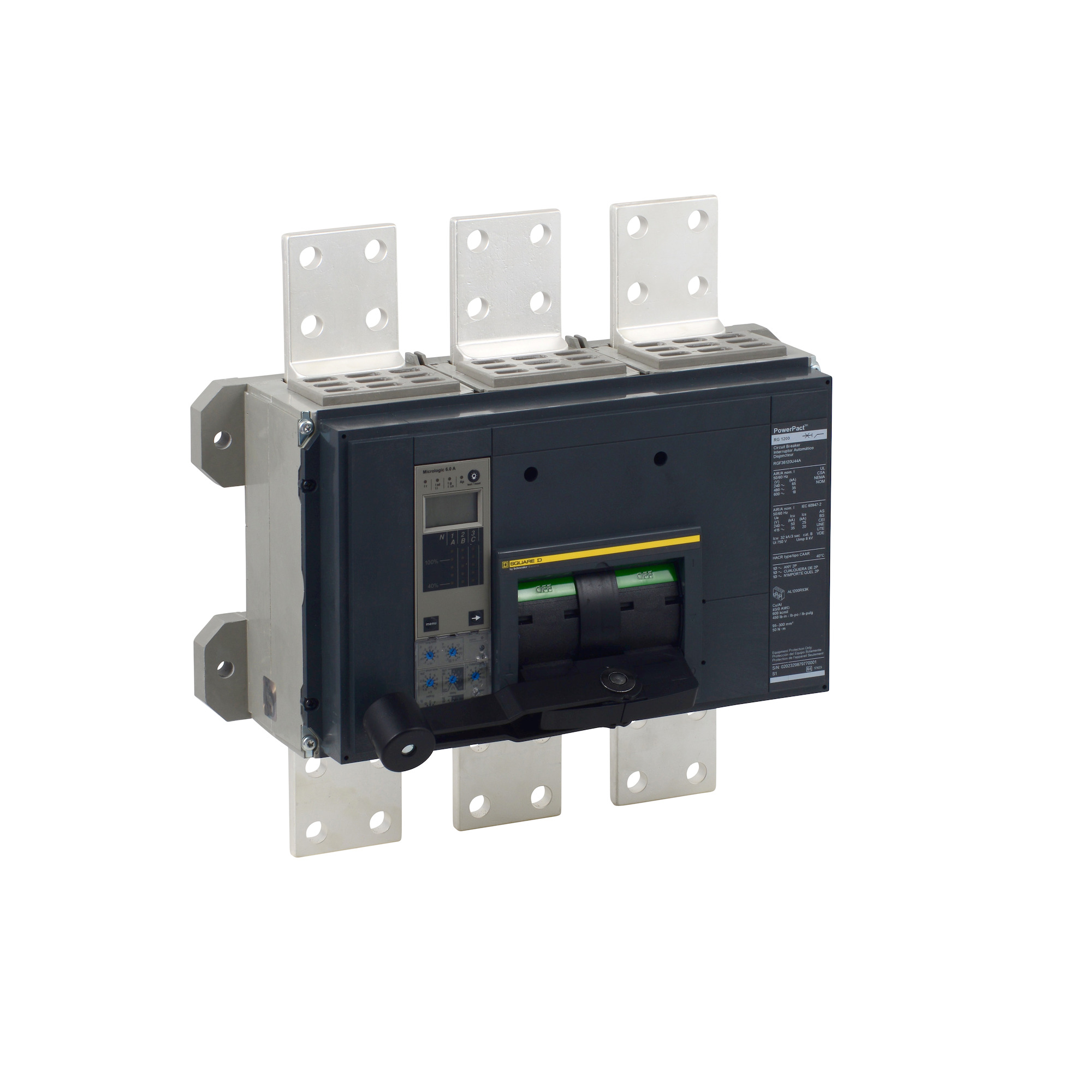

RLF36250U44A PowerPact MasterPact Type RL Molded Case Circuit Breaker, 600 V AC, 2500 A, 50/100/125 kA Interrupt, 3 Poles, Electronic Trip

MFR:
Schneider Electric
MFR #:
RLF36250U44A
UPC:
785901800590
Item #:
1125721

Availability

Location Available Qty
Available Available to Order

PowerPacTR-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT R-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Ammeter with a 6.0A trip unit and an LSIG function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT R circuit breakers are available in 2, 3, and 4-pole unit mount and I-Line construction (I-Line construction is available for 1000A and 1200A rated circuit breakers only). This unit has a busbar connection. This PowerPacT P, 2500A, 3 pole, circuit breaker has an interrupting rating of 50kA at 600VAC. The circuit breaker has a continuous current rating of 80%. PowerPacT R circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Manuals and Documentation
Catalog Number RLF36250U44A
Manufacturer Schneider Electric
Brand Square D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Connection Busbar connection, line;busbar connection, load; AWG 3/0...750 kcmil aluminium/copper
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=438181&lang=en-us
UPC 785901800590
GTIN 00785901800590
Depth 14.49 IN
