Telemecanique

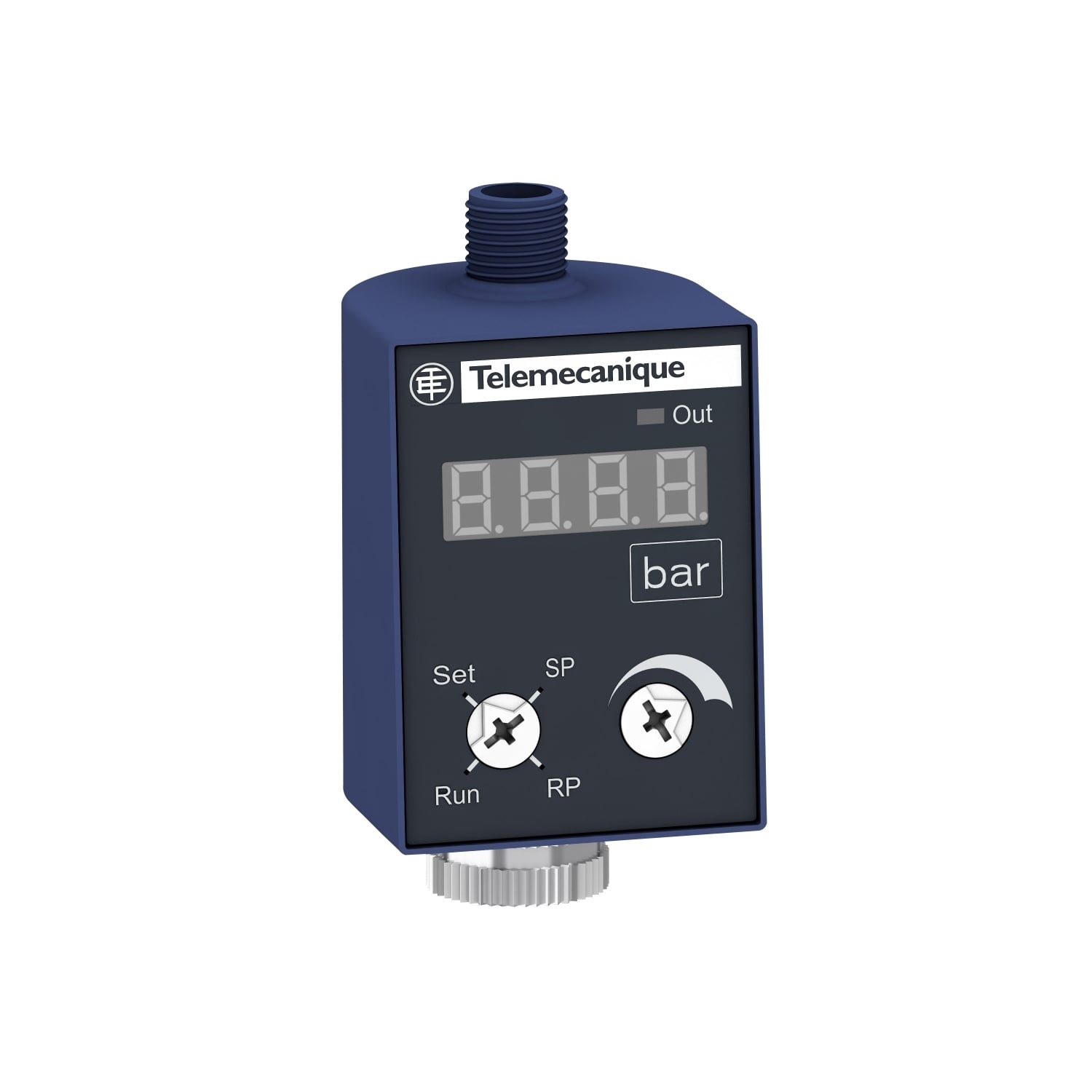

ZMLPA1P2SH OsiSense XM ZMLP Electronic Pressure Sensor, -14.5 to 6000 Sensing Range, 300 ms Response Time, PBT Valox

MFR:
Telemecanique Sensors
MFR #:
ZMLPA1P2SH
UPC:
785901877547
Item #:
1123998

Availability

Location Available Qty
Available Available to Order
$397.85 each

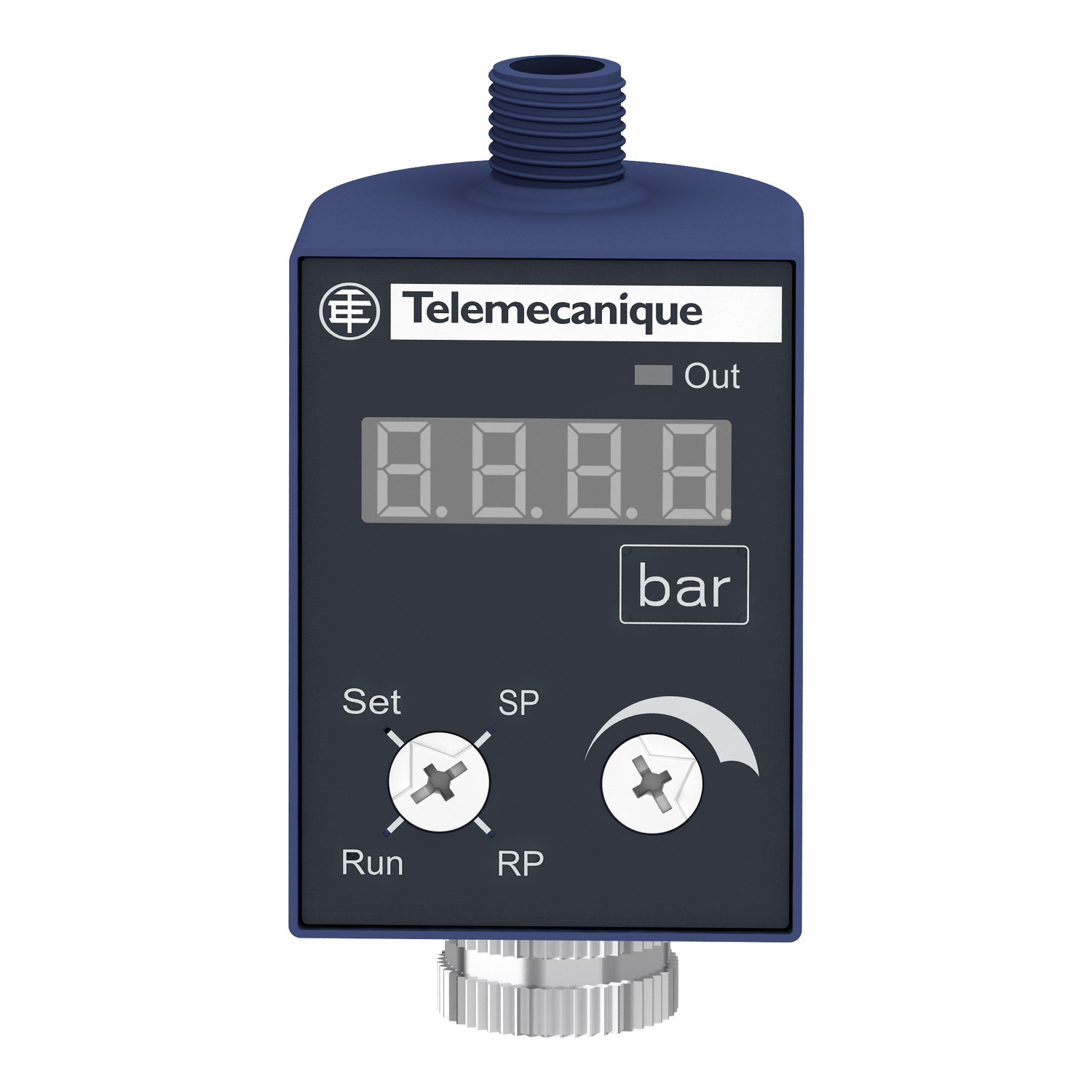

This ZML electronic pressure switch has a 4 digit 7-segment display, hysteresis switching mode. It has a pressure rating of -1 bar. It has a supply voltage of 24V DC, 2 x solid state outputs (pnp) and an analog ouput of 4 to 20mA. It provides a simple reading of current value and threshold with clear LED display. 10 million cycles mechanical durability for minimum required maintenance on your pressurized fluid circuits.

Manuals and Documentation
Catalog Number ZMLPA1P2SH
Manufacturer Telemecanique Sensors
Brand Telemecanique
Country of Origin France
Made in USA No
Special Features 4 digits 7 segments
Standard EAC-CULUS,EN/IEC 61000-6-4-UL 508-EN/IEC 61000-6-2,IP67 EN/IEC 60529-IP65 EN/IEC 60529-IP69K DIN 40050,IMMUNITY TO CONDUCTED RF DISTURBANCES 10 V 0.15...80 MHZ EN/IEC 61000-4-6-SURGE IMMUNITY TEST 1 KV EN/IEC 61000-4-5-ELECTRICAL FAST TRANSIENT/BURST IMMUNITY TEST 2 KV EN/IEC 61000-4-4-SUSCEPTIBILITY TO ELECTROMAGNETIC FIELDS 10 V/M 80...2000 MHZ EN/IEC 61000-4-3-ELECTROSTATIC DISCHARGE IMMUNITY TEST 8 KV AIR, 4 KV CONTACT EN/IEC 61000-4-2
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=349104362&lang=en-us
UPC 785901877547
GTIN 03389119617925
Item Type Electronic pressure sensors
Operating Temperature -25-70 A Degrees C
