Panduit®

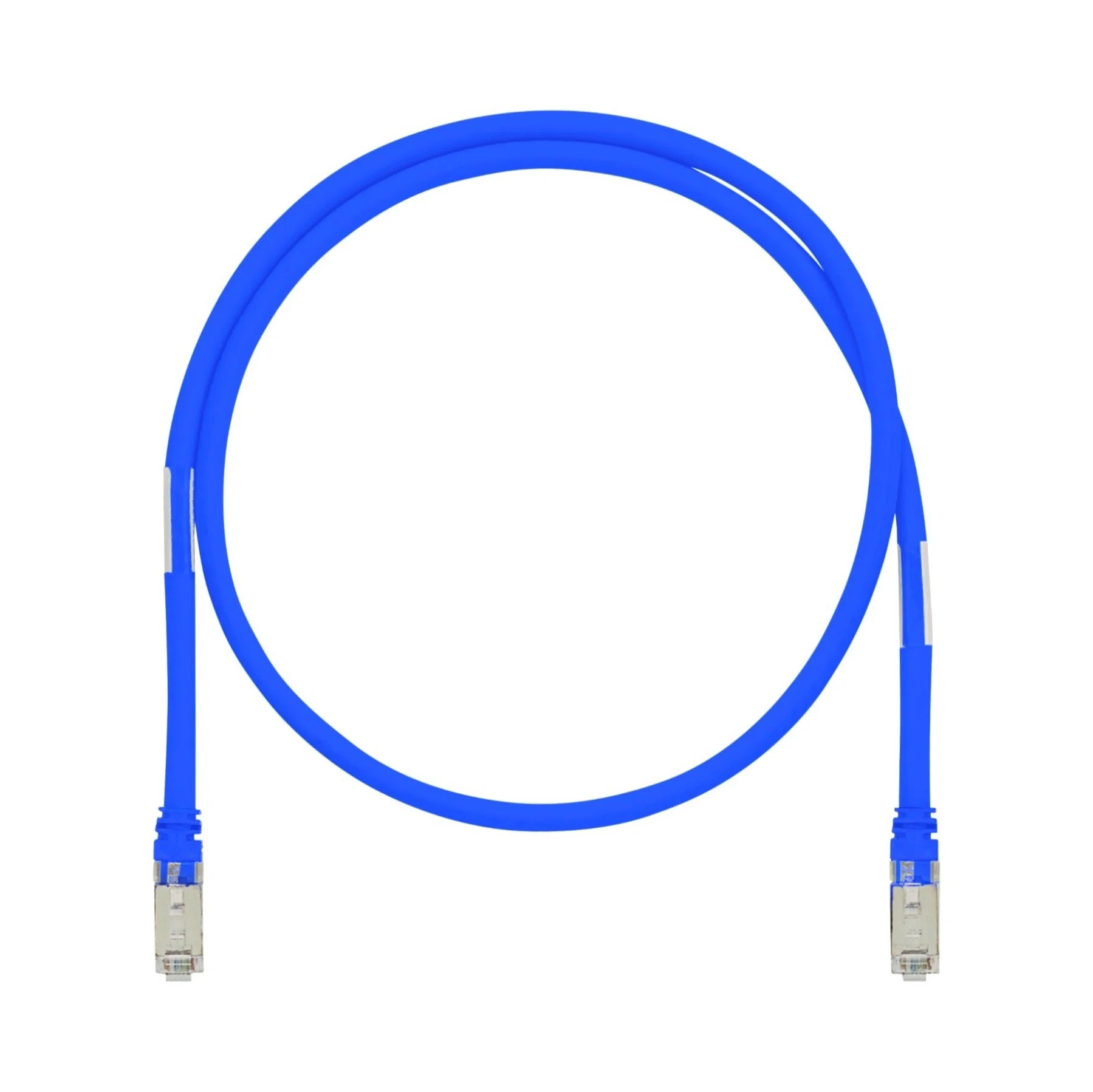

ISTPHCH0.6MBU IndustrialNet Flame-Retardant Patch Cord With 7.2 mm Cable Jacket, Cat 5e, 24 AWG Shielded Twisted 4-Pair SF/UTP Stranded Copper Conductor, 4-Pair RJ45 T568B 8-Position Modular Plug Connector, 0.6 m L Cord

MFR:
Panduit
MFR #:
ISTPHCH0.6MBU
UPC:
074983718702
Item #:
1123722

Availability

Location Available Qty
Available Available to Order
$47.17 each

Industrial Patch Cords shall be constructed of Category 5e, industrial grade, 24 AWG stranded, twisted 4-pair shielded SF/UTP cable with a flame retardant (CM) thermoplastic elastomer (TPE) jacket. Patch cord cable shall be offered in multiple colors and lengths for design flexibility. Each patch cord shall be pre-terminated to include Category 5e RJ45 shielded modular plugs on each end, with a black strain relief boot and wired according to the T568A standard. Each patch cord is designed to support high-flex applications and is rated for 600 V panel or on-machine applications when the space is shared with high voltage power cables.

Manuals and Documentation

Features

  • Robust 600 V rated construction - allows for patch runs between automation devices in industrial environments, rated for 600 V panel or on-machine applications when the space is shared with high voltage power cables, plug contact plated with 50 micro inches of gold
  • 100% performance tested for wire map, next and return loss - confidence that each patch cord delivers specified performance
  • Centered de-embedded plug - performs in center of ANSI/TIA-568-C.2 component range, ensuring interoperability and optimum performance
  • Integral pair manager - optimizes performance and consistency by reducing untwist at the plug
  • Flexible stranded cable - 24 AWG stranded copper cable with a nominal diameter of 7.2 mm (0.285 in) allows for high density applications and superior panel cable management
  • Identification provides - identification of performance level, length and quality control number for future traceability
  • Robust 600 V rated construction - allows for patch runs between automation devices in industrial environments, rated for 600 V panel or on-machine applications when the space is shared with high voltage power cables, plug contact plated with 50 micro inches of gold
  • 100% performance tested for wire map, next and return loss - confidence that each patch cord delivers specified performance
  • Centered de-embedded plug - performs in center of ANSI/TIA-568-C.2 component range, ensuring interoperability and optimum performance
  • Integral pair manager - optimizes performance and consistency by reducing untwist at the plug
  • Flexible stranded cable - 24 AWG stranded copper cable with a nominal diameter of 7.2 mm (0.285 in) allows for high density applications and superior panel cable management
  • Identification provides - identification of performance level, length and quality control number for future traceability
Manufacturer Part Number ISTPHCH0.6MBU
Brand Panduit®
Manufacturer Panduit
UPC 074983718702
EAN 0074983718702
Country Of Origin CR
Category Type Cat 5e
Conductor Size 24 AWG
Conductor Type Shielded Twisted 4-Pair SF/UTP Stranded Copper
Connector Type 4-Pair RJ45 T568B 8-Position Modular Plug
Cord Length 0.6 m
Jacket Color Blue
Jacket Material TPE
Temperature Rating -20 to 70 deg F
Type Flame-Retardant
Voltage Rating 600 V
Alternative Part Number 15570664 | 15570714
Manufacturer Item Status Active
Country USA/Canada
Standards Approvals ARRA Compliant | Buy American Act Compliant | RoHS 2011/65/EU/2015/863/EU | ANSI/TIA-568.2-C Cat 6A | ANSI/TIA-968-A | IEC 60603-7 | UL 1863 | IEEE 802.3AF/802.3AT | UL AWM Style 2463 | CSA Approved
Application 10BASE-T (Ethernet), 100Base-T (Fast Ethernet), 1000Base-T (Gigabit Ethernet), Industrial Ethernet, Ethernet/IP, Control Panel Deployments Featuring Power Source Voltages, High Flex Applications Robotic, C-Track and Industrial Applications
