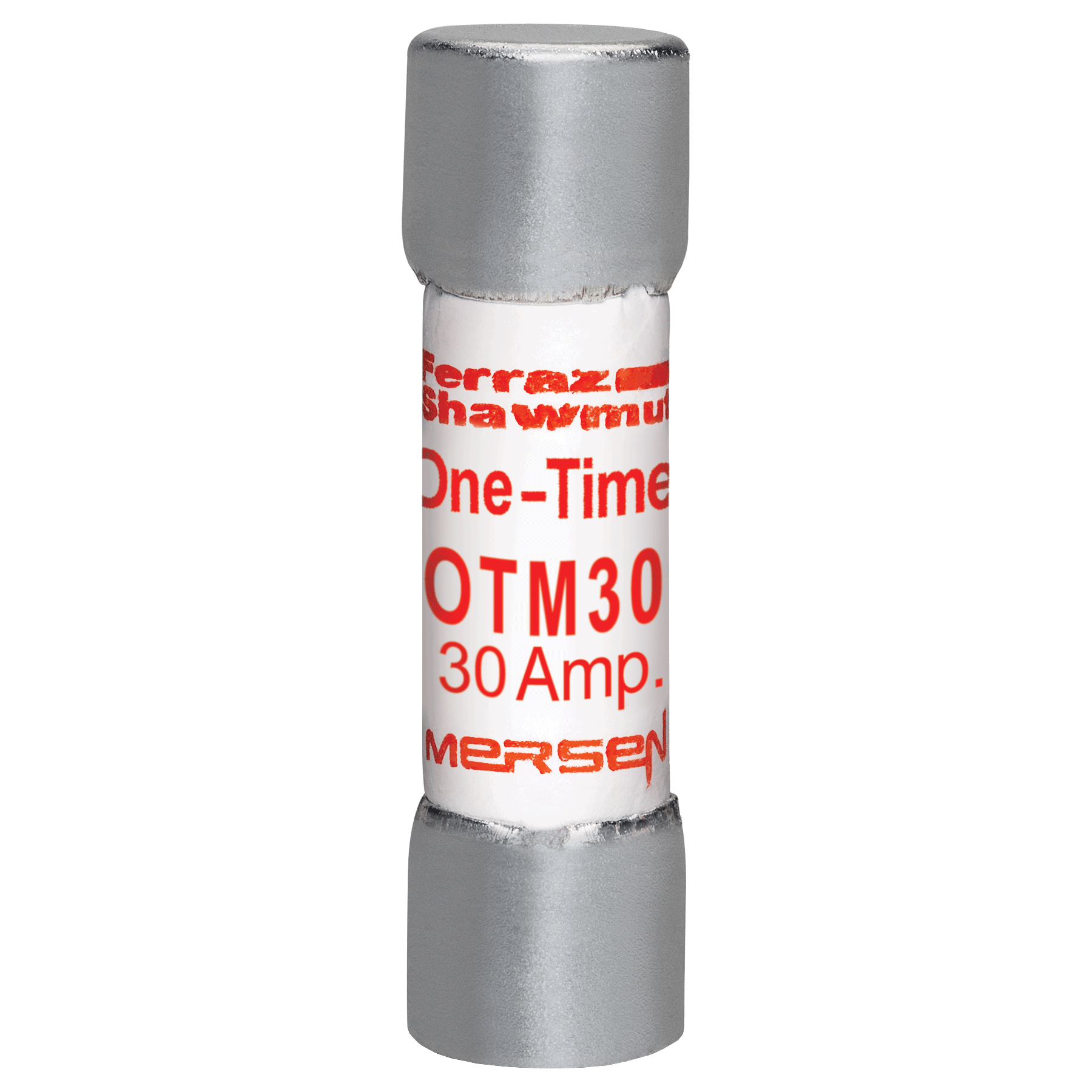

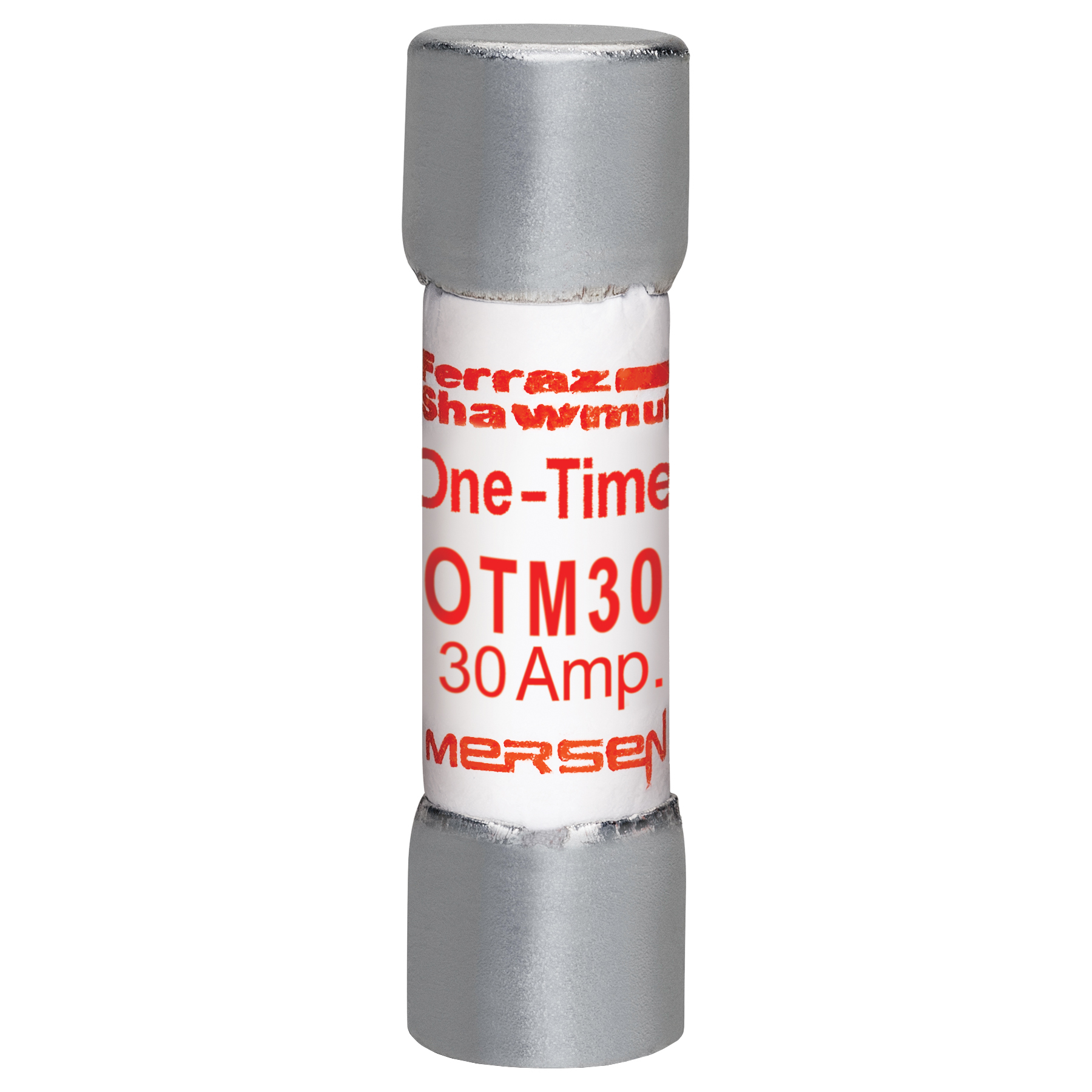

OTM30 Low Voltage Fast Acting Fuse, 30 A, 250 V AC, 10 kA, Class Midget, Cylindrical Body
- MFR:
- Mersen
- MFR #:
- OTM30
- UPC:
- 782001705152
- Item #:
- 112361
OTM30 Low Voltage Fast Acting Fuse, 30 A, 250 V AC, 10 kA, Class Midget, Cylindrical Body
- MFR #:
- OTM30
- UPC:
- 782001705152
- Item #:
- 112361
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$15.45
each
Fuse OTM - Midget - Fast-Acting 250VAC 30A Ferrule Amp-Trap
Manuals and Documentation
| Catalog Number | OTM30 |
| Manufacturer | Mersen |
| Brand | Mersen |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 30 |
| Application | Supplemental protection of circuits up to 250VAC and 10kA |
| Connection | Ferrule |
| Interrupt Rating | 10 KA |
| Mounting | Clip |
| Special Features | Low cost and fully rated for economy without compromise Can be used with UltraSafe™ fuse holders 1 1/2" x 13/32" (10 mm x 38 mm) dimensions |
| Standard | UL Listed to standard 248-14, File E33925 CSA Certified to Standard C22.2 No. 248.14 |
| UPC | 782001705152 |
| GTIN | 00782001705152 |
| Item Type | Midget Fuses |
| Size | 1.5 x 0.41 |
| Voltage Rating | 250 |
