HX-250-2-WT-4 PermaSleeve 1-Sided Printable Heat Shrink Wire Marker Sleeve, 12 to 8 AWG Wire, 1/2 in W, B-7642 Polyolefin
- MFR:
- Brady
- MFR #:
- HX-250-2-WT-4
- UPC:
- 662820818021
- Item #:
- 1122174
HX-250-2-WT-4 PermaSleeve 1-Sided Printable Heat Shrink Wire Marker Sleeve, 12 to 8 AWG Wire, 1/2 in W, B-7642 Polyolefin
- MFR #:
- HX-250-2-WT-4
- UPC:
- 662820818021
- Item #:
- 1122174
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$1,727.87
each

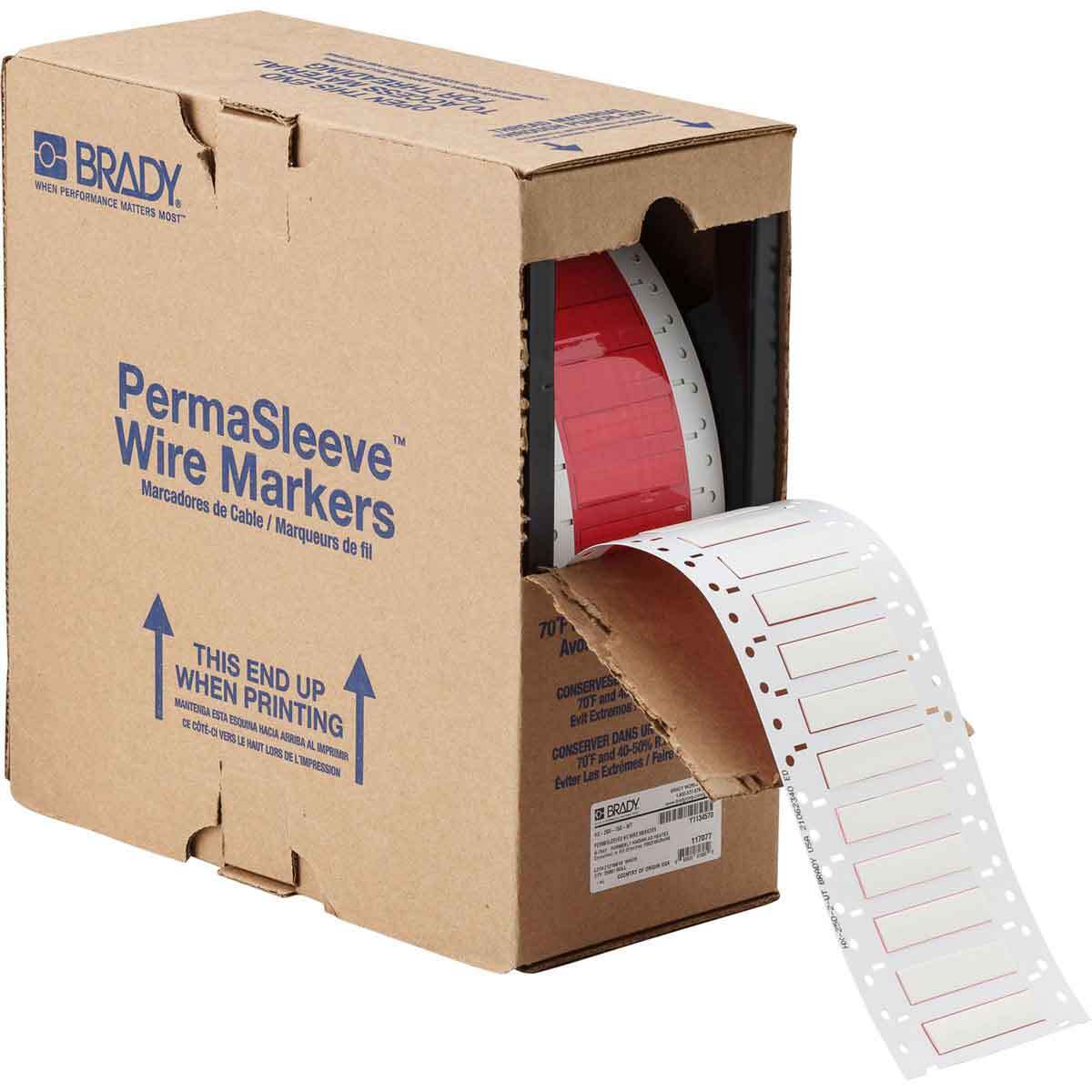

PermaSleeve HX Heat Shrink Wire Marking Sleeves, 0.25 Dia x 0.5 W, White, Roll of 4000
Manuals and Documentation
Features
- Heat-Shrink PermaSleeve HX Polyolefin (B-7642) Wire Marking Sleeves are 2:1 heat shrinkable, high-temperature rated, highly flame retardant and very flexible.
| Catalog Number | HX-250-2-WT-4 |
| Manufacturer | Brady |
| Brand | Brady |
| Sub Brand | PermaSleeve |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Electrical Labeling;Wire and Cable Labeling |
| Finish | Matte |
| Legend Color | White |
| Material | Heat-shrink Polyolefin |
| Number of Markers | 4000 |
| Special Features | Heat Shrink |
| Standard | ASTM D 570;ASTM D 638;ASTM D 792;ASTM D 876;ASTM D 882;ASTM G 21;Halogen Free (DIN VDE 0472 Part 815);MIL-STD-202;SAE-AMS-DTL-23053;SAE-AMS-STD-104 Class 1;SAE-AS-81531;UL Recognized;VW-1 |
| UPC | 662820818021 |
| GTIN | 00662820818021 |
| Item Type | Sleeve |

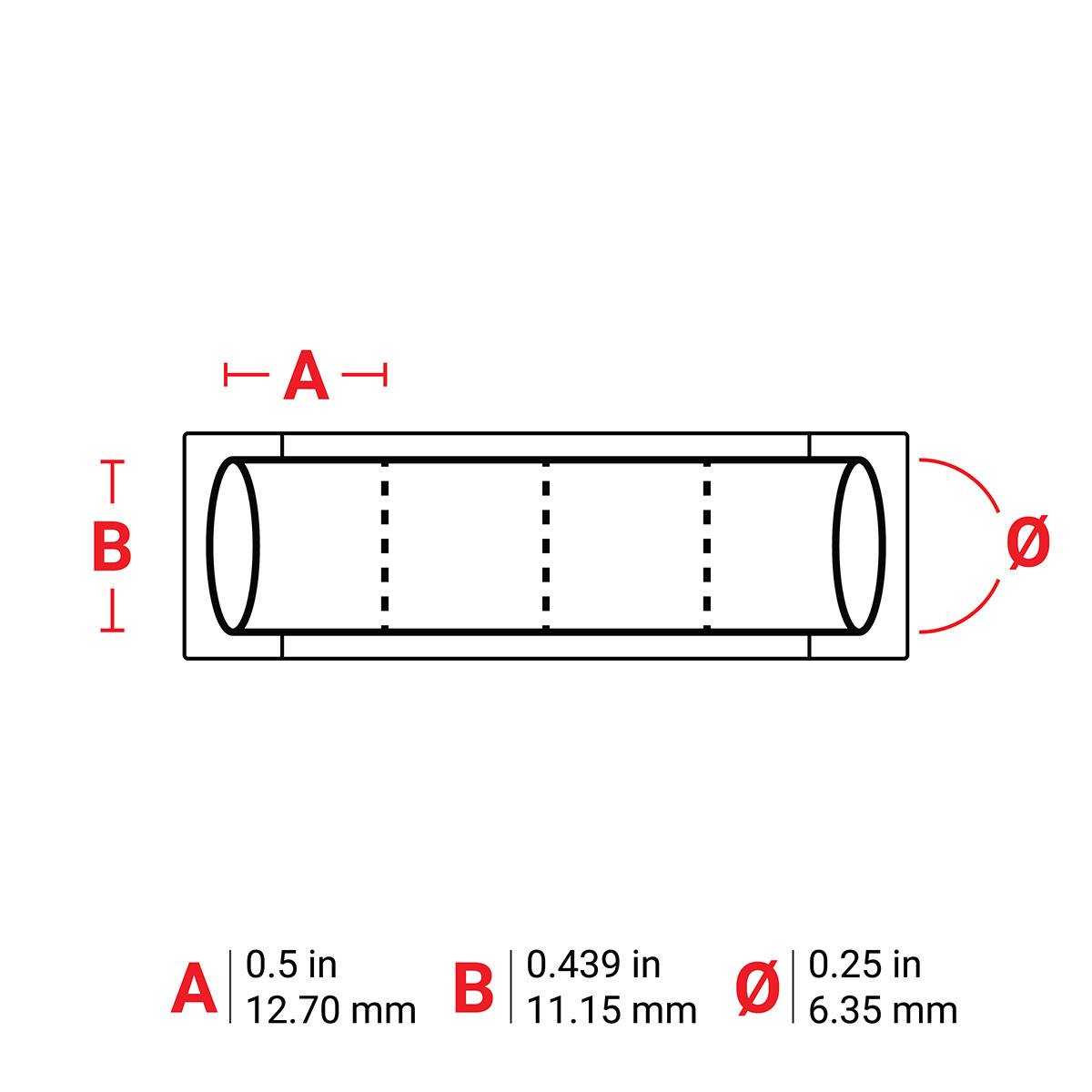

| Width | 0.5 |
| Width UOM | Inch |
| Height | 0.439 in |
| Diameter | 0.25 IN |
| Size | 0.439 in H x 0.5 in W |
| Temperature Range | -40 Degrees F - 248 Degrees F |
| Wire Size | 0.25 in Dia x 0.5 in W |
