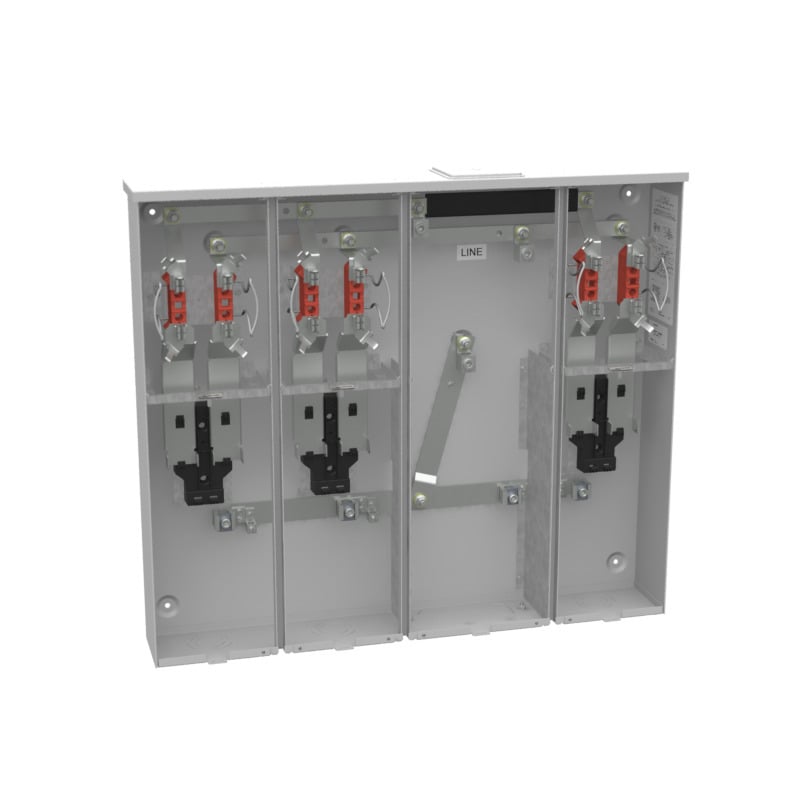

U5903-X-KK-K1-PED 4 Term, Ringless, Large Closing Plate, Horn Bypass, 3 Position, 3-125 Amp, Main Breaker Provision, Single Connector, 6-350 kcmil, Pedestal Mount Provision, 22 kAIC
- MFR:
- Milbank
- MFR #:
- U5903-X-KK-K1-PED
- UPC:
- 784572631670
- Item #:
- 1119279
U5903-X-KK-K1-PED 4 Term, Ringless, Large Closing Plate, Horn Bypass, 3 Position, 3-125 Amp, Main Breaker Provision, Single Connector, 6-350 kcmil, Pedestal Mount Provision, 22 kAIC
- MFR #:
- U5903-X-KK-K1-PED
- UPC:
- 784572631670
- Item #:
- 1119279
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$1,764.97
each
| Catalog Number | U5903-X-KK-K1-PED |
| Manufacturer | Milbank |
| Brand | Milbank |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Meter Socket With Main |
| Bypass Type | Horn |
| Cable Entry | Overhead or Underground |
| Enclosure | G90 Galvanized Steel with Powder Coat Finish |
| Frequency Rating | 60 Hertz |
| Insulation | Glass Polyester |
| Mounting | Surface |
| Number of Jaws | 4 Terminal |
| Phase | 1 |
| Standard | UL Listed;Type 3R |
| UPC | 784572631670 |
| GTIN | 00784572631670 |
| Item Type | Ringless Meter Socket |
| Size | 5.125L x 34.563W x 30H |
| Voltage Rating | Up to 240 Volts Alternating Current |
