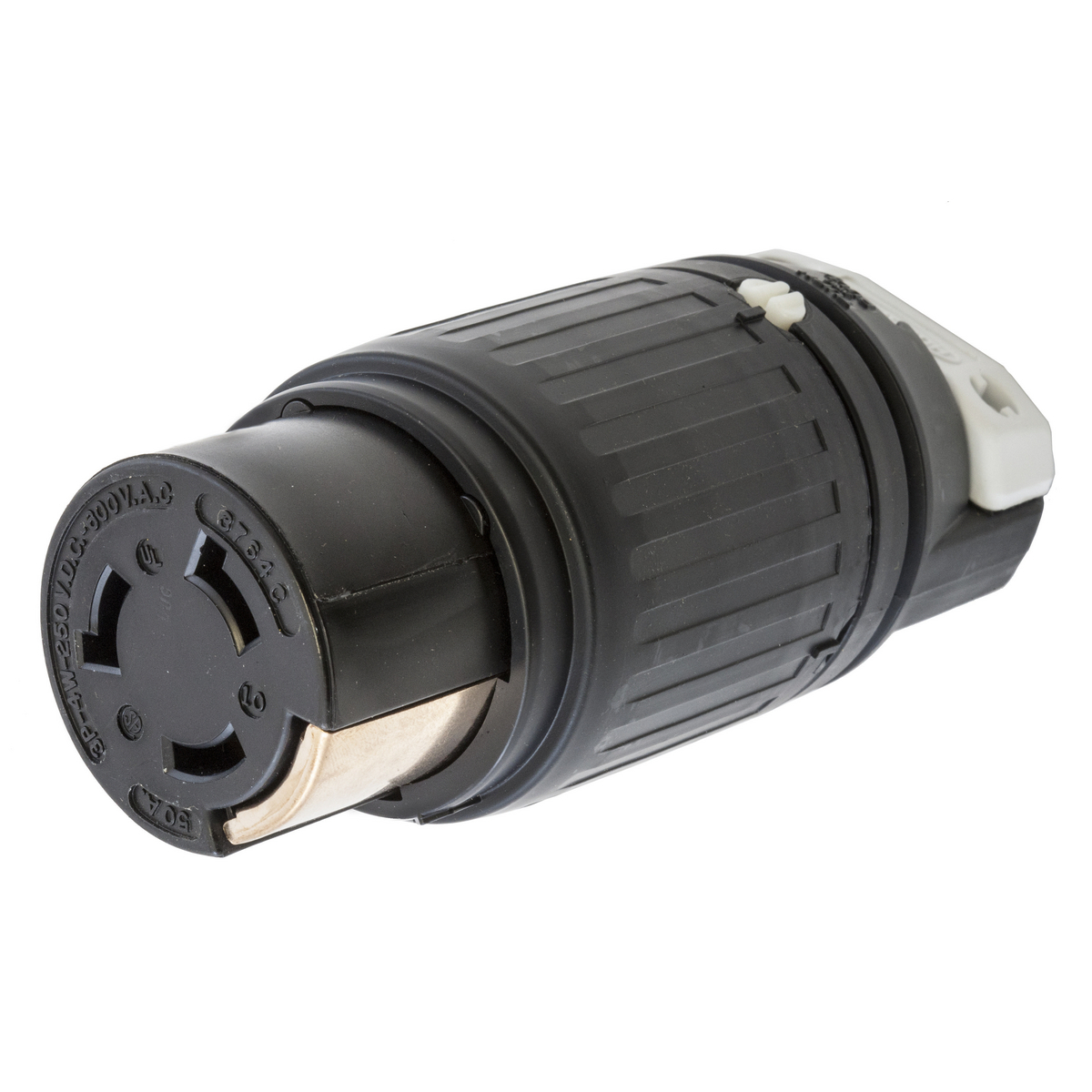

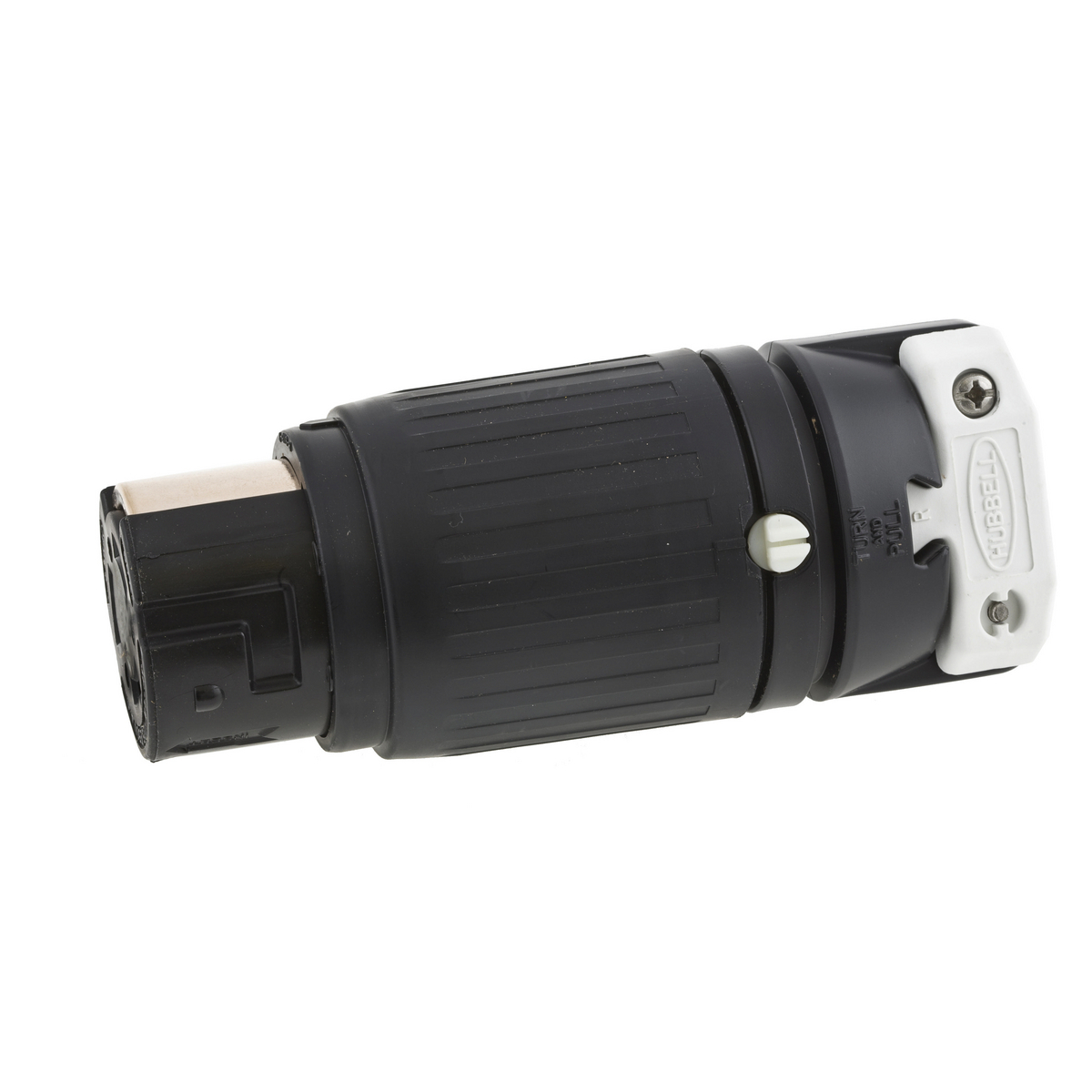

HBL3764C Grounding Heavy Duty Cord Mount Locking Connector, 600 V AC/250 V DC, 50 A, 3 Poles, 4 Wires, Black/White

MFR:
Hubbell Wiring Device-Kellems
MFR #:
HBL3764C
UPC:
783585236421
Item #:
111774

Availability

Location Available Qty
Available Available to Order
$270.98 each

Hubbells 50 amp Twist-Lock devices feature a heavy duty design built for heavy duty applications. These Hubbell 50 amp Twist-Lock plugs and connector bodies are built to go where you need power, even in some of the harshest environments. On the outside, 50 amp plugs and connectors are made of super tough nylon for better impact resistance. On the plug, the stainless steel shroud not only provides protection and durability, but safety as well. Thats because the rigid construction restricts distortion, thus minimizing the possibility of mating incorrect devices.On the inside are the kinds of features that separate Hubbell from all the rest. The cord grip has been designed with offset gripping jaws to securely hold the conductors not just the cord jacket. Hubbells box terminals speed wiring and provide a superior termination. The plugs thermoplastic polyester interior provides excellent heat resistance without compromising strength. In all, its the combination of function and performance that Hubbell demands of all its products. That is why we will never add a feature that compromises performance.

Manuals and Documentation
Catalog Number HBL3764C
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin Puerto Rico
Made in USA No
Amperage Rating 50
Application Heavy Duty Industrial
Color Black; White
Conductor Range #6AWG
Connection Pressure Screw Terminal
Insulation Insulated Body
Material Nylon
Mounting Cord
Number of Conductors 4-Wire Non-Grounding
Number of Poles 3
Special Features Standard Product
Standard Certified to CSA C22.2 No.42;Listed to UL 498
UPC 783585236421
GTIN 00783585236421
Item Type Connector Body
Size 2.59 in x 2.59 in x 6.50 in
Environmental Conditions Indoor Dry Unless Protected By Additional Means
Temperature Rating Maximum Continuous: 75 Degrees C; Minimum Continuous: -40 Degrees C w/o impact, -25 Degrees with impact.
Voltage Rating 250 VDC/600
Cross Reference Products 3764C
