Telemecanique

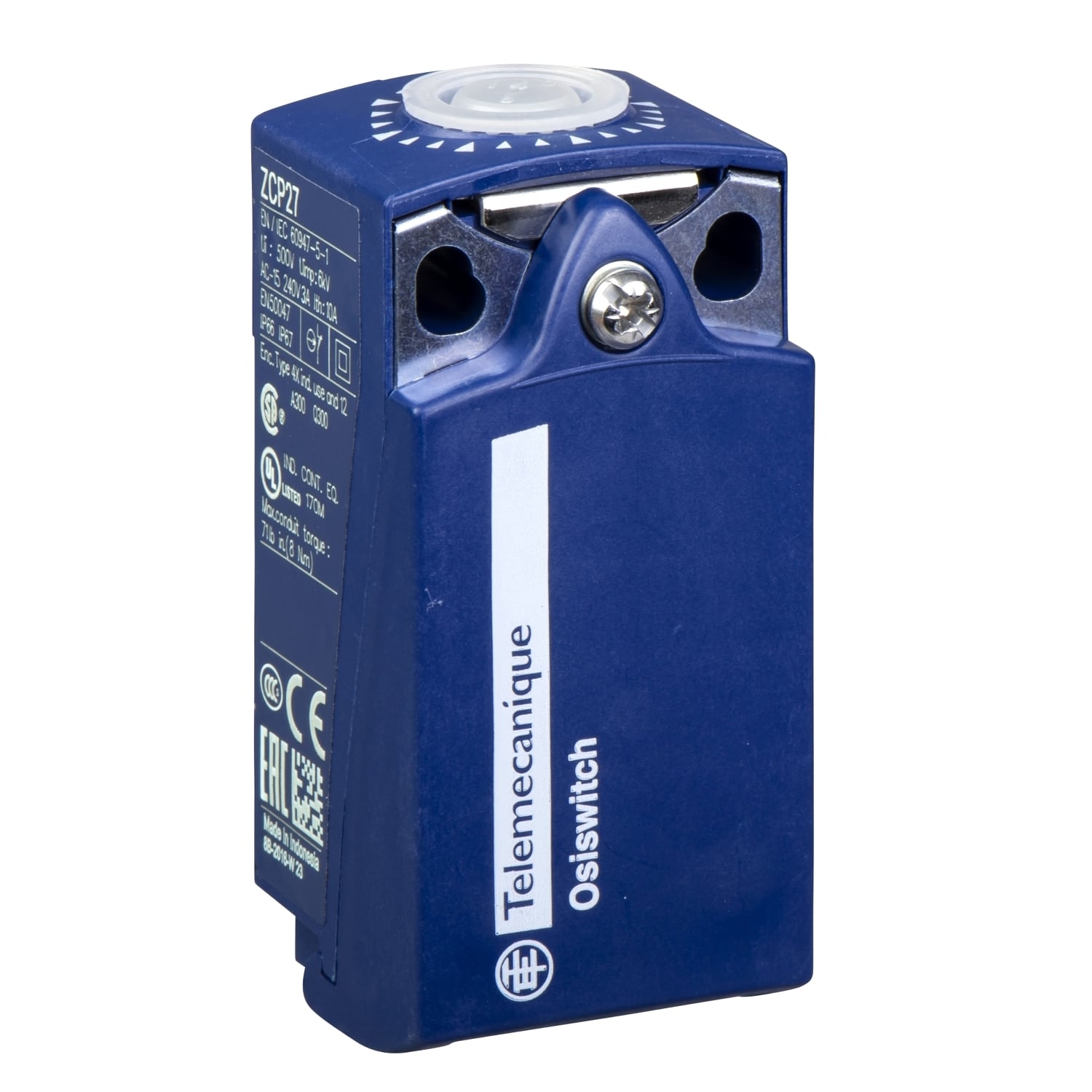

ZCP27 OsiSense 2-Pole Fixed Limit Switch Body With Positive Opening, 2NC Contact, For Use With XCKP Standard Compact Limit Switch, 1.5 A at 240 V AC, 0.1 A at 250 V DC Contact

MFR:
Telemecanique Sensors
MFR #:
ZCP27
UPC:
785901531760
Item #:
111680

Availability

Location Available Qty
Available Available to Order
$80.12 each

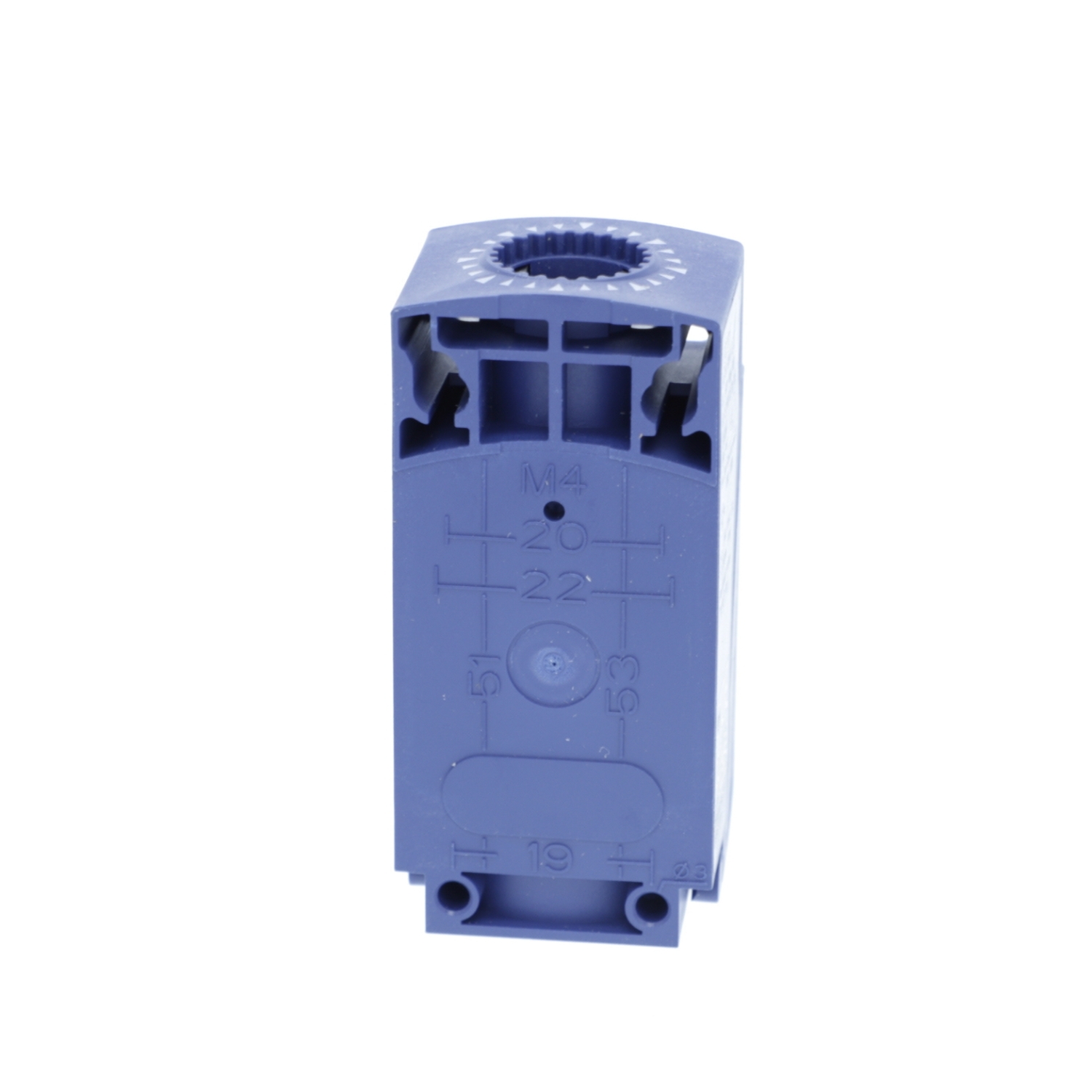

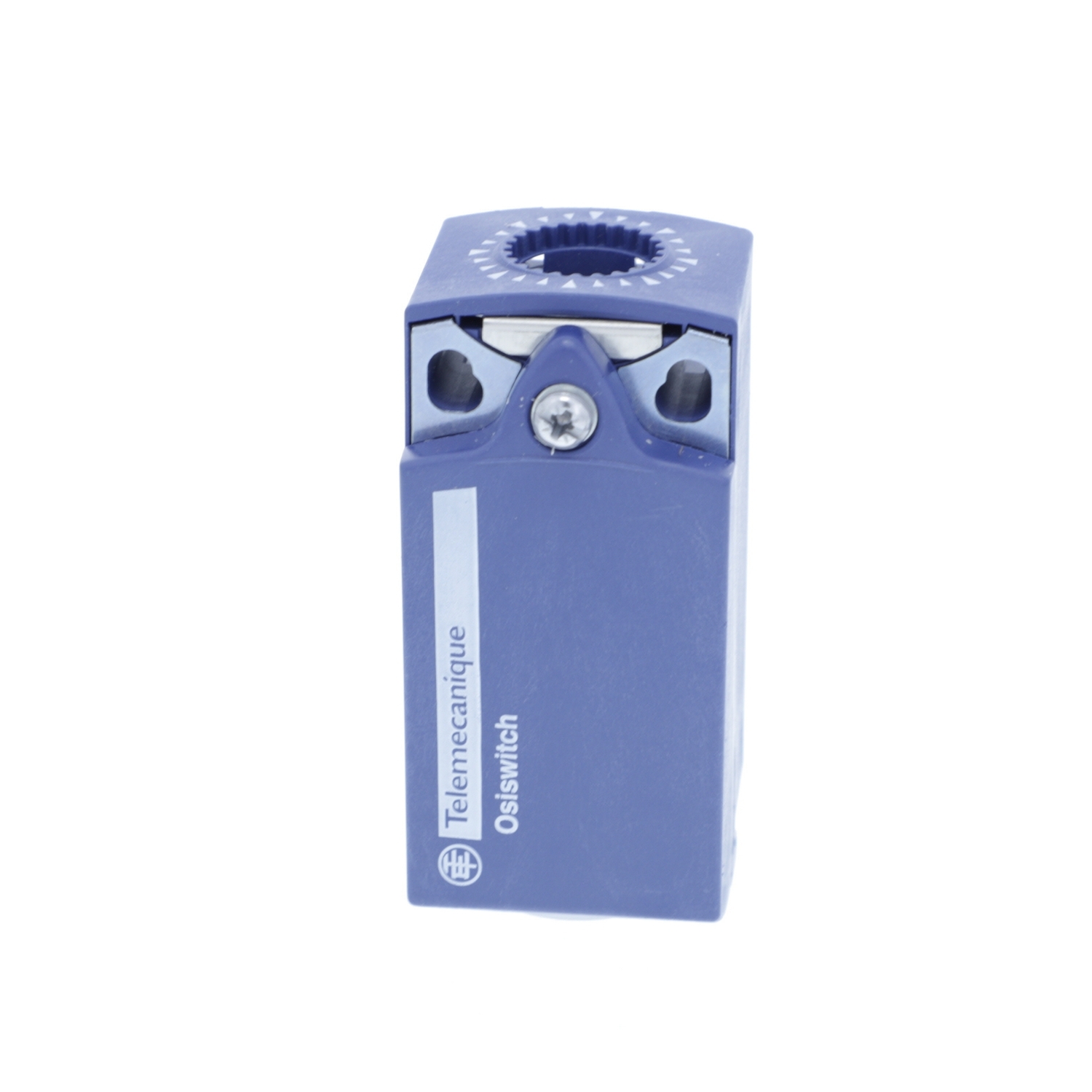

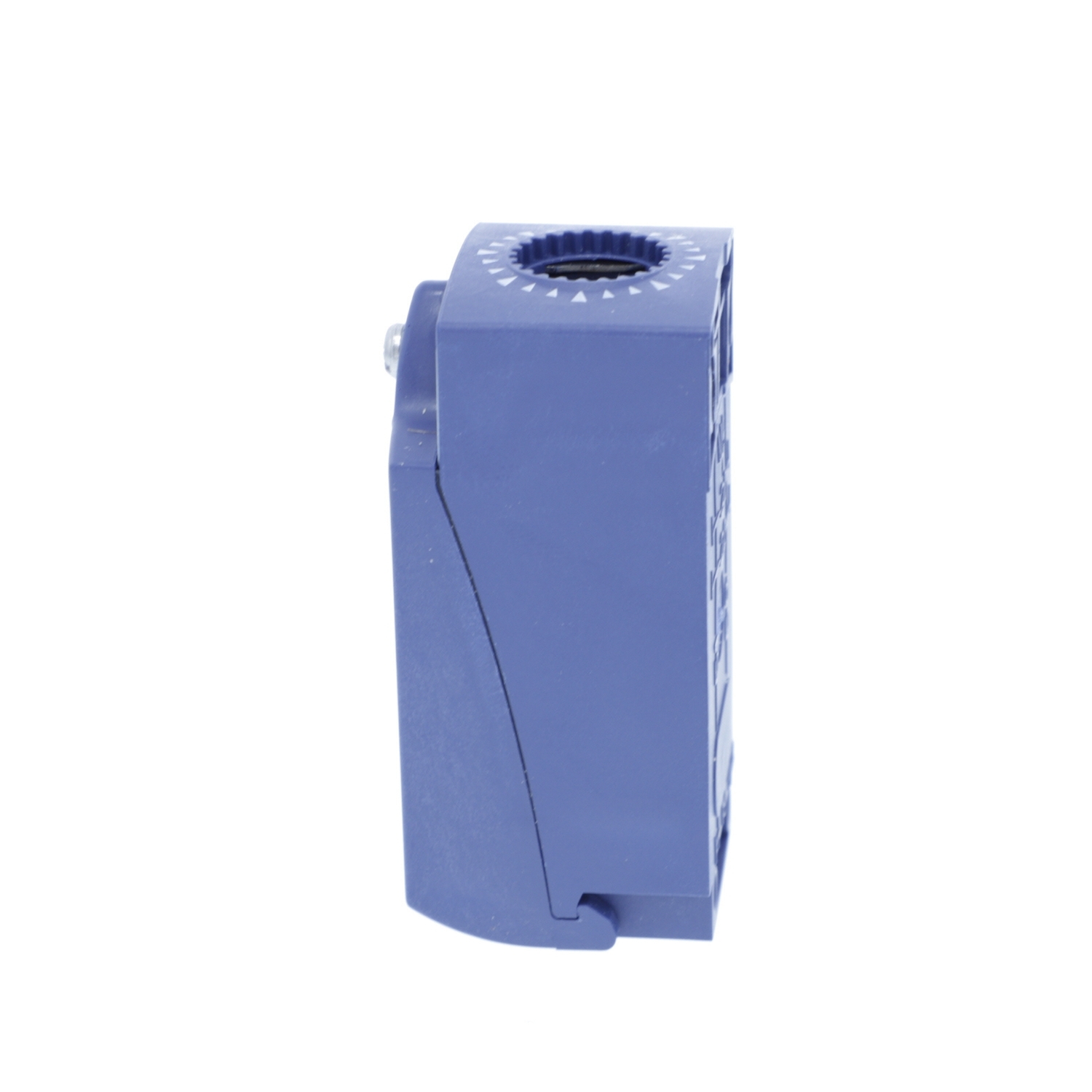

This ZCP body/contact assembly has standard contacts and a plastic body. It has 2 x NC simultaneous (slow break) contacts. It can be matched with any head, actuator or connector from the XCKD, XCKP and XCKT ranges.

Manuals and Documentation
Catalog Number ZCP27
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Indonesia
Made in USA No
Action Slow-break, simultaneous
Amperage Rating 10
Application XCKP
Connection Screw-clamp terminals 1 x 0.5...2 x 2.5 mm²
Contact Configuration 2 NC
Number of Poles 2
Operating Cycles 5000000 CYCLES, DC-13 120 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 24 V, 13 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 48 V, 9 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Special Features FIXED
Standard IEC, UL LISTED, CSA
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=880400&lang=en-us
UPC 785901531760
GTIN 03389110181159
Item Type Limit switch body
Size 1.18
Operating Temperature -25-70 A Degrees C
