Hubbell Wiring Device - Kellems

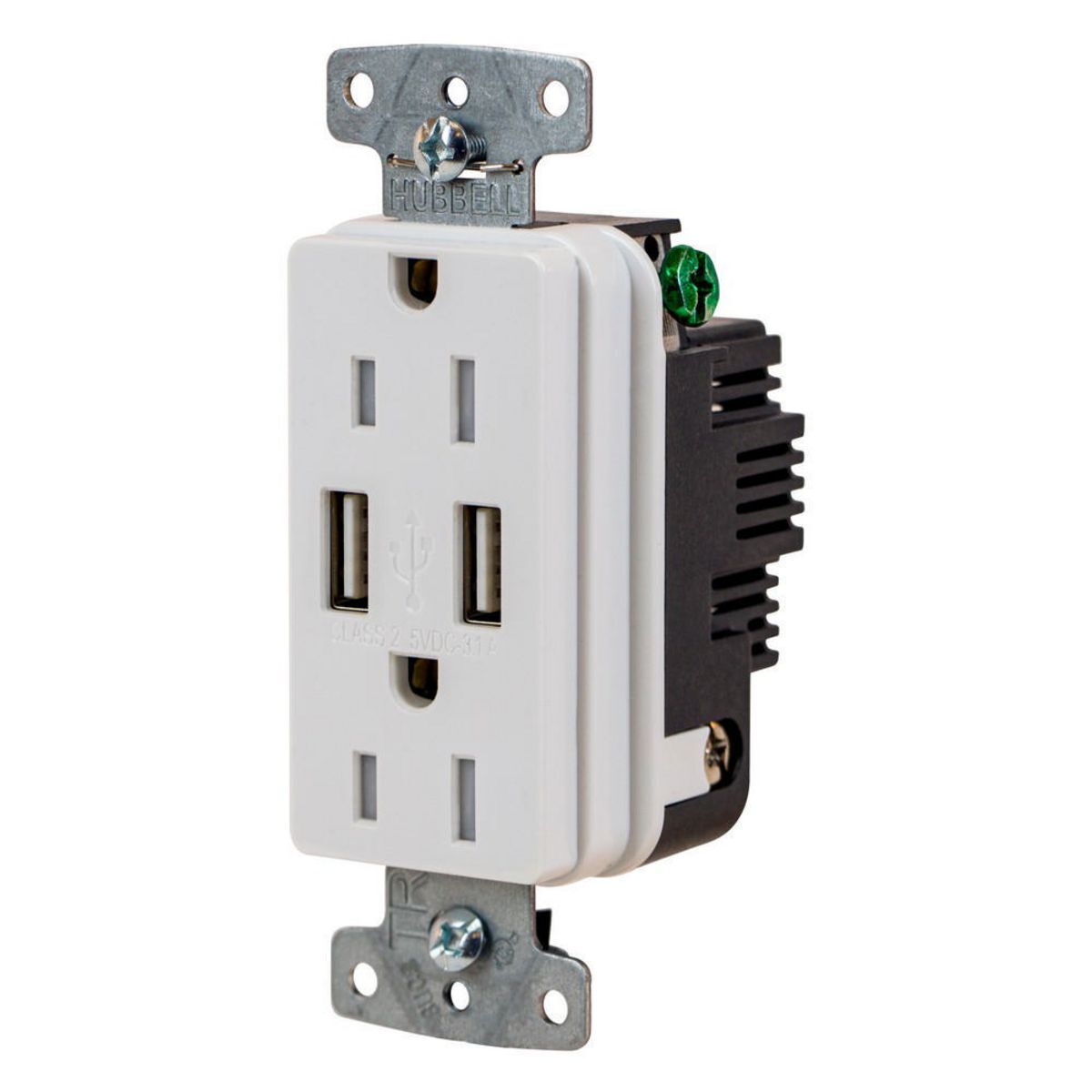

USB15AW Duplex Grounding High Power Standard Tamper-Resistant USB Charger Receptacle, 125 V AC 15 A 1815 W, 1 Phase, 2 Poles, 3 Wires, White

MFR:
Hubbell Wiring Device-Kellems
MFR #:
USB15AW
UPC:
883778309878
Item #:
1114492

Availability

Location Available Qty
Available Available to Order
$41.78 each

More ways to charge faster with Hubbells line of USB chargers, available in Type C, Type A&C or the legacy Type A, all with a USB power output from 2 to 5 amps. Hubbells USB charger duplex receptacle provides both USB and electrical power in a standard single gang opening. Designed to provide maximum charging for portable electronics, the USB ports are capable of charging two tablets simultaneously. The 4 port charger outlets feature a USB port door, which enables power when open. When closed, all power is switched off. This eliminates all current flow for a zero no-load draw. Buildings looking to provide 100% green efficiency in power delivery will maximize LEED and energy efficiency design.

Manuals and Documentation
Catalog Number USB15AW
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin China
Made in USA No
Amperage Rating 15
Application USB Charging/Power
Color White
Connection Back Wire Screws
Material Composite
NEMA Rating 5
Number of Poles 2
Number of Wires 3-Wire
Phase 1
Special Features 3.1 A 5V DC, Style A
Standard cULus Listed to UL498, UL1310
UPC 883778309878
GTIN 00883778309878
Item Type Two Type A USB Ports
Size Standard Sized Product
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Temperature Rating Maximum continuous 75 Degrees C, minimum -40 Degrees C (w/o impact)
Voltage Rating 125
Wattage 1,815 W
Wire Size #14-10 AWG
Cross Reference Products TR7765W-BOX, TR7765W-BOX
