HPS

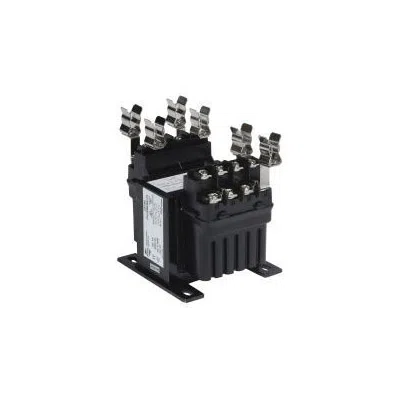

PH350MLI-FK Imperator Dry Type Encapsulated Machine Tool Rated Molded Control Transformer, 208/230/460 V AC Primary, 24/115 VAC Secondary, 350 VA Power Rating, 50/60 Hz, 1 Phase

MFR:
Hammond Power Solutions
MFR #:
PH350MLI-FK
UPC:
803423081874
Item #:
1113961

Availability

Location Available Qty
Available Available to Order
$519.01 each

The HPS Imperator® series of machine tool rated industrial control transformers are specifically designed to meet high inrush industrial applications where electromagnetic components such as relay, solenoids and magnetic motor starters are used. With 11 standard voltage groups, a VA range from 50 VA to 1500 VA and available with standard secondary and optional primary fuse kits, the HPS Imperator® series provides the perfect solution for any application. The HPS Imperator® unique terminal block design allows for the quick and easy installation of standard secondary or optional primary 13/32 x 1-1/2 in midget/Type CC fuse clips on every unit. This is the simplest and most inexpensive fusing installation provided on any industrial control transformer in the market today.

Manuals and Documentation

Features

  • 600 VAC Class, machine tool rated industrial control transformers
  • Standard SEMS washers supplied on all units excluding PH750PH, PH1000PG, PH750MLI, PH1000MLI
  • Termination connection numbers molded into the terminal block for simple identification
  • SEMS washer allows for easy connection of supply or load wires with or without terminal connectors
  • Custom injection molded coil cover with its unique "fin shaped" design combines superior cooling properties with a clean, bold look
  • Potted control transformer for high inrush applications powering coils
Manufacturer Part Number PH350MLI-FK
Brand HPS
Manufacturer Hammond Power Solutions
UPC 803423081874
Country Of Origin CN
Dimensions 4.5 in W x 5.56 in D x 4.44 in H
Enclosure Type Open/Core and Coil
Mounting Type Panel
Series Imperator®
Temperature Rating 30 to 40 deg C
Type Dry Type Encapsulated Machine Tool Rated Molded
Alternative Part Number 10061074
Manufacturer Item Status Discontinued
Country USA/Canada
Warranty Lifetime
Standards Approvals RoHS Compliant | UL/cULus Listed | CSA/CE Marking | REACH Compliant
Application Industrial, Automation, Panel shops, Machines, Solenoids, Timers and Control Applications
Connection Type Terminal Block
Frequency Rating 50/60 Hz
Insulation 130 deg C
Maximum Amperage Rating 3.04/14.58 A
Phase 1
Power Rating 350
Primary Voltage 208/230/460 V AC
Secondary Voltage 24/115 V AC
