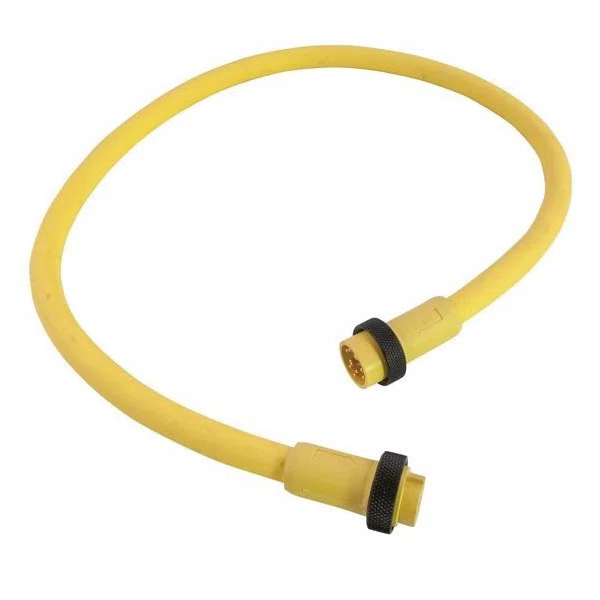

112G0060A Mini-Link Tuff-Link Cable Assembly, Straight Male x Female Connector, 6 ft L Cable, 12 Poles
- MFR:
- NSi Industries
- MFR #:
- 112G0060A
- UPC:
- 785411439174
- Item #:
- 1113629
112G0060A Mini-Link Tuff-Link Cable Assembly, Straight Male x Female Connector, 6 ft L Cable, 12 Poles
- MFR #:
- 112G0060A
- UPC:
- 785411439174
- Item #:
- 1113629
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$379.50
each
Remke Mini-Link™ Tuff-Link™ Cable Assembly, Straight Male x Female Connector, Stranded/SOOW Cable, 6 ft Cable Length, Rubber Cable, 12 Pole, 600 V AC/DC, 5 A, Wire Pin Colors: Black/Black-White Tracer/Blue/Blue-Black Tracer/Green/Green-Black Tracer/Orange/Orange-Black Tracer/Red/Red-Black Tracer/White/White-Black Tracer, IP67 IEC Rating, NEMA 6P
Manuals and Documentation
Features
- Nickel coated then gold plated contacts for enhanced corrosion resistance and conductivity
- Pins and contacts crimped on to wires assuring secure terminations
- Precision machined contacts for highly accurate tolerances
- Integral strain relief and plated coupling nuts
- Rubber for use in applications where flexibility and resistance to abusive environments thru a broad temperature range is important
- These connectors are ideally suited for applications where flexibility and resistance to stress, abuse or harsh environments is important
| Manufacturer Part Number | 112G0060A |
| Brand | Remke |
| Manufacturer | NSi Industries |
| UPC | 785411439174 |
| Country Of Origin | US |
| Amperage Rating | 5 A |
| Cable Type | Stranded/SOOW |
| Connector Type | Straight Male x Female |
| Voltage Rating | 600 V AC/DC |
| Alternative Part Number | 14257612 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Standards Approvals | RoHS Compliant | RoHS 2011/65/EU | cUL File No. E165657 | CSA File No. E165657 | UL Listed | SAE/IEC Specified |
| Application | Sensors on Conveyors, Automated Assembly Equipment, Packaging Equipment, Robotics Equipment, Bus Systems and Transportation Equipment Applications |
| Cable Length | 6 ft |
| Cable Material | Rubber |
| Iec Rating | IP67 |
| Nema Rating | NEMA 6P |
| Number Of Poles | 12 |
| Wire Pin Colors | Black/Black-White Tracer/Blue/Blue-Black Tracer/Green/Green-Black Tracer/Orange/Orange-Black Tracer/Red/Red-Black Tracer/White/White-Black Tracer |
