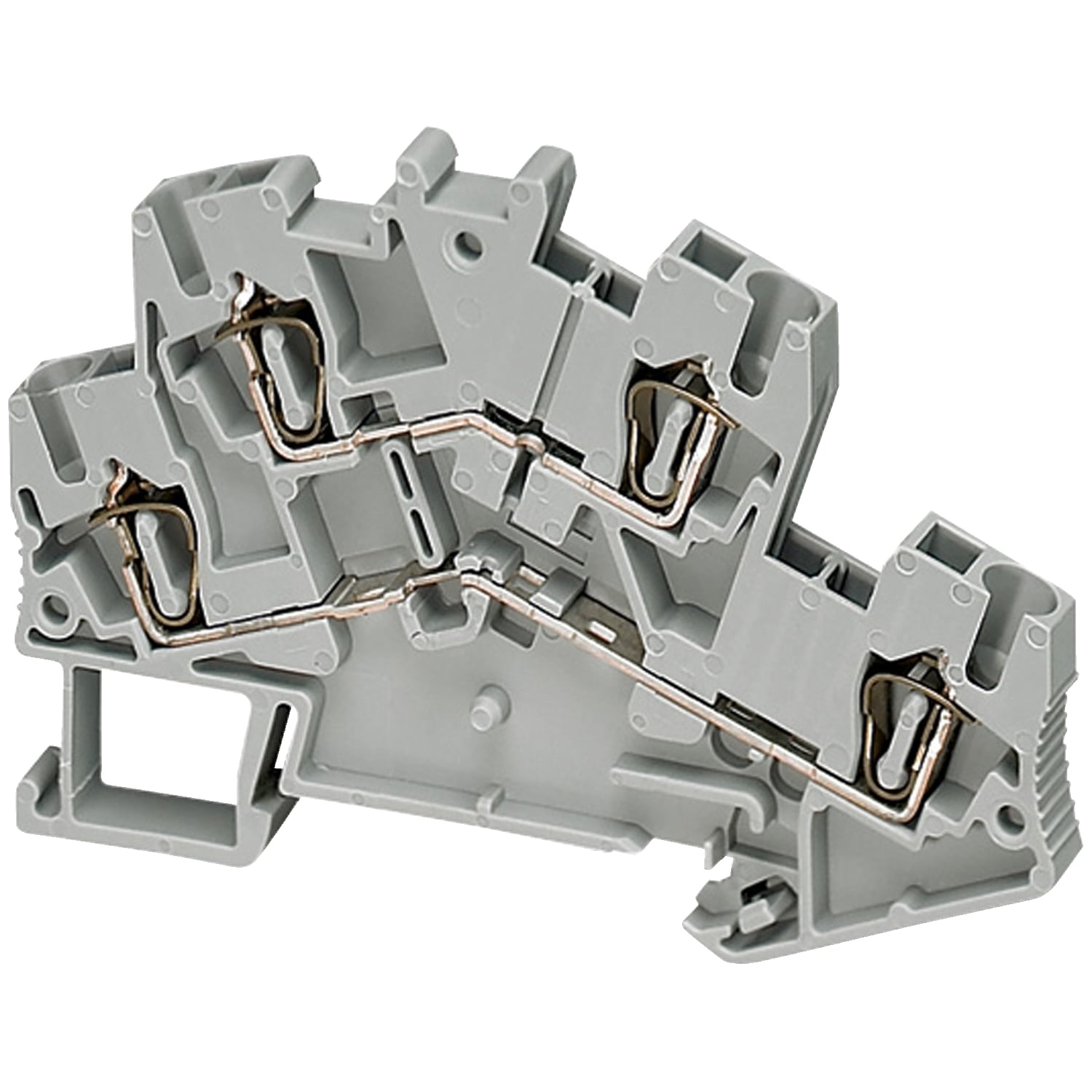

NSYTRR24D 2-Level 4-Point Terminal Block, 600 V AC, 20 A, 28 to 12 AWG Wire, 2 Poles, Clip-Fit Mount
- MFR:
- Schneider Electric
- MFR #:
- NSYTRR24D
- Item #:
- 1113617
NSYTRR24D 2-Level 4-Point Terminal Block, 600 V AC, 20 A, 28 to 12 AWG Wire, 2 Poles, Clip-Fit Mount
- MFR #:
- NSYTRR24D
- Item #:
- 1113617
Availability
| Location | Available Qty |
|---|---|
| Available | 16 ea |
Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 2.5 mm nominal cross section. The rated operational voltage is 600V conforming to CSA, 300V conforming to cURus and 500V conforming to EN/IEC 60947-7-1. The rated current is 22A conforming to EN/IEC 60947-7-1 and 20A conforming to CSA and cURus. It has grey surface treatment. Mounting by clip-on and top connection by double-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC).
Manuals and Documentation
| Catalog Number | NSYTRR24D |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Germany |
| Made in USA | No |
| Color | Gray |
| Connection | 1 x spring terminal upstream;1 x spring terminal downstream |
| Material | Polyamide 6/6: insulating case;copper alloy: connector and screw;copper alloy: commoning link;chromium-nickel steel: spring |
| Mounting | Clip |
| Standard | V0 0.8 mm UL 94 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=403761732&lang=en-us |
| GTIN | 03606480532627 |
| Item Type | Passthrough;Terminal block;Spacial enclosures |
