XS1M12KP340D OsiSense XS Fixed Cylindrical Proximity Sensor With Reverse Polarity Protection, Inductive, NPN/PNP Output, 1NO-1NC Contact, 10 to 36/12 to 24 V DC
- MFR:
- Telemecanique Sensors
- MFR #:
- XS1M12KP340D
- UPC:
- 785901931447
- Item #:
- 11129
XS1M12KP340D OsiSense XS Fixed Cylindrical Proximity Sensor With Reverse Polarity Protection, Inductive, NPN/PNP Output, 1NO-1NC Contact, 10 to 36/12 to 24 V DC
- MFR #:
- XS1M12KP340D
- UPC:
- 785901931447
- Item #:
- 11129
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$146.44
each

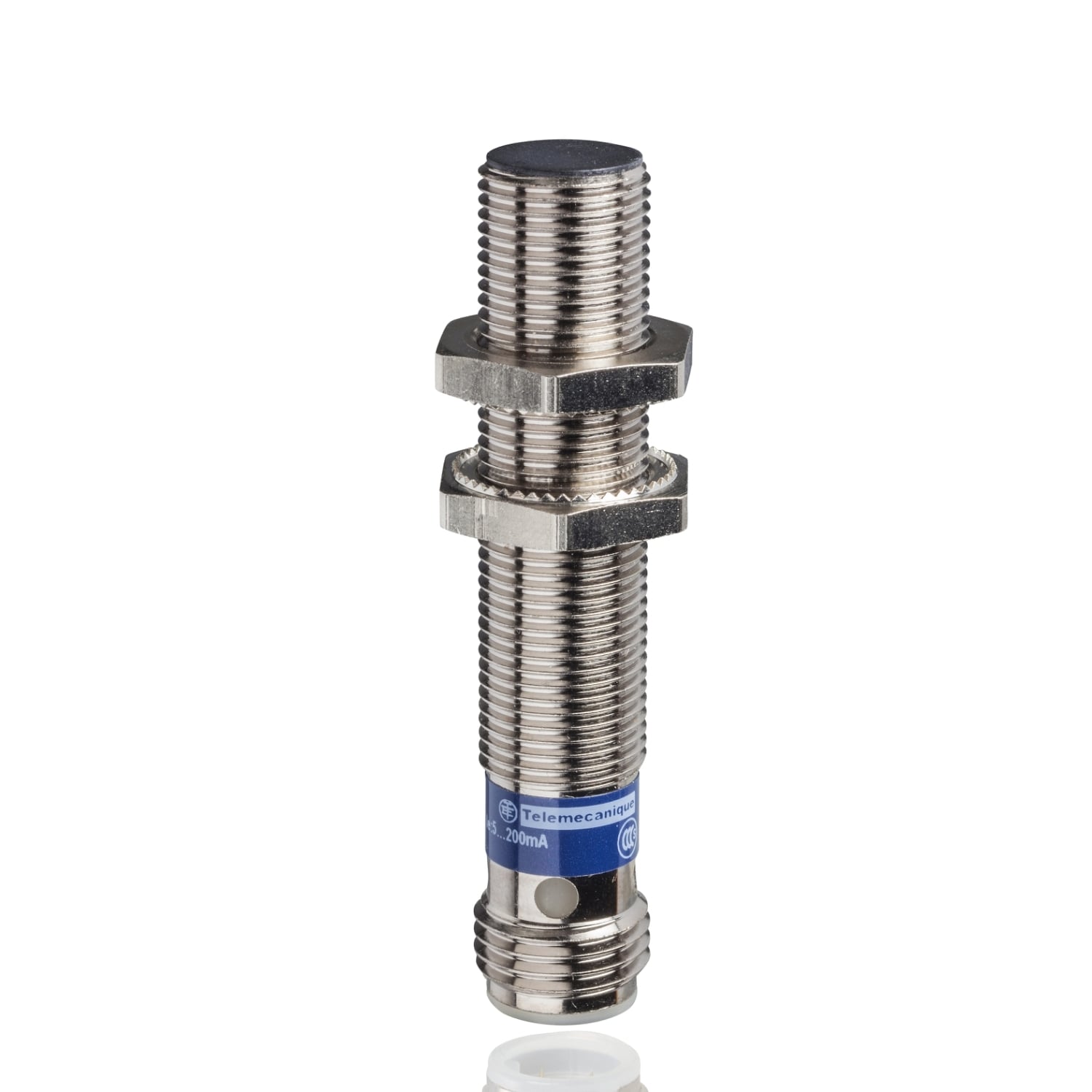

The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a cylindrical, flush mountable sensor. Diameter 12mm, threaded M12 x 1. It features a nickel plated brass case and a M12 conector. It has a sensing distance of 2mm Four-wire, DC supply, 12V to 24V, solid state PNP + NPN, NO/NC programmable output.
Manuals and Documentation
| Catalog Number | XS1M12KP340D |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | - |
| Connector | Male connector M12, 4 pins |
| Control Output | 1 NO OR 1 NC (PROGRAMMABLE) |
| Enclosure | Nickel Plated Brass |
| Indicator | Output state 1 LED yellow) |
| Material | Metal |
| Mounting | Flush |
| Sensing Range | 2 MM,> 0...0.1 IN (> 0...2.5 MM) |
| Sensor | 18 MM,61 MM,INDUCTIVE PROXIMITY SENSOR |
| Special Features | METAL |
| Standard | IP67 conforming to IEC 60529;CE |
| Supply Voltage | 12...24 V DC reverse polarity protection |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=866354&lang=en-us |
| UPC | 785901931447 |
| GTIN | 03389110515046 |
| Item Type | Inductive proximity sensor;Cylindrical M12 |
| Operating Temperature | -25-70 A Degrees C |
