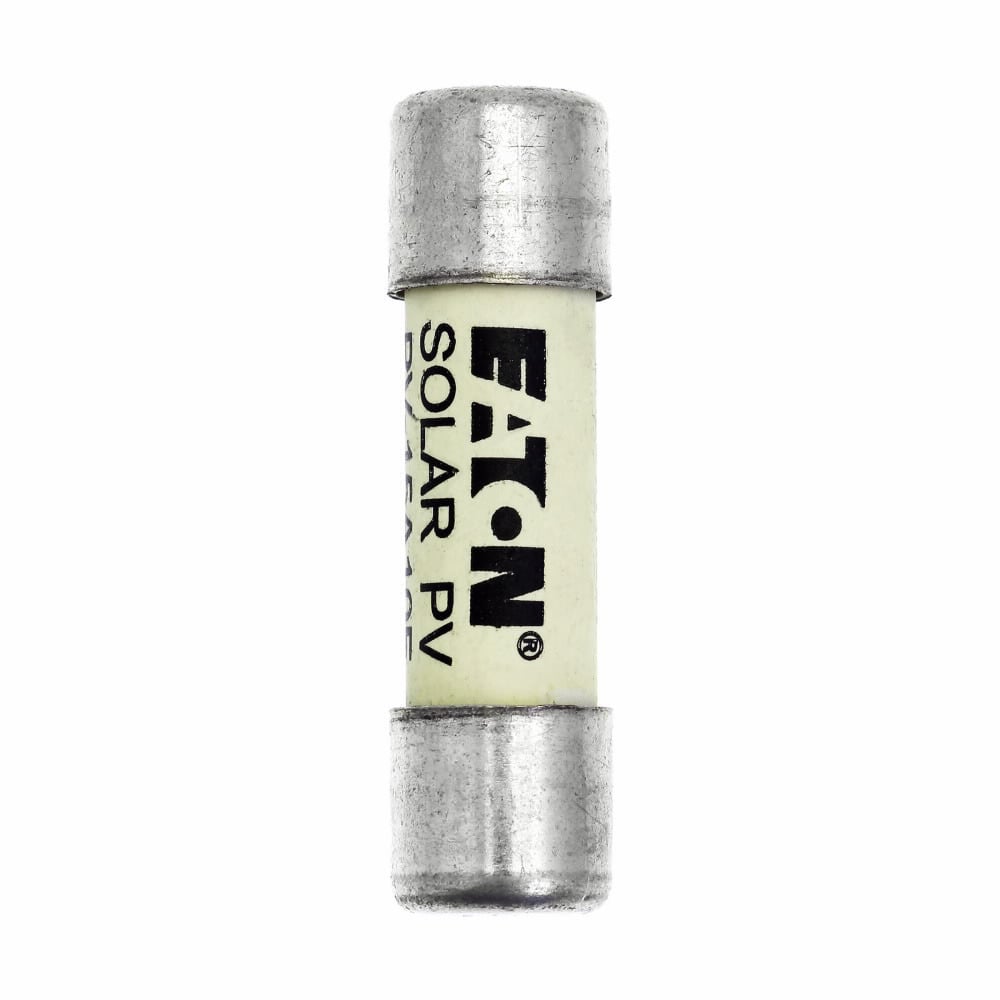

PV-15A10F PV Series High Speed Photovoltaic Fuse, 15 A, 1 kV DC, 50 kA Interrupt, Class: gPV, Cylindrical Body
- MFR:
- Eaton Bussmann
- MFR #:
- PV-15A10F
- UPC:
- 051712204040
- Item #:
- 110934
PV-15A10F PV Series High Speed Photovoltaic Fuse, 15 A, 1 kV DC, 50 kA Interrupt, Class: gPV, Cylindrical Body
- MFR #:
- PV-15A10F
- UPC:
- 051712204040
- Item #:
- 110934
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$93.62
each
Eaton's Bussmann series photovoltaic gPV solar fuses are specifically designed to protect DC system up to 1500 V d.c. They are suitable for the DC protection of solar panels, combiner boxes, recombiner units and battery storage.
Manuals and Documentation
| Catalog Number | PV-15A10F |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton Bussmann Series |
| Country of Origin | Multiple |
| Made in USA | No |
| Amperage Rating | 15 |
| Application | Generation - Renewable Energy - Alternative Energy|Generation - Renewable Energy - Solar|Generation - Renewable Energy - Storage Systems |
| Connection | Ferrule end x ferrule end |
| Interrupt Rating | 50 kAIC |
| Material | Ceramic |
| Special Features | Minimum interrupting rating 1.3 x In, Time constant: 1-3 ms |
| Standard | UL Listed ,IEC Rated ,CSA Certified ,UL Listed 61010-1 File E185559 ,UL 2579 ,CCC Marked,CE Marked,RoHS Compliant |
| UPC | 051712204040 |
| GTIN | 00051712204040 |
| Item Type | High speed photovoltaic fuse |
| Weight UOM | Grams |
| Size | 10.00 mm Diameter X 38.00 mm Length |
| Voltage Rating | 1000 Vdc |
