Discontinued
Square D

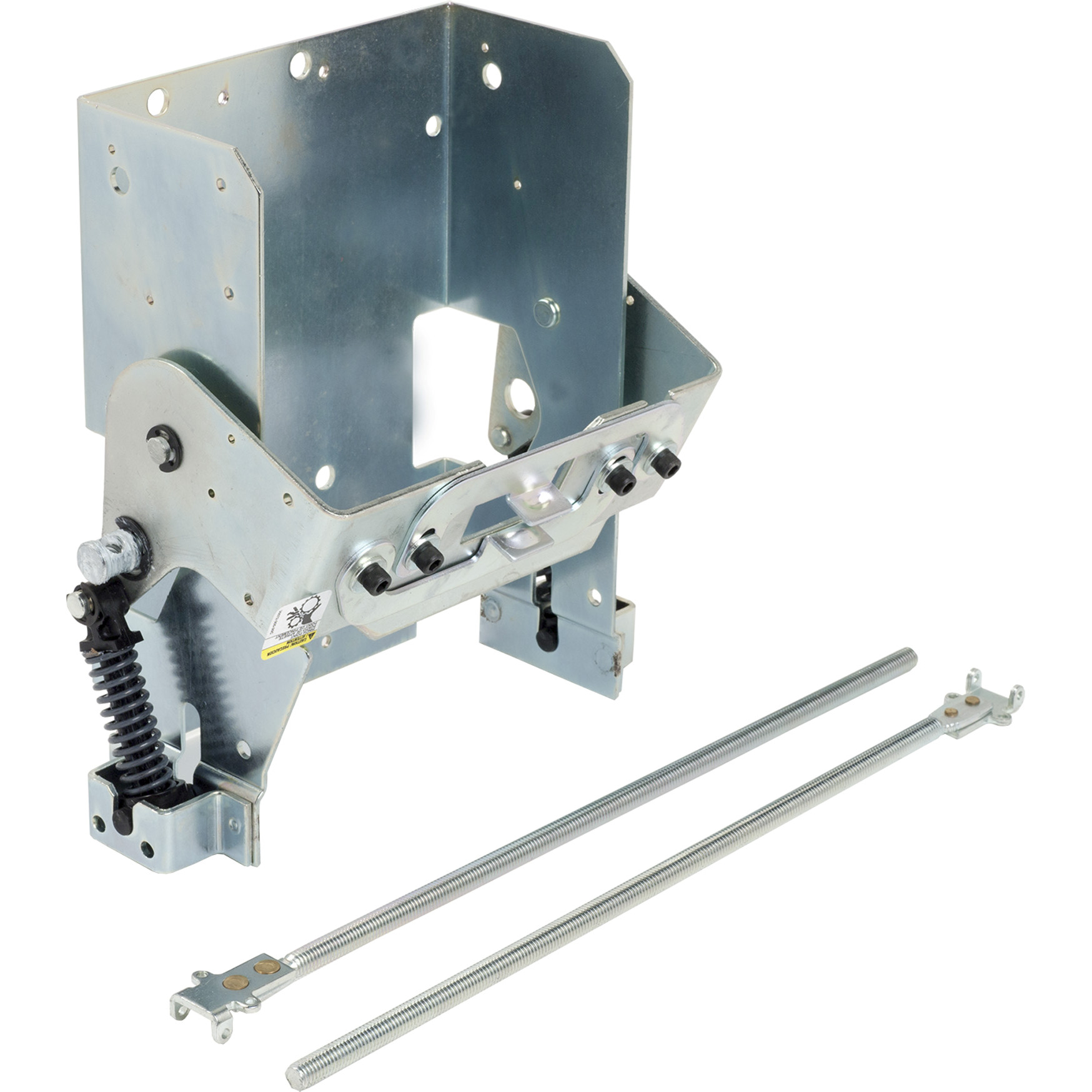

9422ARR11 9422R Bracket Mount Variable Depth Circuit Breaker Disconnect Operating Mechanism, Handle/Rod Handle/Operation, Flange Handle Mounting, For Use With Type LAL, LHL, Q4L 400 A 2/3-Pole Circuit Breaker

MFR:
Schneider Electric
MFR #:
9422ARR11
UPC:
785901120414
Item #:
110869

Availability

Location Available Qty
Available Available to Order
$1,275.86 each

This variable depth mechanism is used with Square D circuit breakers. It is designed for installation in a custom built control enclosure where main or branch circuit protective devices are required. All circuit breaker operating mechanisms are suitable for either right or left hand flange mounting and are convertible on the job. This mechanism is for a 2 or 3 pole LAL or LHL circuit breaker with a 400A frame size. The variable depth mounting range is 7.44 to 18.25 inches. A 9422A2 handle mechanism is included with this mechanism. Operating mechanism is UL Component Recognized and CSA certified

Manuals and Documentation
Catalog Number 9422ARR11
Manufacturer Schneider Electric
Brand Square D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Mounting Flange Rod Variable Depth
Standard UL Recognized;CSA
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=565565&lang=en-us
UPC 785901120414
GTIN 00785901120414
Item Type Circuit Breaker Mechanism
