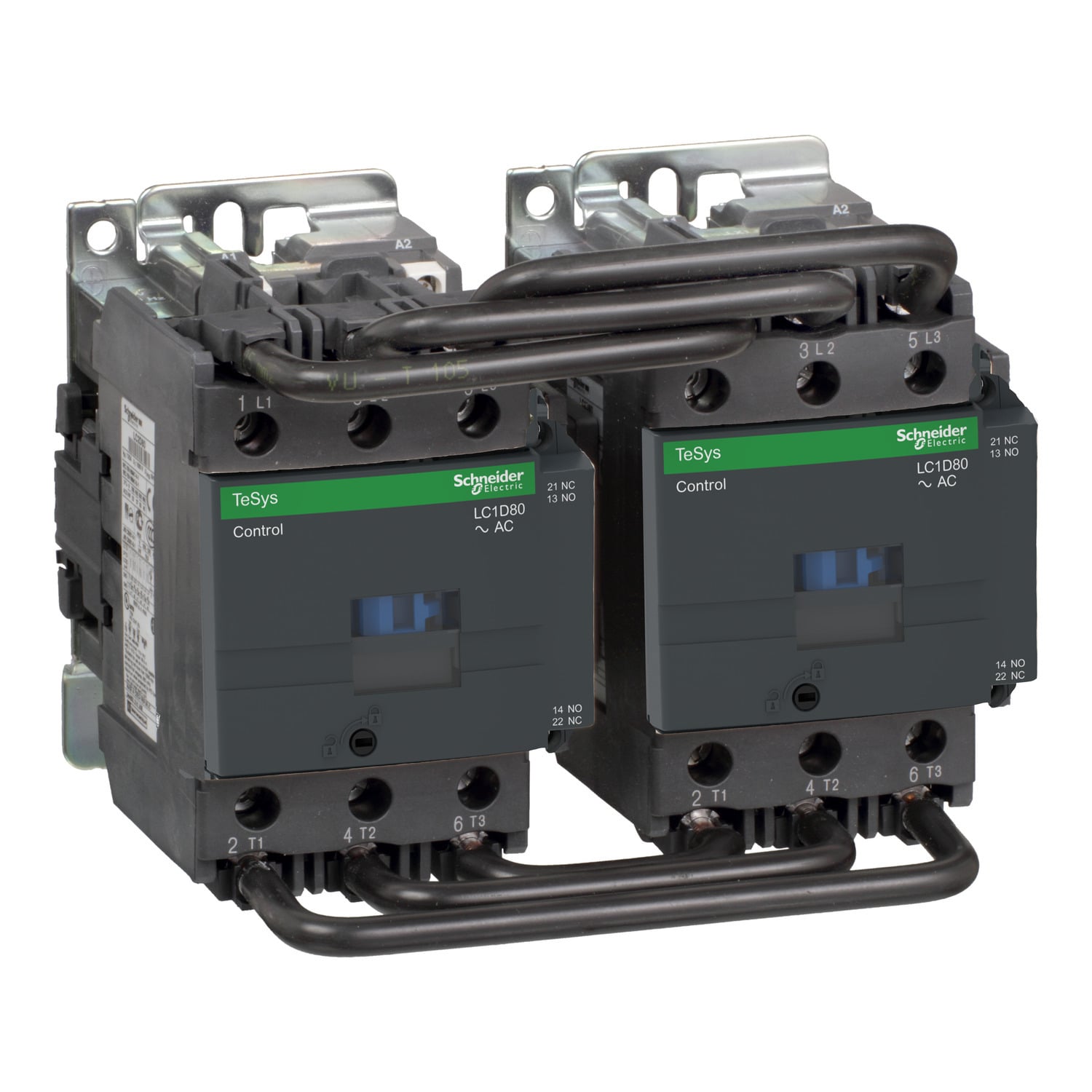

LC2D80M7 LC2D Series Reversing Contactor, 220 V AC v coil, 80 to 125 A, 3NO contact, 3 poles
- MFR:
- Schneider Electric
- MFR #:
- LC2D80M7
- Item #:
- 1108599
LC2D80M7 LC2D Series Reversing Contactor, 220 V AC v coil, 80 to 125 A, 3NO contact, 3 poles
- MFR #:
- LC2D80M7
- Item #:
- 1108599
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 80A/1000V AC-3/AC-3e (37kW@400V). Rated 80A AC-3 37kW@400V, it includes a 220V 50/60Hz AC coil, 2NO+2NC aux contacts, a mechanical interlock. It provides 220V 50/60Hz AC coils, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), connection by screw terminals. For operating rates until 3600 cycles/hour and environments until 60C, it procures high reliability and durability. Compact (182mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). Assembled with mechanical interlock and pre-wired reversing circuit. Clear separation between power and control circuits, easy front access to coil and auxiliary contacts connections. Equipped with a 220V AC coil that can be supplied at 50Hz or 60Hz. Provides 4 built-in auxiliary contacts 2NO + 2NC, NC contacts are mirror certified suitable to be included in the control of safety systems. High electrical durability, guaranteed for 1.2 million cycles at 80A AC-3 440V, for demanding motor switching applications. Robust design with high making and breaking capacities up to 20 In. Connection by screw clamp terminals.
Manuals and Documentation
| Catalog Number | LC2D80M7 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Czech Republic |
| Made in USA | No |
| Application | Motor control;resistive load |
| Coil Voltage | 220 V AC 50/60 Hz |
| Contact Configuration | 1 NO + 1 NC |
| Standard | UL;CSA;RINA;GOST;CCC;DNV;LROS (Lloyds register of shipping);GL;BV;UKCA |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=4049765&lang=en-us |
| GTIN | 03389110457773 |
| Item Type | Reversing contactor;LC2D |
