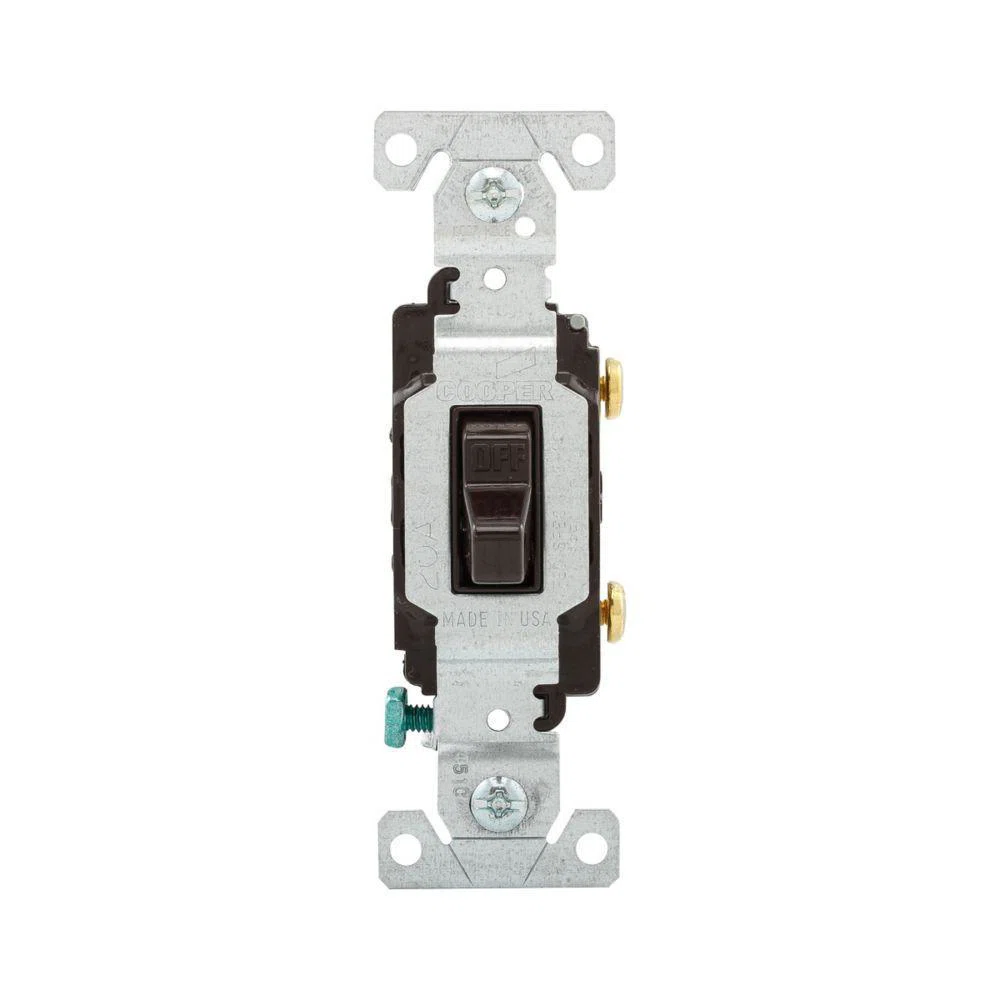

CS120B Arrow Hart Heavy Duty Specification Grade Toggle Switch, 120/277 V, 20 A, 1 hp Power Rating
- MFR:
- Eaton
- MFR #:
- CS120B
- UPC:
- 032664750779
- Item #:
- 11074
CS120B Arrow Hart Heavy Duty Specification Grade Toggle Switch, 120/277 V, 20 A, 1 hp Power Rating
- MFR #:
- CS120B
- UPC:
- 032664750779
- Item #:
- 11074
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$10.60
each
Eaton's Arrow Hart commercial specification grade switches are designed to provide superior quality, reliability and performance in a variety of commercial environments.
Manuals and Documentation
Features
- Spring cup toggle design for robust actuation
- Terminals accept up to 10 AWG solid or stranded wire
- 120/277 VAC rating ideal for fluorescent lighting fixtures typical in commercial applications
- Terminal screws are backed out and ready to wire
- Tri-combo head mounting and terminal screws ease installation
- 14 to 10 AWG terminal accommodation
- Tapered lead-in slots on back wiring holes assist in gathering stranded wires for faster, more secure connections
- 3.28 in L screw to screw
- 2.38 in L back
| Manufacturer Part Number | CS120B |
| Brand | EATON |
| Manufacturer | Eaton |
| UPC | 032664750779 |
| Amperage Rating | 20 A |
| Color | Brown |
| Dimensions | 1.13 in W x 0.87 in D |
| Material | Nylon/PVC |
| Series | CS Series |
| Type | Heavy Duty Specification Grade |
| Voltage Rating | 120/277 V |
| Alternative Part Number | 14064643 |
| Manufacturer Item Status | Active |
| Country | USA |
| Standards Approvals | Federal Specification Classification 6241 05,NOM,cULus Listed |
| Application | Commercial, Institutional Buildings and Structures |
| Actuator | Compact Toggle |
| Environmental Conditions | -40 to 65 deg C Operating Temperature |
| Mounting | Wall |
| Number Of Poles | 1 |
| Operating Cycles | 50000 Cycles |
| Power Rating | 1 |
| Terminal Type | Side Wire/Screw |
