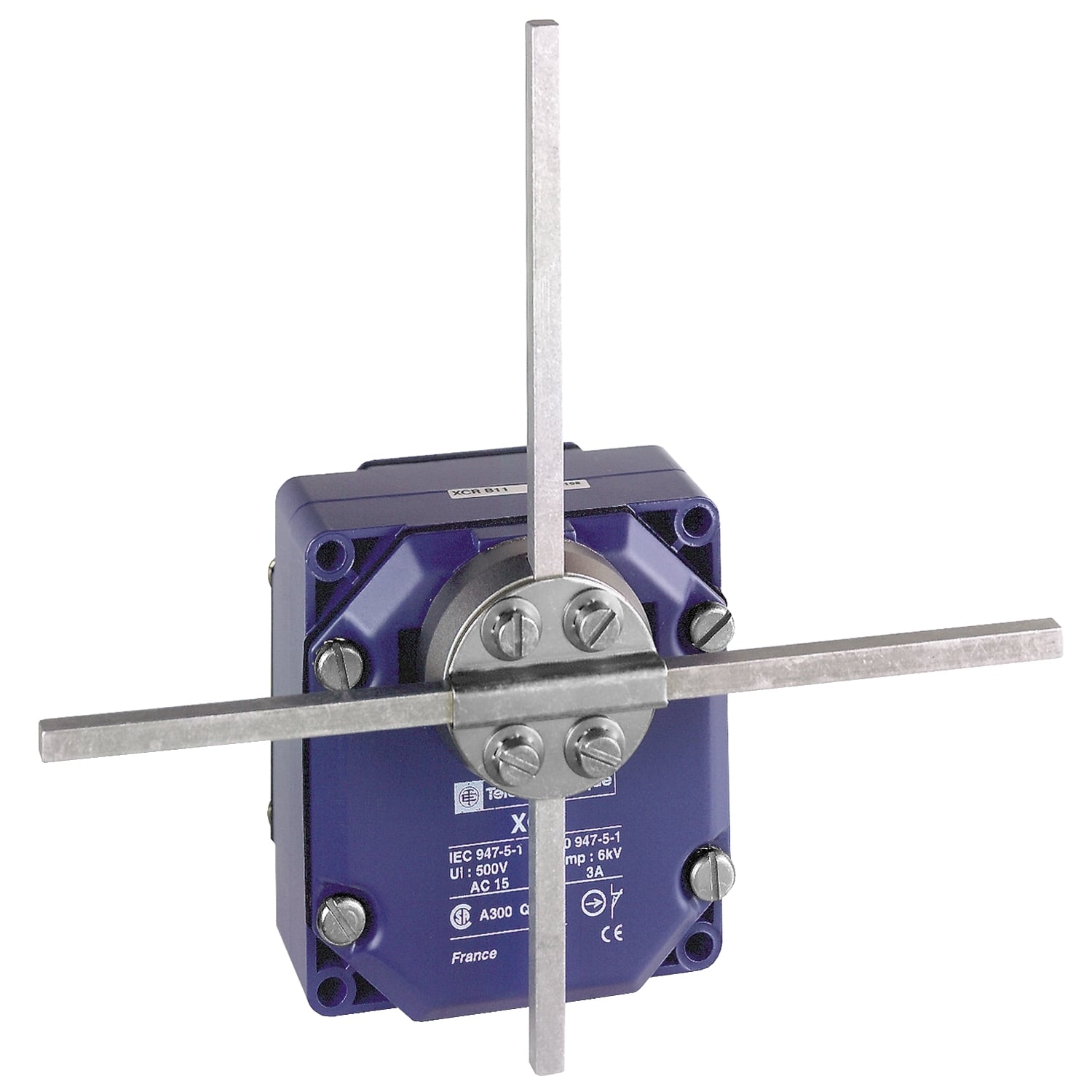

XCRE181 OsiSense XC Fixed Special Format Limit Switch, 240 V AC, 10 A, 6 mm Metal Stay Put Crossed Square Rod Lever Actuator, 2NO-2NC Contact, 4 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- XCRE181
- Item #:
- 1106633
XCRE181 OsiSense XC Fixed Special Format Limit Switch, 240 V AC, 10 A, 6 mm Metal Stay Put Crossed Square Rod Lever Actuator, 2NO-2NC Contact, 4 Poles
- MFR #:
- XCRE181
- Item #:
- 1106633
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$909.55
each
limit switch XCR - metal stay put crossed rods lever square rod 6mm - 2X(1NC+NO)
Manuals and Documentation
| Catalog Number | XCRE181 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Unknown |
| Made in USA | No |
| Action | Lateral approach, 2 directions;Snap action;By any moving part |
| Actuator | Stay put crossed rods lever metal square rod 6 mm |
| Application | For hoisting and mechanical handling applications |
| Connection | Screw-clamp terminals 1 x 0.34...2 x 1.5 mm² |
| Contact Configuration | 2 x (1 NC + 1 NO) |
| Mounting | By The Body |
| Number of Poles | 4 |
| Operating Cycles | 5000000 CYCLES, DC-13, INDUCTIVE, 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 24 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 48 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C |
| Special Features | FIXED,METAL |
| Standard | 68 GN IEC 60068-2-27,9 GN 10-500 HZ)IEC 60068-2-6,CSA-CCC,IEC 60204-1-EN 60204-1-EN 60947-5-1-CSA C22.2 NO 14-NF C 79-130-IEC 60947-5-1,IP65 IEC 60529 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=858390&lang=en-us |
| GTIN | 03389110605976 |
| Item Type | Limit switch |
| Size | 2.95 |
| Operating Temperature | -25-70 A Degrees C |
