Panduit

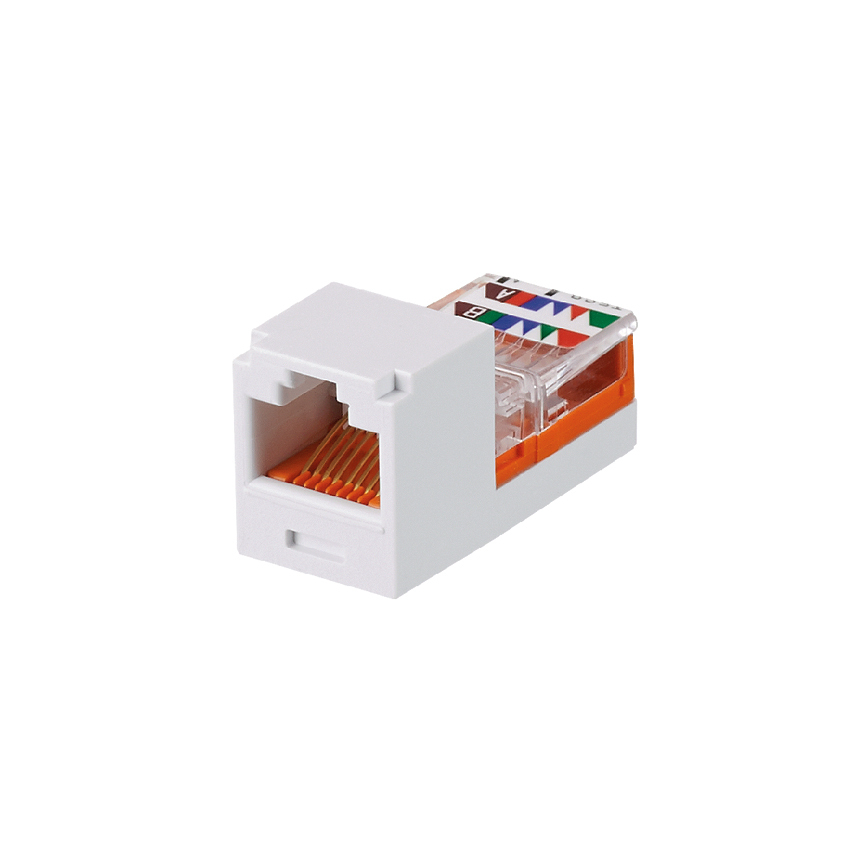

CJ588WHY PanNet Mini-Jack TX5e 1-Slot 8-Position 8-Wire Lead Frame Unshielded Jack Module, Cat 5e RJ45/Mini-Com Module, Surface Mount, 1 Port, ABS, White

MFR:
Panduit
MFR #:
CJ588WHY
UPC:
074983035069
Item #:
110625

Availability

Location Available Qty
Available Available to Order
$14.55 each

The Mini-Com Cat 5e UTP RJ45 Leadframe Jack Module is designed to terminate 4-pair, 22-24 AWG twisted pair cable. Each module is 100% factory tested for continuity. Contacts are plated with 50 microinches of gold for superior performance. Jack modules are compatible with Mini-Com Modular Patch Panels and Faceplates. The jack module is White.

Manuals and Documentation
Catalog Number CJ588WHY
Manufacturer Panduit
Brand Panduit
Country of Origin China
Made in USA No
Application Unshielded
Cable Entry T568A/T568B
Color White
Material ABS
Standard Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS
UPC 074983035069
GTIN 00074983035069
Item Type Jack Module
Width 0.62
Width UOM Inch
Depth 1.37 IN
