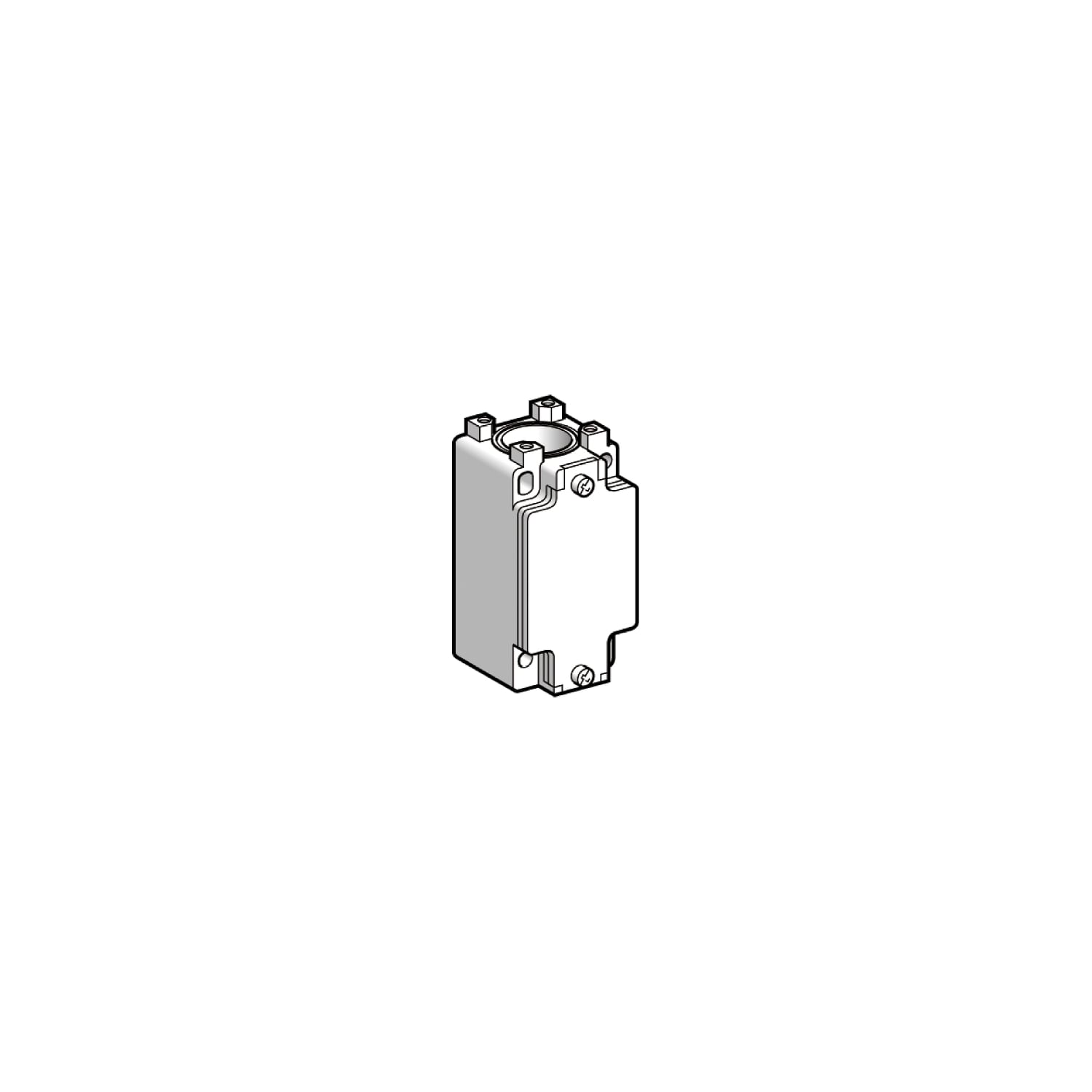

ZCKJ25 OsiSense XC Fixed Limit Switch Body, 2CO Contact, For Use With XCKJ, ZCKJ and ZCKJ Series Standard Format Compact Limit Switch, 3 A at 240 V AC/0.27 A at 250 V AC/10 A at 300 V AC Contact, IP66 Enclosure
- MFR:
- Telemecanique Sensors
- MFR #:
- ZCKJ25
- UPC:
- 785901165590
- Item #:
- 110506
ZCKJ25 OsiSense XC Fixed Limit Switch Body, 2CO Contact, For Use With XCKJ, ZCKJ and ZCKJ Series Standard Format Compact Limit Switch, 3 A at 240 V AC/0.27 A at 250 V AC/10 A at 300 V AC Contact, IP66 Enclosure
- MFR #:
- ZCKJ25
- UPC:
- 785901165590
- Item #:
- 110506
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$160.77
each
limit switch body ZCKJ - fixed - w/o display - 2C/O - snap action - Pg13
Manuals and Documentation
| Catalog Number | ZCKJ25 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Action | Snap action |
| Amperage Rating | 10 |
| Application | XCKJ |
| Connection | Screw-clamp terminals 1 x 0.75...2 x 1.5 mm² |
| Contact Configuration | 2 C/O |
| Enclosure | IP66 |
| Number of Poles | 2 |
| Operating Cycles | 5000000 CYCLES, DC-13 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C |
| Special Features | FIXED |
| Standard | IK07,IP66 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=879626&lang=en-us |
| UPC | 785901165590 |
| GTIN | 03389110599541 |
| Item Type | Limit switch body |
| Size | 1.73 |
| Environmental Conditions | STANDARD ENVIRONMENT-LOW TEMPERATURE-HIGH TEMPERATURE |
| Operating Temperature | -25-70 A Degrees C STANDARD ENVIRONMENT-10-120 A Degrees C HIGH TEMPERATURE--40-70 A Degrees C LOW TEMPERATURE |
| Voltage Rating | 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 APPENDIX A |
