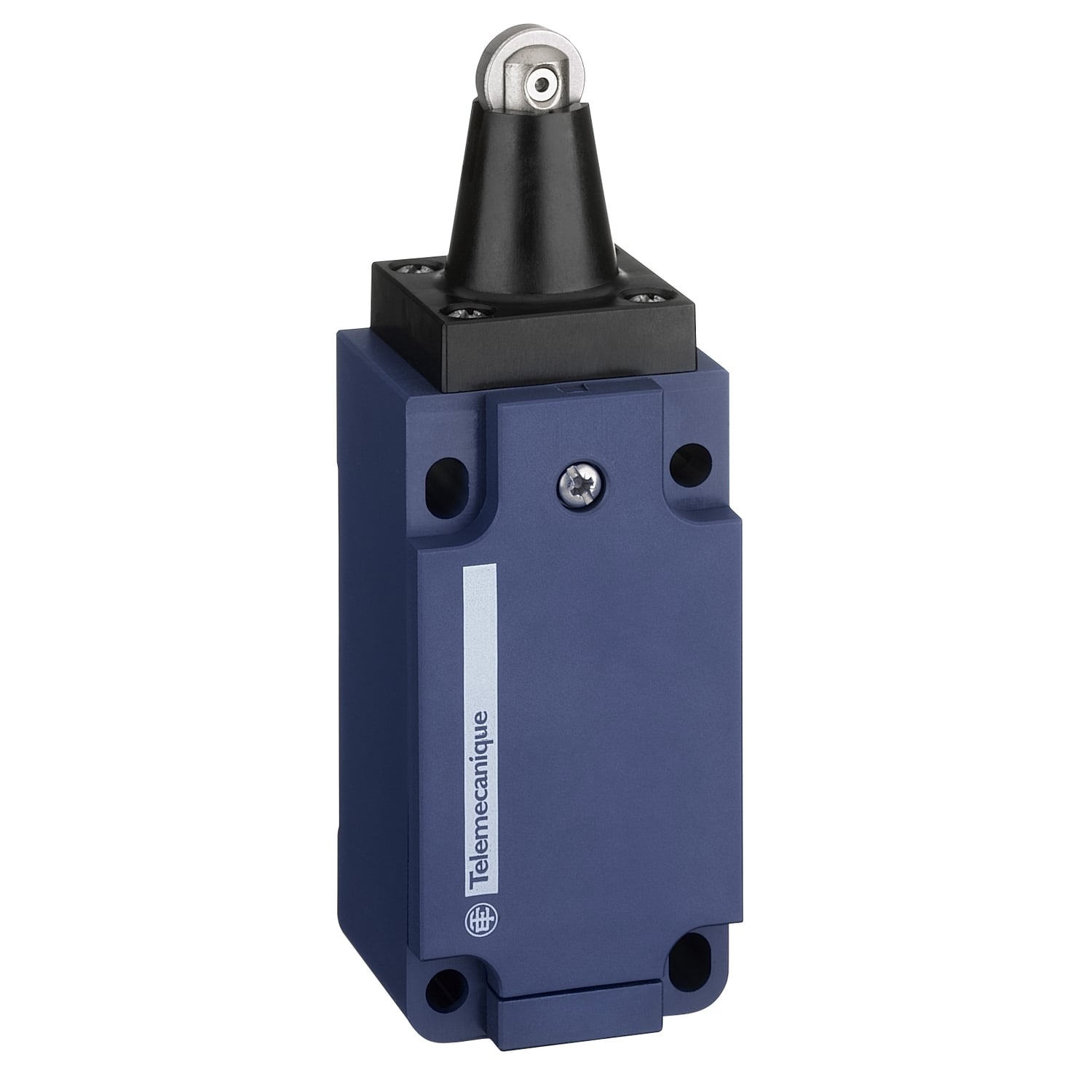

XCKS102H29 OsiSense Fixed Standard Format Limit Switch, 240 V AC, 3 A, Spring Return Roller Plunger Actuator, 1NO-1NC Contact, 2 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- XCKS102H29
- UPC:
- 785901680826
- Item #:
- 1104224
XCKS102H29 OsiSense Fixed Standard Format Limit Switch, 240 V AC, 3 A, Spring Return Roller Plunger Actuator, 1NO-1NC Contact, 2 Poles
- MFR #:
- XCKS102H29
- UPC:
- 785901680826
- Item #:
- 1104224
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$79.60
each
Limit switch, Limit switches XC Standard, XCKS, steel roller plunger, 1NC+1 NO, snap action, M20
Manuals and Documentation
| Catalog Number | XCKS102H29 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Action | Lateral approach, 2 directions;Snap action;By 30 Degrees cam |
| Actuator | Spring return roller plunger metal |
| Application | CLASSIC |
| Connection | Screw-clamp terminals 1 x 0.34...2 x 1.5 mm² |
| Contact Configuration | 1 NC + 1 NO |
| Mounting | By The Body |
| Number of Poles | 2 |
| Operating Cycles | 5000000 CYCLES, DC-13, INDUCTIVE, 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C |
| Special Features | FIXED,PLASTIC |
| Standard | 25 GN 10-500 HZ)IEC 60068-2-6,40 GN 11 MS IEC 60068-2-27,IEC 60947-5-1-UL 508-CENELEC EN 50041-IEC 60204-1-EN 60204-1-EN 60947-5-1-CSA C22.2 NO 14,IK05 EN 50102,IP67 IEC 60529-IP66 IEC 60529,UL-CSA-CCC,CLASS II IEC 61140-CLASS II NF C 20-030 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=857344&lang=en-us |
| UPC | 785901680826 |
| GTIN | 03389110612356 |
| Item Type | Limit switch |
| Size | 117-117 MM,37 MM,40 MM |
| Operating Temperature | -25-70 A Degrees C |
