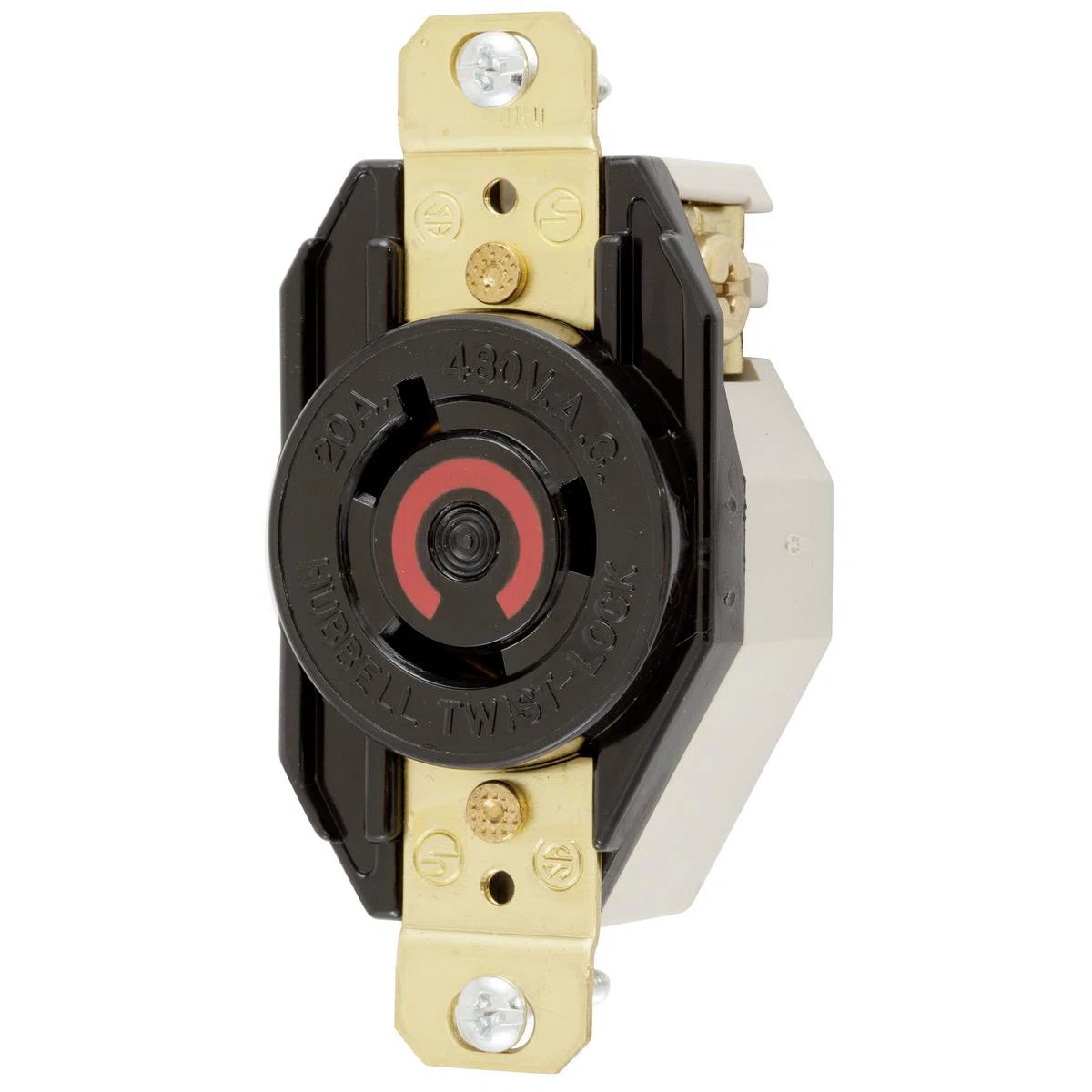

HBL2340 HBL 1-Phase Heavy Duty Single Screw Mount Locking Receptacle, 480 V AC, 20 A, 2 Poles, 3 Wires, Black
- MFR:
- Hubbell
- MFR #:
- HBL2340
- UPC:
- 783585235691
- Item #:
- 110040
HBL2340 HBL 1-Phase Heavy Duty Single Screw Mount Locking Receptacle, 480 V AC, 20 A, 2 Poles, 3 Wires, Black
- MFR #:
- HBL2340
- UPC:
- 783585235691
- Item #:
- 110040
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$53.04
each
Locking Devices, Twist-Lock®, Industrial, Single Flush Receptacle, 20A 480V AC, 2-Pole 3-Wire Grounding, NEMA L8-20R, Screw Terminal, Nylon face, Back and side wire, Black.
Manuals and Documentation
Features
- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
- Face color coding by voltage facilitates locating and mating of proper devices
- All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
| Manufacturer Part Number | HBL2340 |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| UPC | 783585235691 |
| EAN | 0783585235691 |
| Country Of Origin | US |
| Amperage Rating | 20 A |
| Color | Black |
| Dimensions | 3.28 x 1.7 x 1.23 in |
| Horsepower | 3 hp |
| Material | Nylon |
| Series | HBL® |
| Temperature Rating | -40 to 75 deg C |
| Type | 1-Phase Heavy Duty Single Screw Mount |
| Voltage Rating | 480 V AC |
| Alternative Part Number | 8915997 | 11829425 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Warranty | Limited |
| Standards Approvals | UL 498 | CSA C22.2 No. 42 Certified | NEMA WD1/WD5 | RoHS Compliant |
| Grade | Industrial |
| Nema Rating | L8-20R |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Terminal Type | Screw |
