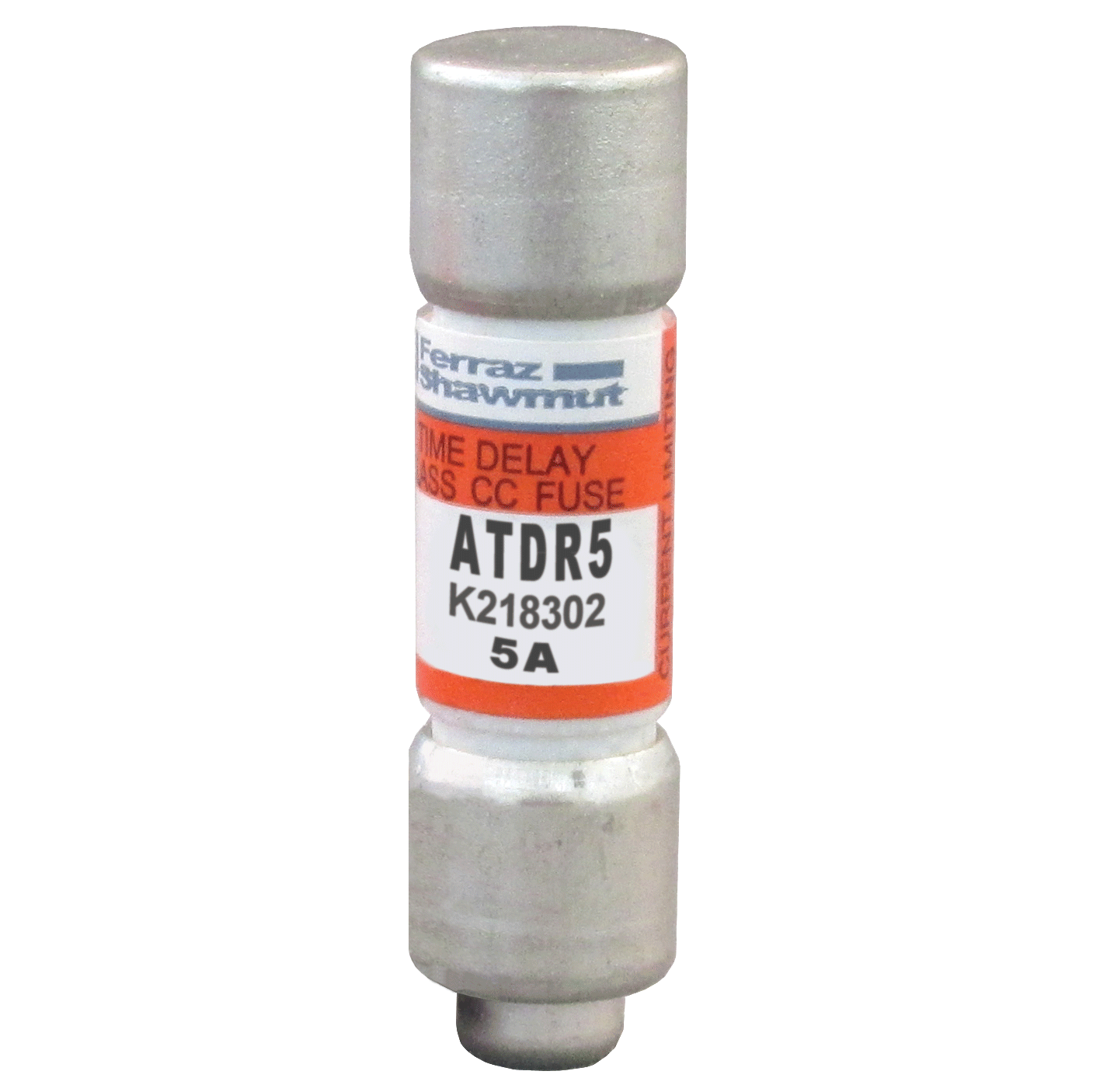

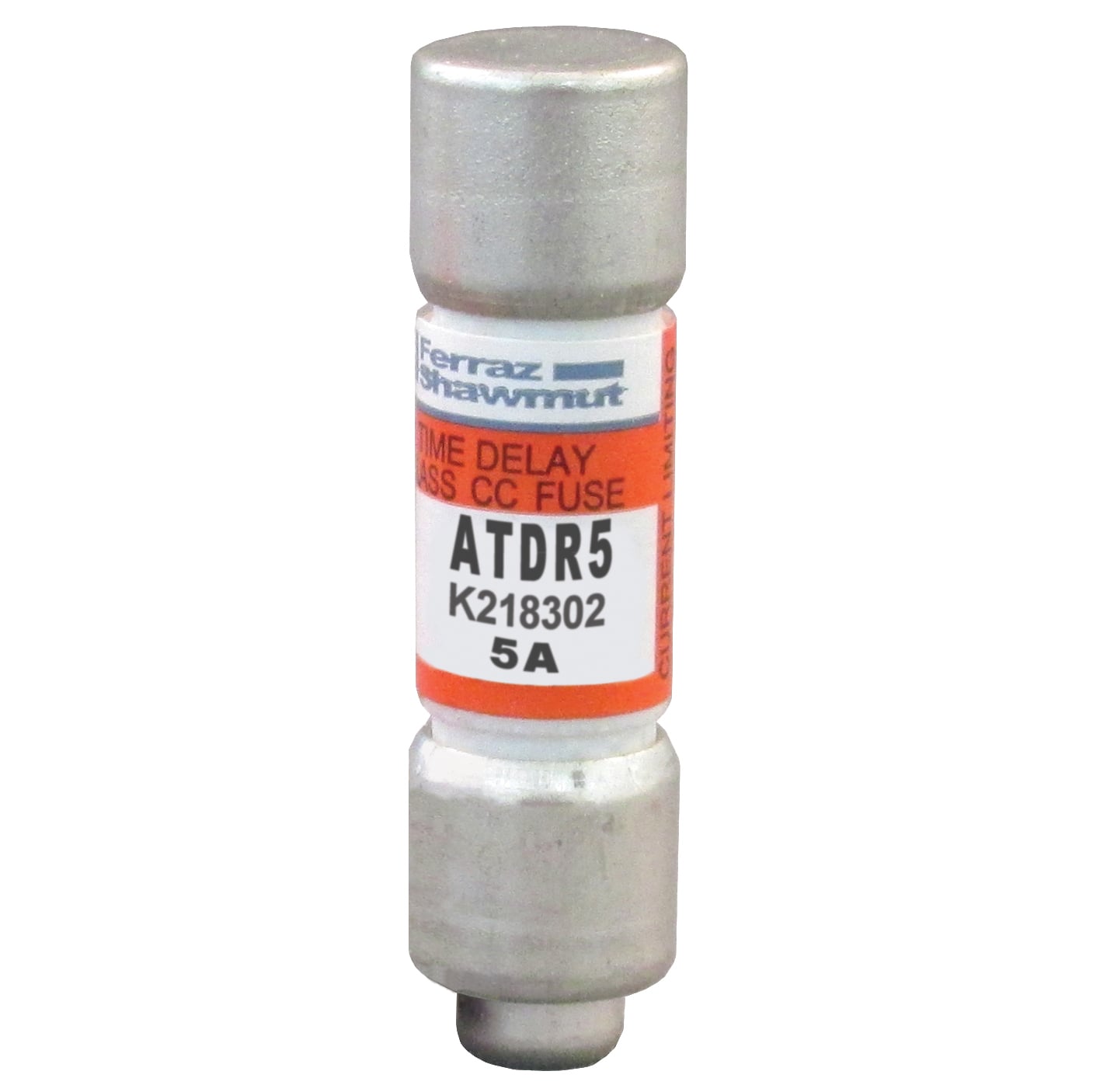

ATDR5 Amp-Trap 2000 SmartSpot Current Limiting North American Time Delay Power Fuse, 5 A, 600 V AC, 200 kA Interrupt, CC Class, Cylindrical Body
- MFR:
- Mersen
- MFR #:
- ATDR5
- UPC:
- 782001901028
- Item #:
- 109805
ATDR5 Amp-Trap 2000 SmartSpot Current Limiting North American Time Delay Power Fuse, 5 A, 600 V AC, 200 kA Interrupt, CC Class, Cylindrical Body
- MFR #:
- ATDR5
- UPC:
- 782001901028
- Item #:
- 109805
Availability
| Location | Available Qty |
|---|---|
| Available | 27 |
$78.21
each
Fuse ATDR - Class CC - Time-Delay 600VAC 300VDC 5A Ferrule Amp-Trap 2000
Manuals and Documentation
| Catalog Number | ATDR5 |
| Manufacturer | Mersen |
| Brand | Mersen |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 5 |
| Application | Small motors Contactors Lighting, heating & general loads Branch circuit protection |
| Connection | Ferrule |
| Interrupt Rating | 200 KA |
| Mounting | Clip |
| Special Features | Time-delay for motor starting inrush currents without nuisance opening Highly current-limiting for low peak let-thru current Improved cycling ability for frequent motor starts/stops without nuisance fuse opening Rejection-style design prevents replacement errors (when used with recommended fuse blocks) High-visibility orange label ensures instant brand recognition, simplifies replacement Metal-embossed date and catalog number for traceability and lasting identification Fiberglass body provides dimensional stability in harsh industrial settings High-grade silica filler ensures fast arc quenching and optimum current-limitation |
| Standard | UL listed to standard 248-4 File E2137 CSA certified to standard C22.2 No. 248.4 DC listed to UL standard 248 |
| UPC | 782001901028 |
| GTIN | 00782001901028 |
| Item Type | Class CC |
| Size | 1.5 x 0.41 |
| Voltage Rating | 600 |
