BURNDY

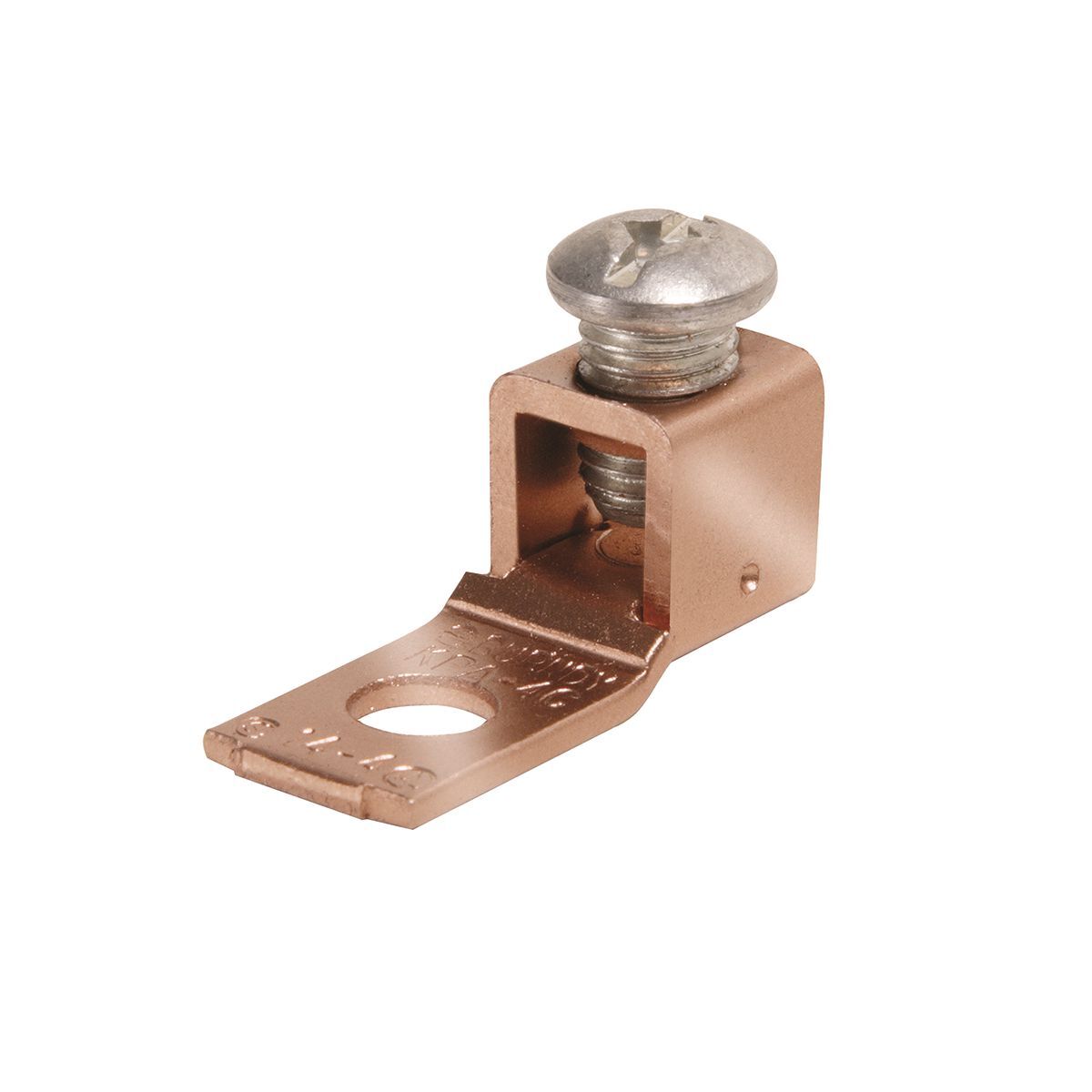

KPA8CUP KPA-UP 1-Piece Mechanical Bolted Lug and Terminal, 14 to 6 AWG Solid Copper Conductor, #10 Stud, 1 Bolt Hole, Copper

MFR:
Burndy, a Hubbell affiliate
MFR #:
KPA8CUP
UPC:
781810354353
Item #:
109689

Availability

Location Available Qty
Available 559 ea
$3.90 each
Manuals and Documentation
Catalog Number KPA8CUP
Manufacturer Burndy, a Hubbell affiliate
Brand BURNDY
Country of Origin Mexico
Made in USA No
Application For Joining A Wide Range Of Copper Cable To Equipment Pads Or Terminal Blocks
Material Copper
Special Features Features: High Copper Alloy Terminal For Joining A Wide Range Of Cable To Equipment Pads Or Terminal Blocks, One Piece Design, Superior Torque And Pull Out Performance, Convenient Range Taking Design, Reduces Catalog Numbers, One Catalog Number Accommodates Several Conductor Sizes, High Conductivity Copper Alloy, Long Lasting, Reliable Contact, Compact Design, Easy To Use, Slot Robertson Screw, Hex Head, Hex Socket Bolt, No Special Installation Tools Required, Eliminates Over-Torquing/Potential Conductor Damage, Stud/bolt Hole Size: #10, Dimension T: 07 IN, Dimension D: 0.51 IN, Dimension N: 0.24 IN, Dimension K: 0.2 IN, Set Screw Type: Slot Robertson, Tongue Width: 0.38 IN, Installation Torque: 35 IN-LB, Height: 0.81 IN, Length: 11 IN
Standard UL 486A-486B
UPC 781810354353
GTIN 00781810354353
Item Type Bolted Lugs & Terminals
Cross Reference Products XT-6, 6TC-1
