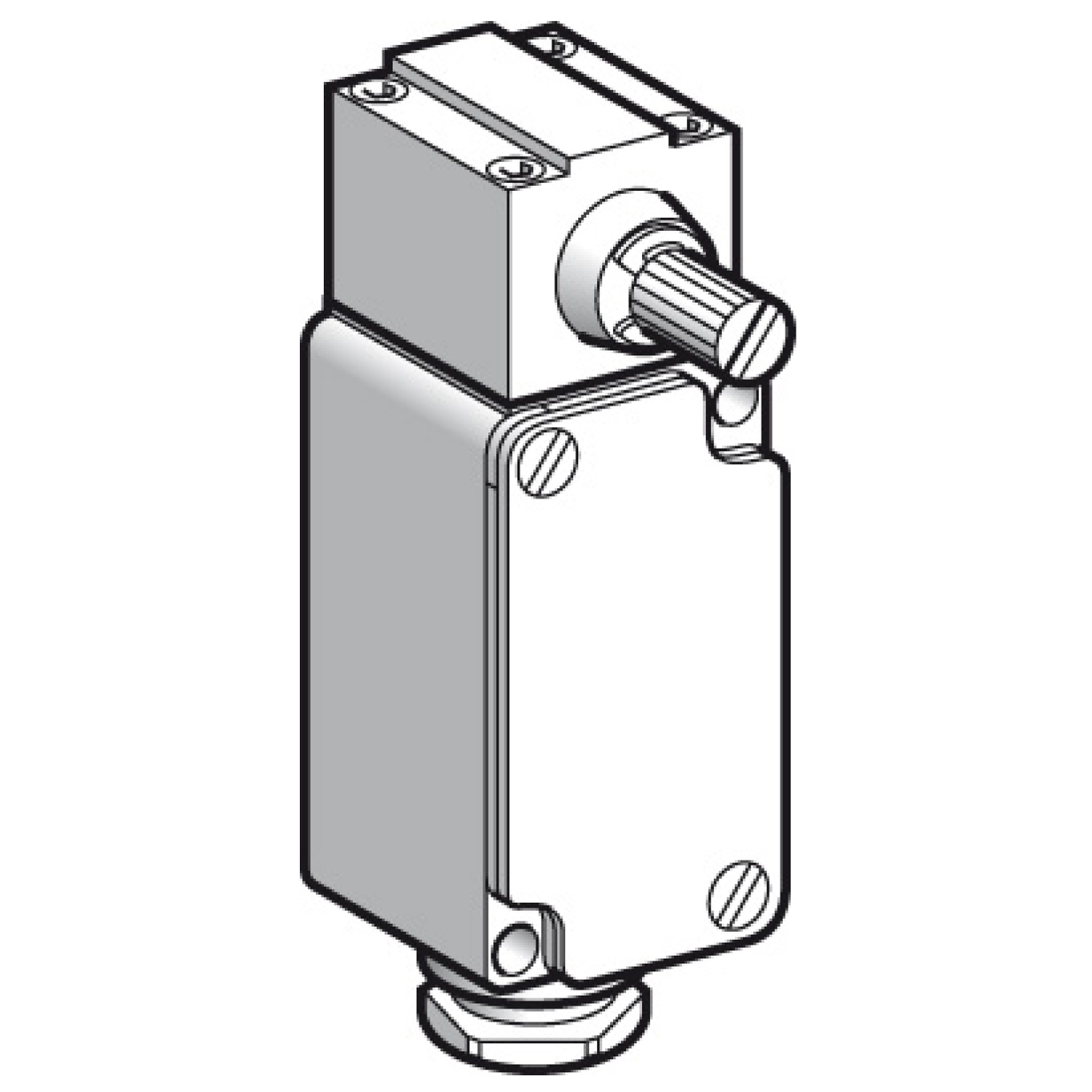

XC2JC101 OsiSense Fixed Limit Switch, 600 V DC, 10 A, Roller Lever Actuator, 1 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- XC2JC101
- UPC:
- 785901142423
- Item #:
- 1096678
XC2JC101 OsiSense Fixed Limit Switch, 600 V DC, 10 A, Roller Lever Actuator, 1 Poles
- MFR #:
- XC2JC101
- UPC:
- 785901142423
- Item #:
- 1096678
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$510.35
each
LIMIT SWITCH 600 VDC 10 AMP XC2J +OPTIONS
Manuals and Documentation
| Catalog Number | XC2JC101 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Action | By 30 Degrees cam;Lateral approach, 2 directions;Snap action |
| Actuator | Roller lever thermoplastic |
| Application | For severe applications |
| Connection | Screw-clamp terminals 1 x 0.5...2 x 2.5 mm² |
| Mounting | By The Body |
| Number of Poles | 1 |
| Operating Cycles | 5000000 CYCLES, DC-13, 120 V, 4 W 3600 CYC/H 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 24 V, 10 W 3600 CYC/H 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 48 V, 7 W 3600 CYC/H 0.5 IEC 60947-5-1 APPENDIX C |
| Special Features | FIXED,METAL |
| Standard | 10 GN 10-500 HZ)IEC 60068-2-6,25 GN 18 MS IEC 60068-2-27,IK08,IP65 IEC 60529-IP657 NF C 20-010,NEMKO-CSA-DEMKO,VDE 0660-200-UL 508-IEC 60337-1-CSA C22.2 NO 14-EN/IEC 60947-5-1,CLASS I IEC 60536-CLASS I NF C 20-030 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=854788&lang=en-us |
| UPC | 785901142423 |
| GTIN | 03389110334227 |
| Item Type | Limit switch |
| Size | 2.56 |
| Operating Temperature | -25-70 A Degrees C |
