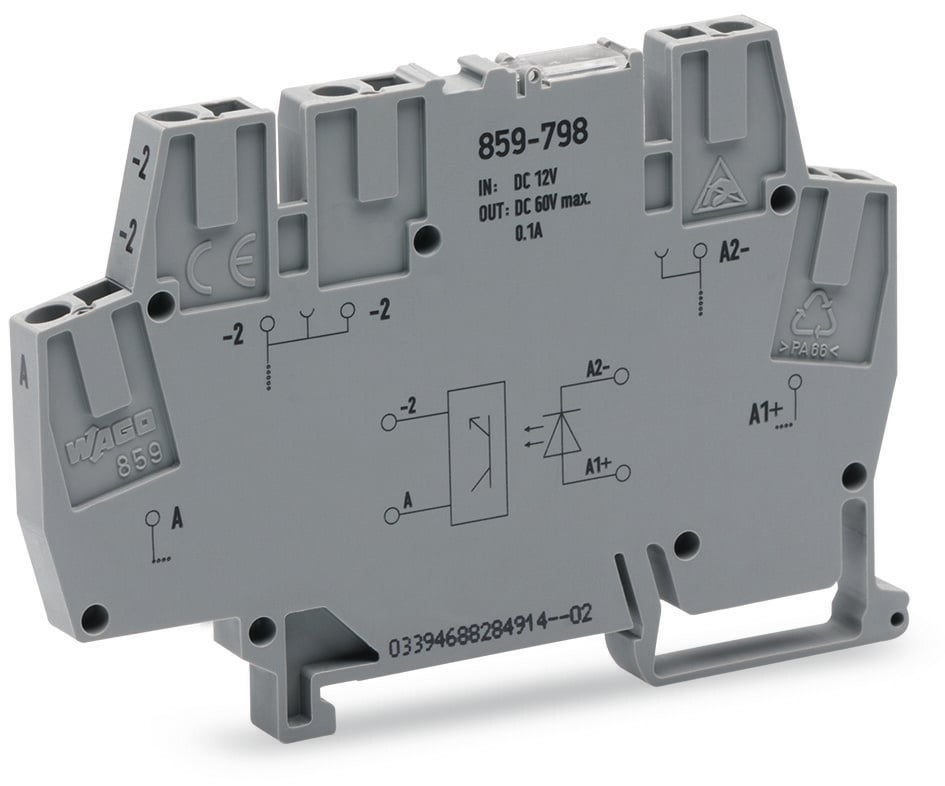

Fixed-type solid-state / static relay (SSR) with red LED - 2-wire connection - for railways applications - Wago (859 series) - single-pole / single-phase / 1-pole (1P) - control voltage 8.4-15Vdc (12Vdc nom.) - Rated voltage 9Vdc-60Vdc output - Rated current 0.1A (continuous) - with CAGE-CLAMP spring connections - DIN-35 rail mounting (6mm width)
- MFR:
- WAGO
- MFR #:
- 859-798
- Item #:
- 1096369
Fixed-type solid-state / static relay (SSR) with red LED - 2-wire connection - for railways applications - Wago (859 series) - single-pole / single-phase / 1-pole (1P) - control voltage 8.4-15Vdc (12Vdc nom.) - Rated voltage 9Vdc-60Vdc output - Rated current 0.1A (continuous) - with CAGE-CLAMP spring connections - DIN-35 rail mounting (6mm width)
- MFR #:
- 859-798
- Item #:
- 1096369
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$25.29
each
| Catalog Number | 859-798 |
| Manufacturer | WAGO |
| Brand | WAGO |
| Country of Origin | Germany |
| Color | gray |
| Conductor Range | 14-28 AWG Conductor Range |
| Connection | Fixed|Terminals (Cage-clamp) |
| Insulation | Basic insulation |
| Mounting | Din Rail |
| GTIN | 4055143606431 |
| Item Type | Solid State Relay (SSR) |
| Dimensions | H91mm x W6mm x D56mm|6mm width |
| Width | 0.236 |
| Width UOM | Inch |
| Height | 91 mm / 3.583 inches |
| Height UOM | Inch |
| Weight | 17.499 |
| Weight UOM | Grams |
