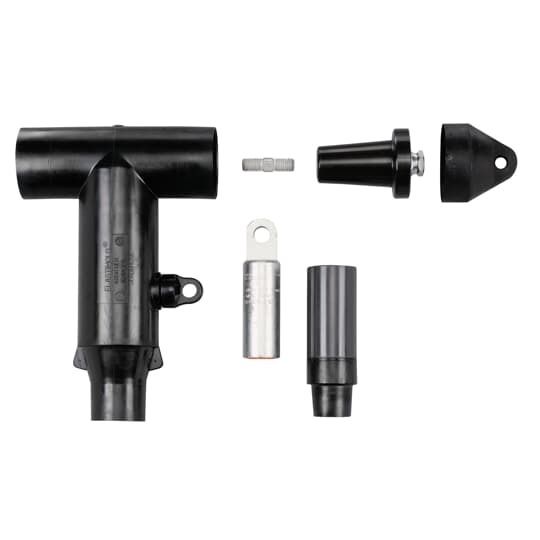

K656LR-L0330-SG3 Elastimold Deadbreak Elbow Connector With Test Point, 25 kV, 600 A, 500 kcmil Stranded, 600 kcmil Solid Conductor, 1.18 to 1.465 in Dia Insulation, EPDM Rubber
- MFR:
- ABB - Installation Products
- MFR #:
- K656LR-L0330-SG3
- UPC:
- 783786528486
- Item #:
- 1095450
K656LR-L0330-SG3 Elastimold Deadbreak Elbow Connector With Test Point, 25 kV, 600 A, 500 kcmil Stranded, 600 kcmil Solid Conductor, 1.18 to 1.465 in Dia Insulation, EPDM Rubber
- MFR #:
- K656LR-L0330-SG3
- UPC:
- 783786528486
- Item #:
- 1095450
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$1,131.51
each
| Catalog Number | K656LR-L0330-SG3 |
| Manufacturer | ABB - Installation Products |
| Brand | Elastimold |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 600 |
| Application | 15/25kV, 600 Amp Deadbreak Elbow Connection |
| Color | Black |
| Conductor Range | 500 kcmil |
| Insulation | Yes, EPDM Rubber |
| Material | Housing - EPDM Rubber |
| Special Features | Fully Shielded, Fully Submersible Molded Rubber Housing. 100 percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Materials. Can be Easily Connected or Disconnected using Standard Hand Tools and Equipment in a De-Energized State. Non-Corrosive, Capacitive Test Point |
| Standard | ANSI/IEEE Standard 386 |
| UPC | 783786528486 |
| GTIN | 00783786528486 |
| Item Type | Deadbreak Elbow Connector with Test Point |
| Size | Width 10.36 inch, Length 13.00 inch from Body of T-Body to Center of Bushing |
| Environmental Conditions | Fully Submersible |
| Temperature Rating | -40 to +65 C |
| Voltage Rating | 25 kV |
