Eaton Bussmann series TCF fuse, 400 A, 60 Hz, 50 Hz, Dual, Class CF, Black, With Indicator, Blade end, Time delay,Class CF, 200 kAIC, Glass filled PES, Standard, 1, 600 V, TCFH400N
- MFR:
- Eaton Bussmann
- MFR #:
- TCF400
- UPC:
- 051712697859
- Item #:
- 1092249
Eaton Bussmann series TCF fuse, 400 A, 60 Hz, 50 Hz, Dual, Class CF, Black, With Indicator, Blade end, Time delay,Class CF, 200 kAIC, Glass filled PES, Standard, 1, 600 V, TCFH400N
- MFR #:
- TCF400
- UPC:
- 051712697859
- Item #:
- 1092249
Availability
| Location | Available Qty |
|---|---|
| Available | 3 ea |
$1,204.37
each

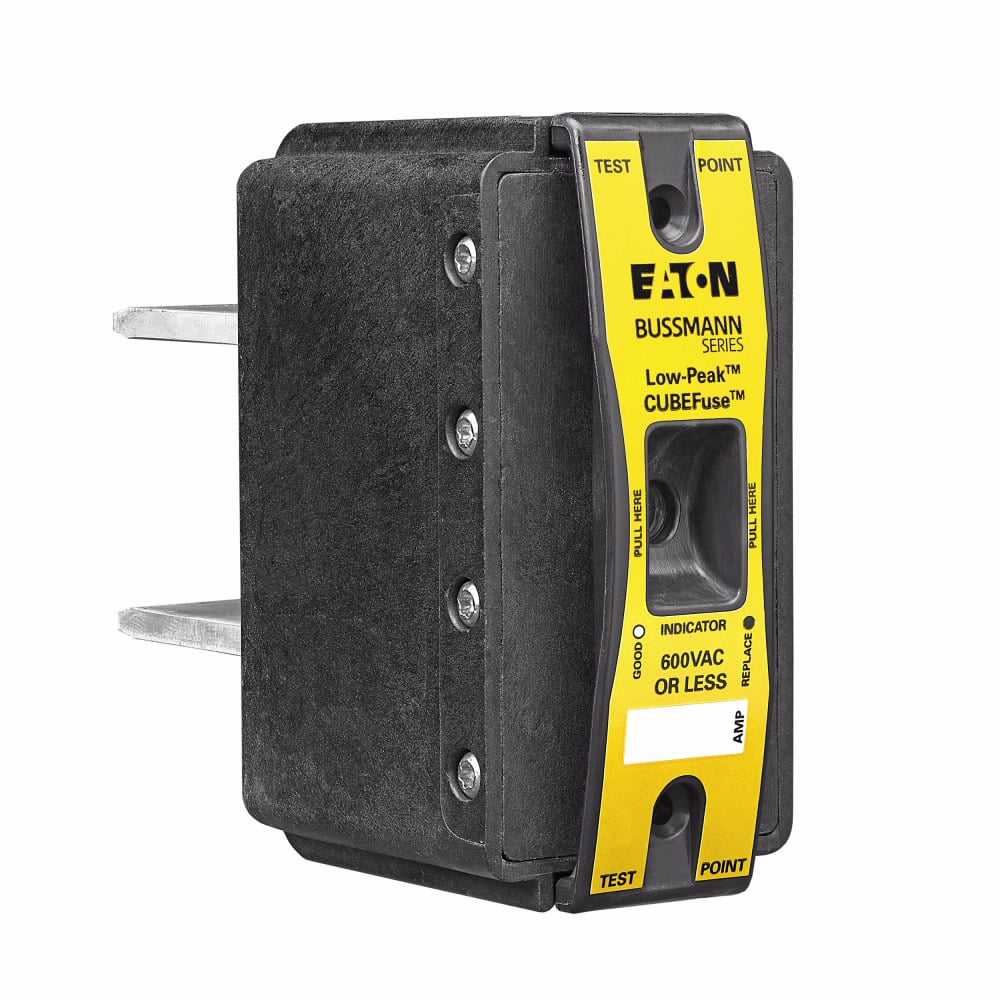

The revolutionary BussmannTM series Low-PeakTM CUBEFuseTM delivers the smallest footprint compared to any Class CC, J or RK fuse solution requiring up to 70 less space when combined with its unique fuse holder or UL 98 Listed Compact Circuit Protector switch. Freeing up space is powerful. And the CUBEFuse does just that, while packing up to a 300 kA interrupting rating and enabling higher equipment short-circuit current rating (SCCR). Available from 1 to 400 amps.
| Catalog Number | TCF400 |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton Bussmann Series |
| Country of Origin | Multiple |
| Made in USA | No |
| Amperage Rating | 400 |
| Application | Other|Datacenters - Facilities: Power Distribution|Commercial / Institutional Buildings / Structures - Critical Power|Ind Facilities & Factories - Facility: Power Distribution and Control|Stationary Machinery and Equipment Outside Factory - HVAC |
| Connection | Blade end |
| Interrupt Rating | 200 kAIC |
| Material | Glass filled PES |
| Special Features | Finger safe |
| Standard | UL Listed,RoHS Compliant |
| UPC | 051712697859 |
| GTIN | 00051712697859 |
| Item Type | Fuse |
| Weight UOM | Pounds |
| Voltage Rating | 600 V |
