Killark

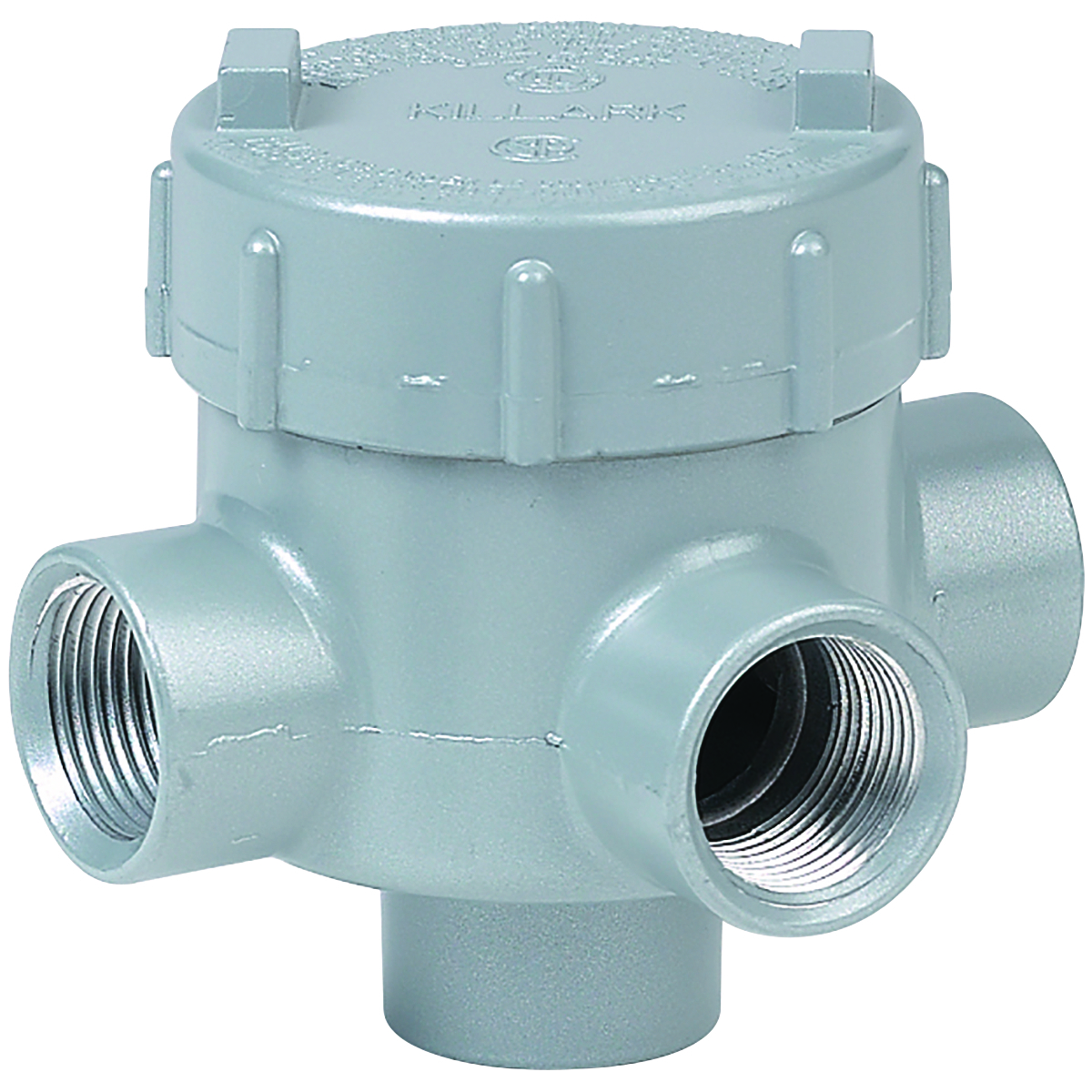

GEMTA-1 GEM Type TAT Conduit Outlet Body, Style TA Body, 1/2 in Hub, 8 cu-in Capacity, Copper Free Aluminum

MFR:
Killark, a Hubbell affiliate
MFR #:
GEMTA-1
UPC:
783936211329
Item #:
1089599

Availability

Location Available Qty
Available Available to Order
$277.56 each
Manuals and Documentation

Features

  • Dimension: 4.4375 Inch Length x 3.625 Inch Width x 3-13/16 Inch Height
  • Taper threaded hubs to provide ground continuity
  • Smooth integral hub bushing to protect conductor insulation when pulling
  • Internally threaded cover openings for additional wiring room
  • Covers furnished with boxes
  • Weather-resistant finish
  • Green ground screw standard
Catalog Number GEMTA-1
Manufacturer Killark, a Hubbell affiliate
Brand Killark
Country of Origin United States
Made in USA Yes
Application Conduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes.
Cable Entry 1/2" hub
Color Gray
Cubic Capacity 8 cu. in.
Material Aluminum, Copper Free (less than 4/10 of 1%)
Special Features GE conduit outlet boxes have: GEM Series has water shedding cover - suitable for wet locations when mounted in upright position; external cover threads on body protecting conductors from damage during pulling; no pinching of conductors during cover instal
Standard UL, CSA
RoHS Indicator Not Applicable
UPC 783936211329
GTIN 00783936211329
Item Type Outlet Body With Cover
Length 11
Length UOM Inch
Width 7
Width UOM Inch
Height 3.7500
Height UOM Inch
Size 11 in x 7 in x 3.75 in
