Schneider Electric

NSYEBCP27628 Linergy Enclosed Power Distribution Block With AL Lug, 600 VAC/VDC, 760 A CU, 1 Poles, 4 AWG to 500 kcmil Line Side/14 to 2/0 AWG Load Side CU Wire, Thermoplastic

MFR:
Schneider Electric
MFR #:
NSYEBCP27628
UPC:
785901673927
Item #:
1088467

Availability

Location Available Qty
Available Available to Order

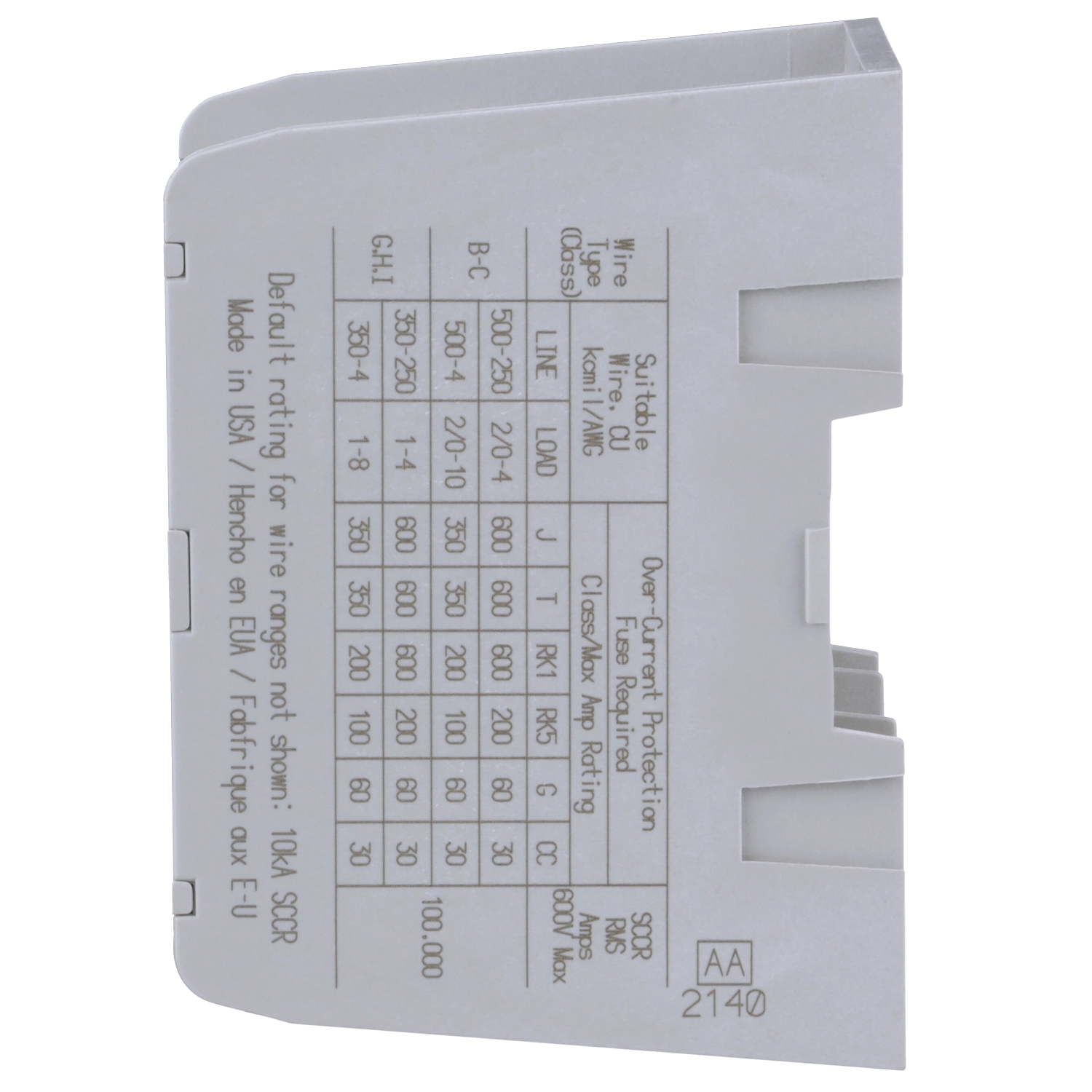

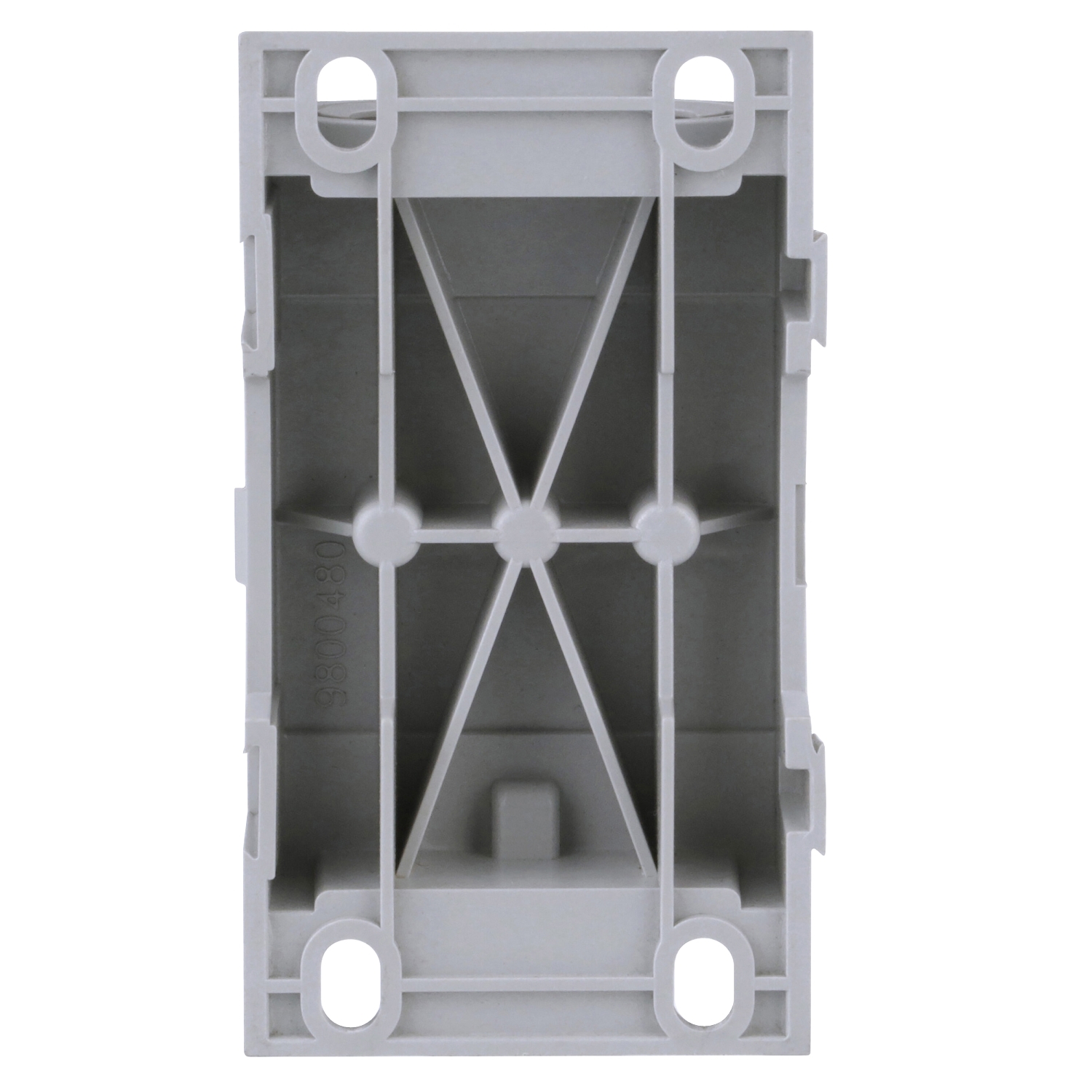

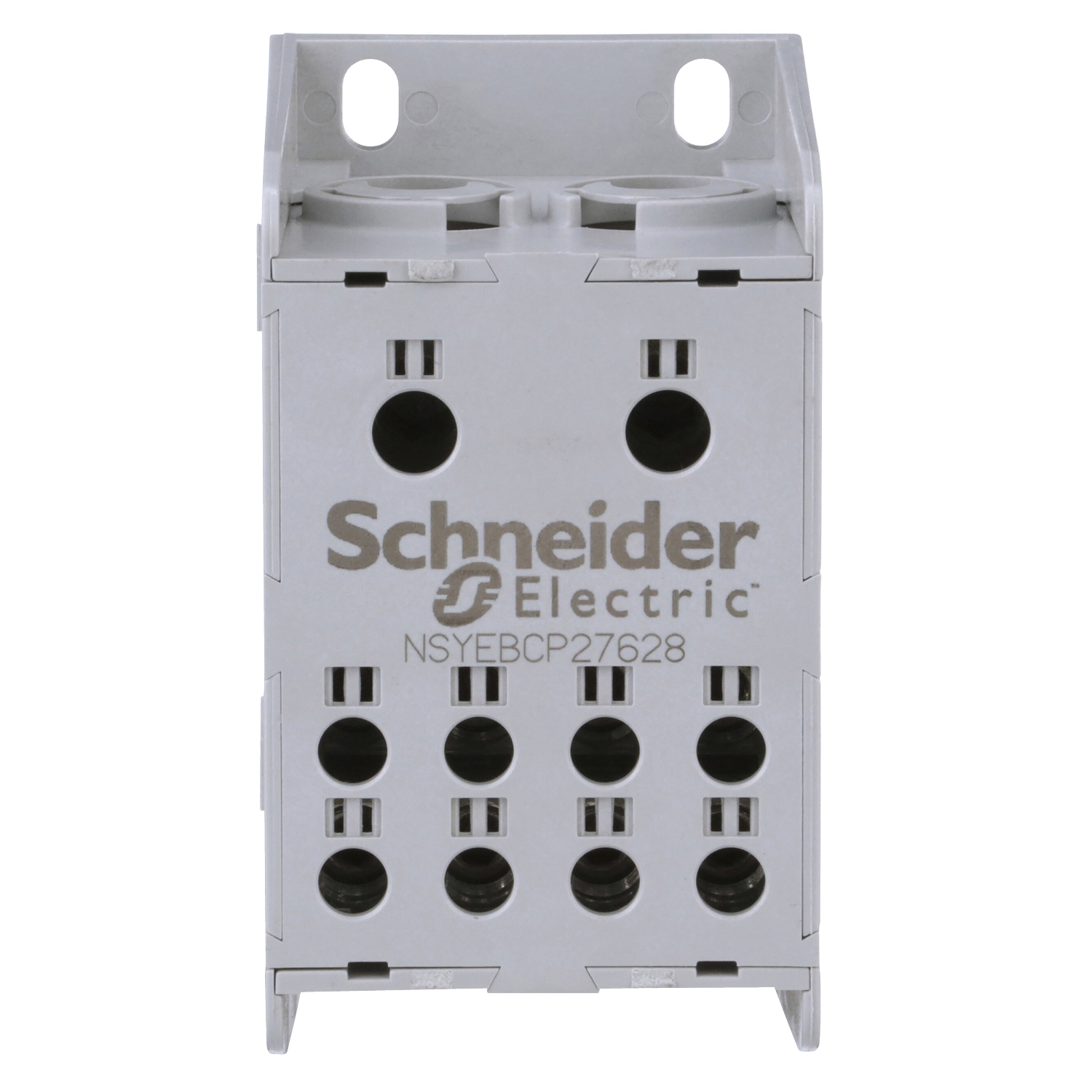

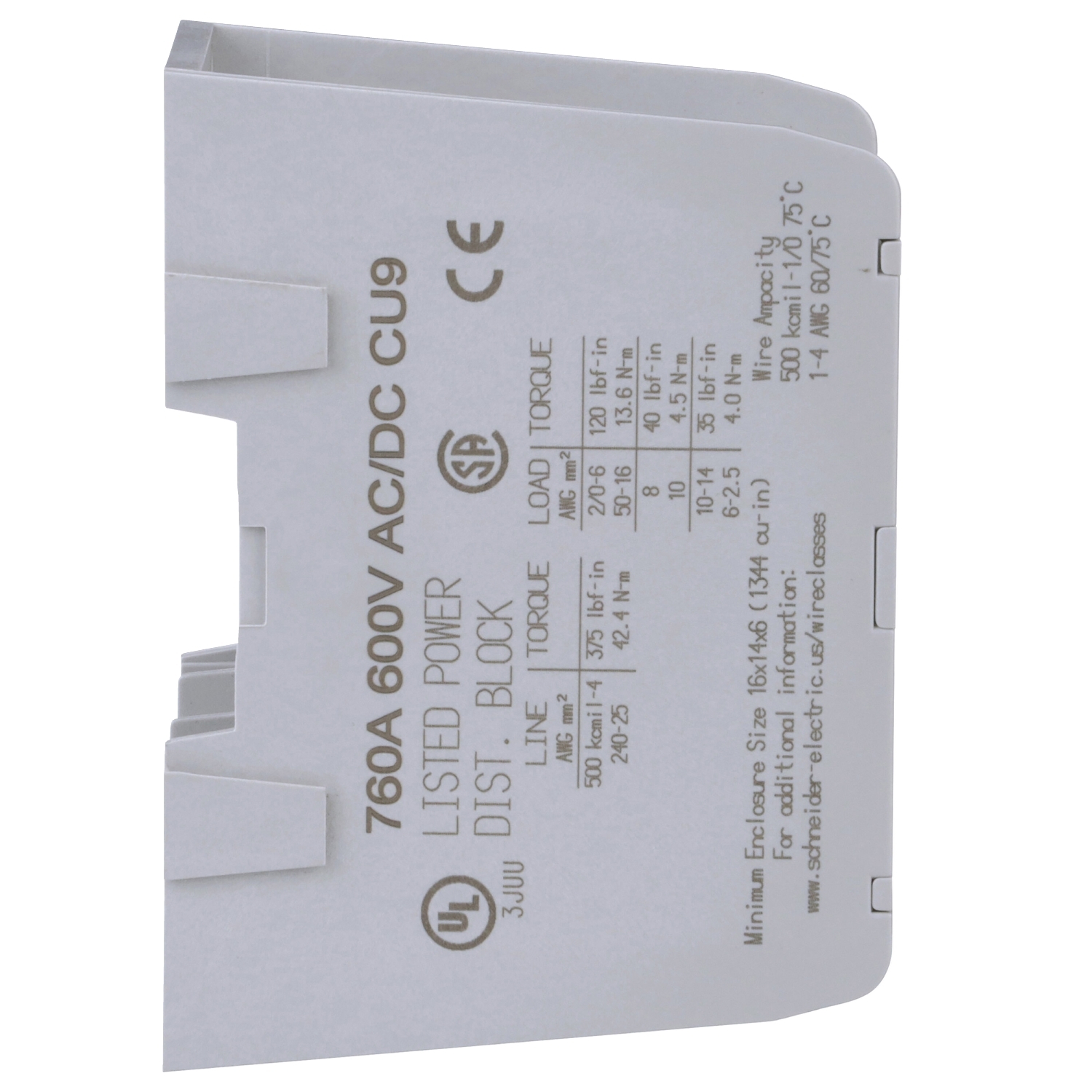

NSYEB power distribution blocks are enclosed IEC versions of our NEMA 9080 power distribution blocks, which are finger safe. The terminals of these power terminal blocks are finger safe from the front according to IP20. They are one pole modular units with an interlocking dovetail feature that enables ganging of the blocks to create multipole configurations according to application requirements. They have Short-Circuit Current Ratings (SCCR) up to 100 kA with fuses and circuit breakers. Refer to the catalog for details on this. The lugs in these blocks are available with either copper or aluminum. This block has a tin plated copper lug. The line side lug of this block is rated to 760A at 600 V when copper wire is used. Each of the two line side terminals will accept 4 AWG to 500 kcmil copper wires. Each of the eight load side terminals will accept 14 to 2/0 AWG copper wires. This block can be mounted directly to a panel. This block is 4.63 inches tall, 2.61 inches wide and 3.35 inches deep. This block is UL Listed, CSA cerified and RoHS compliant.

Manuals and Documentation
Catalog Number NSYEBCP27628
Manufacturer Schneider Electric
Brand Schneider Electric
Country of Origin United States
Made in USA Yes
Material Thermoplastic block
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=467139196&lang=en-us
UPC 785901673927
GTIN 00785901673927
Width 2.61
Width UOM Inch
Height 4.63
Height UOM Inch
Depth 3.35 IN
