LV432593 Long Terminal Shiled, 3 Poles
- MFR:
- Schneider Electric
- MFR #:
- LV432593
- Item #:
- 1087938
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$382.24
each

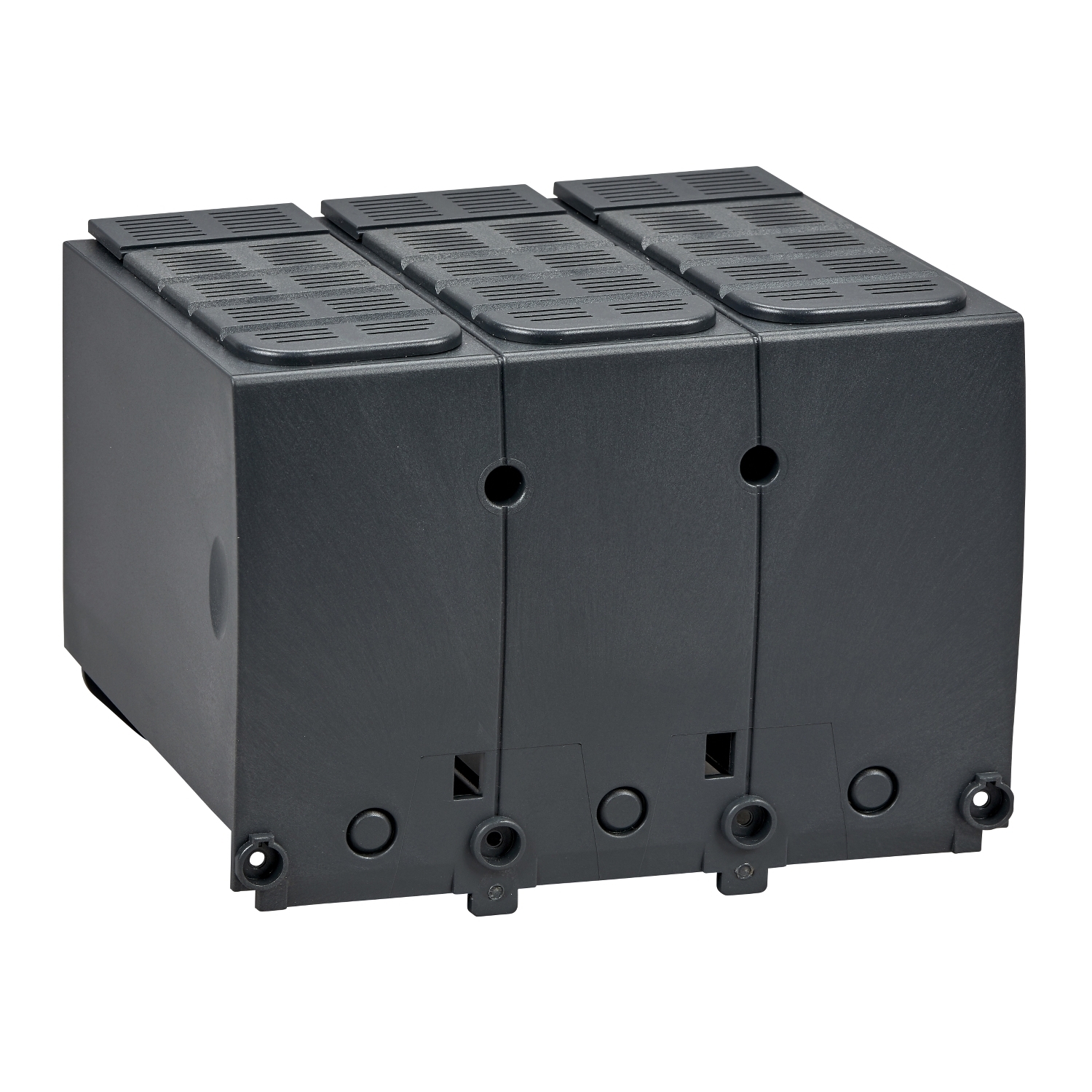

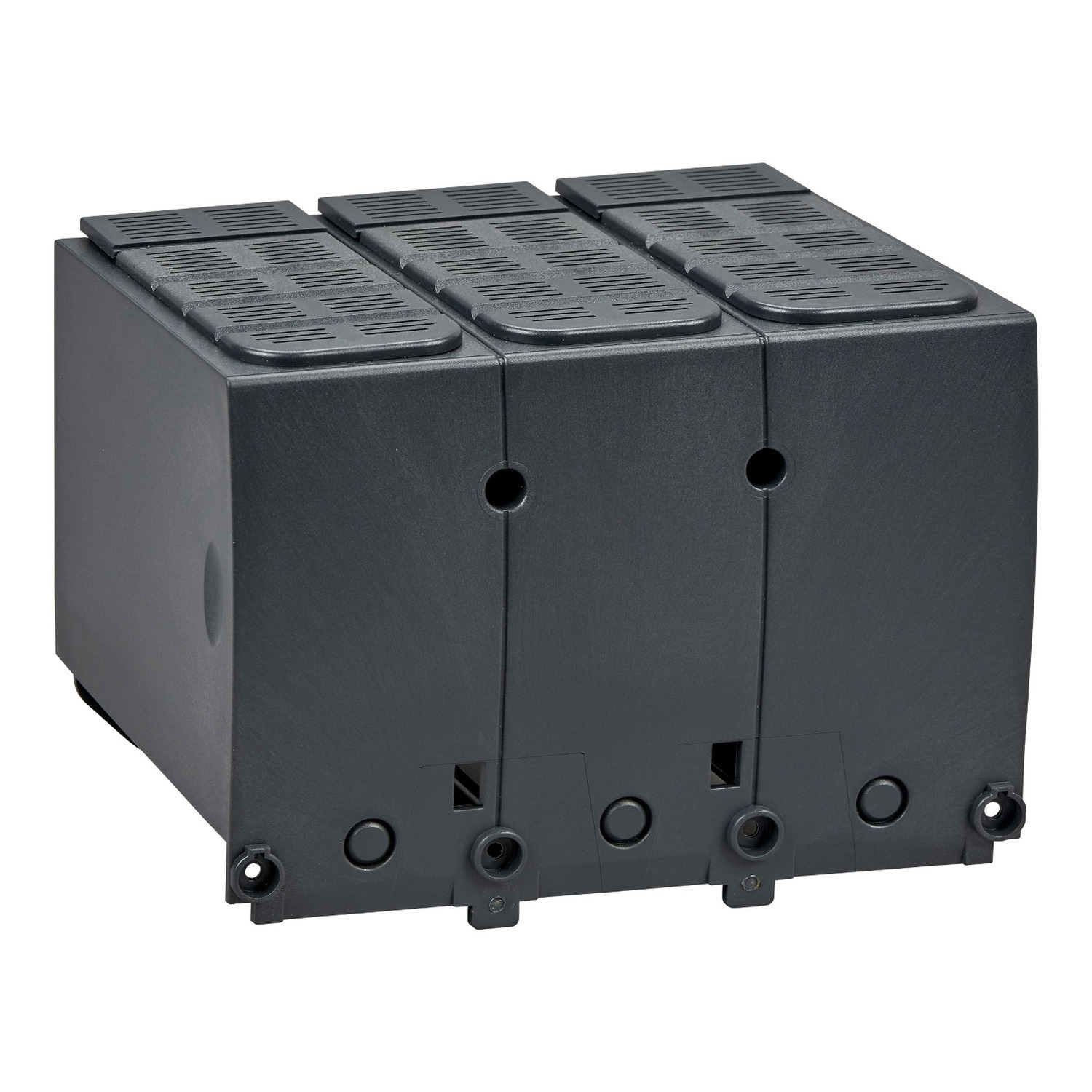

This is an insulation accessory for 3 poles Compact NSX 400/630 or EasyPact CVS 400/630. This long terminal shield protects against direct contact with power circuit It is used for front connection with cables or insulated bars. It can be mounted upstream and downstream of fixed, plug-in or withdrawable devices. It allows to reach the clearance distance requested by IEC 60947-2 standard. The pitch is 45mm. It provides IP40 degree of protection and IK07 mechanical impact protection.
Manuals and Documentation
| Catalog Number | LV432593 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| Special Features | 1 |
| Standard | IP40 conforming to IEC 60529 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=850418&lang=en-us |
| GTIN | 03606480019951 |
| Item Type | Long terminal shield;Insulation accessories |
