Discontinued
AL800M23K PowerPact MasterPact Mechanical Lug Kit, 8 to 1/0 AWG, 14 to 1/0 AWG, For Use With 800 A M and P Frame Circuit Breaker
- MFR:
- Schneider Electric
- MFR #:
- 9013FHG49J69
- UPC:
- 785901409045
- Item #:
- 108707
Discontinued
AL800M23K PowerPact MasterPact Mechanical Lug Kit, 8 to 1/0 AWG, 14 to 1/0 AWG, For Use With 800 A M and P Frame Circuit Breaker
- MFR #:
- 9013FHG49J69
- UPC:
- 785901409045
- Item #:
- 108707
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |

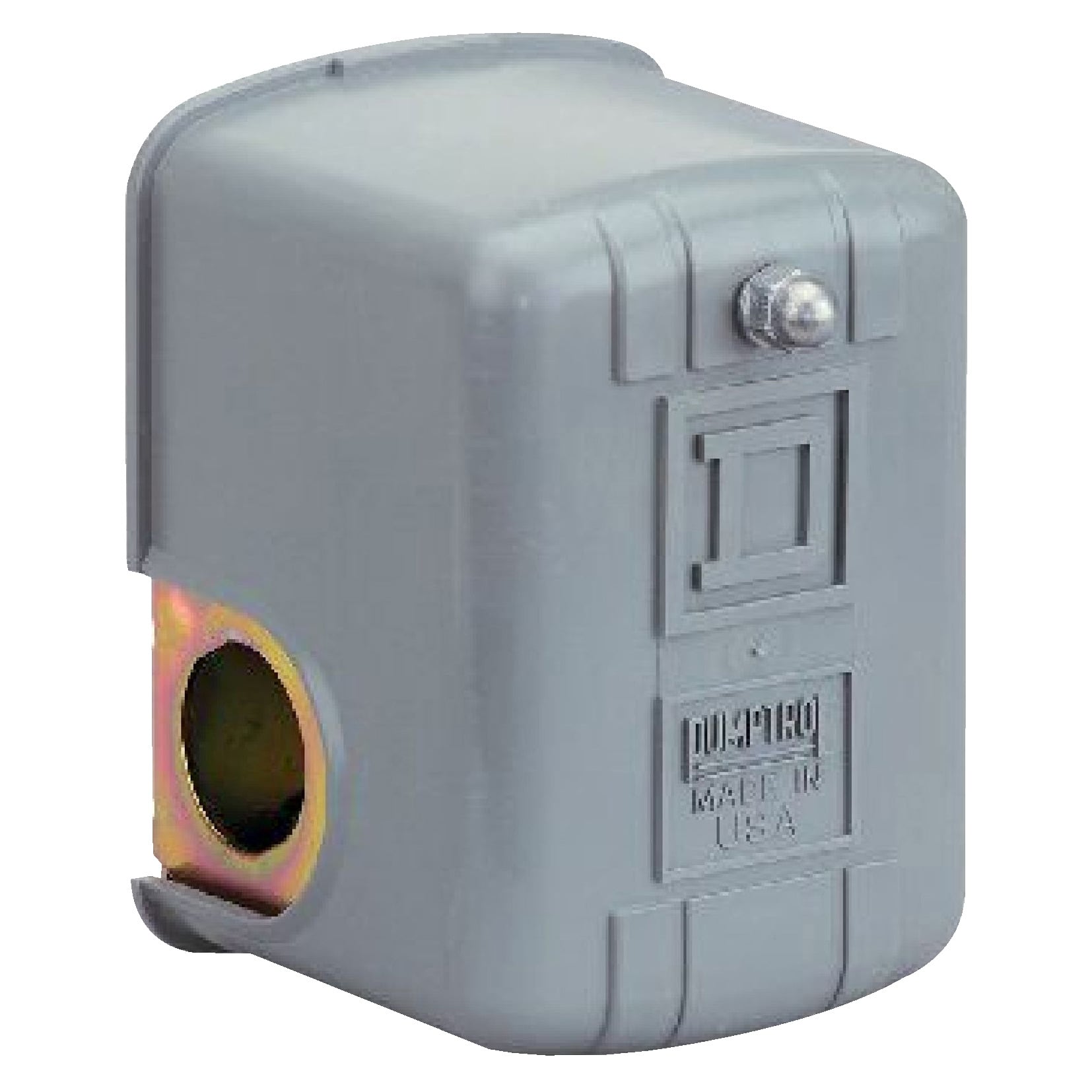

air compressor switch 9013FH - fixed differential - Off at 120 psi - low hp
Manuals and Documentation
| Catalog Number | 9013FHG49J69 |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | 1.5 KW 2 HP)230 V AC, 1 PHASE-1.1 KW 1.5 HP)115 V AC, 1 PHASE-1.5 KW 2 HP)115 V AC, 3 PHASE-2.2 KW 3 HP)230 V AC, 3 PHASE-0.75 KW 1 HP)460 V AC, 3 PHASE-0.75 KW 1 HP)575 V AC, 3 PHASE,CONTROL SMALL ELECTRICALLY DRIVEN AIR COMPRESSORS,REGULATION BETWEEN 2 THRESHOLDS |
| Contact Configuration | 2 NC, SNAP ACTION, DPST-DB, FORM YY |
| Contact Rating | A600 |
| Enclosure | NEMA 1 UL 50 |
| Operating Cycles | 10 CYC/MN |
| Process Connection | 0.25 INCH NPT EXTERNAL UL 508 |
| Special Features | - |
| Standard | CE-UL 508,IP20 IEC 60529,UL LISTED FILE E12158-CSA FILE LR25490 |
| UPC | 785901409045 |
| GTIN | 00785901409045 |
| Item Type | ELECTROMECHANICAL PRESSURE SWITCH,FIXED DIFFERENTIAL |
| Environmental Conditions | GENERAL PURPOSE (INDOOR) |
| Operating Temperature | -33-257 A Degrees F |
| System Pressure | 200 PSI |
