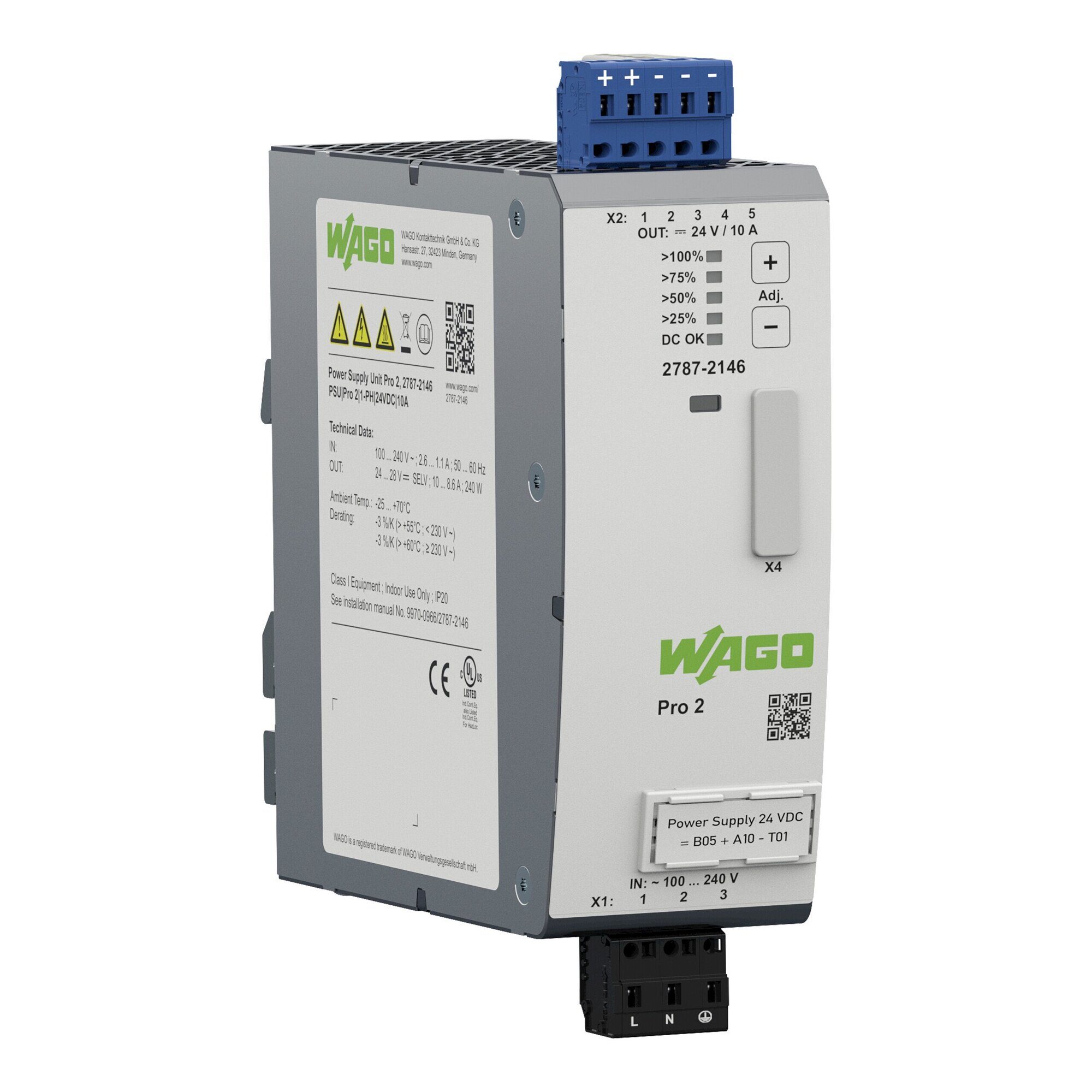

Power supply with TopBoost, PowerBoost and configurable overload behavior with pluggable connection technology.
Features
- Configurable digital signal input and output, optical status indication, function keys
- Communication interface for configuration and monitoring
- Optional connection to IO-Link, EtherNet/IP, Modbus TCP or Modbus RTU
- Suitable for both parallel and series operation
- Natural convection cooling when horizontally mounted
- Mounting Type: DIN-35 Rail
- Electrically isolated output voltage (SELV/PELV) per EN 61010-2-201/UL 61010-2-201
- Marker slot for WAGO marking cards (WMB) and WAGO marking strips
| Catalog Number | 2787-2146 |
| Manufacturer | WAGO |
| Brand | WAGO |
| Country of Origin | China |
| Made in USA | No |
| Conductor Range | 12-28 AWG Conductor Range |
| Connection | Terminals (Cage-clamp) |
| Input Voltage | 130-373 VDC |
| Mounting | Din Rail |
| Output Voltage | 24 VDC |
| RoHS Indicator | Yes |
| GTIN | 04055143907330 |
| Item Type | Power supply unit |
| Dimensions | H130mm x W50mm x D130mm|H5.118" x W1.969" x D5.118" |
| Width | 1.969 |
| Width UOM | Inch |
| Height | 130 mm / 5.118 inches |
| Height UOM | Inch |
| Weight | 1385 |
| Weight UOM | Grams |
