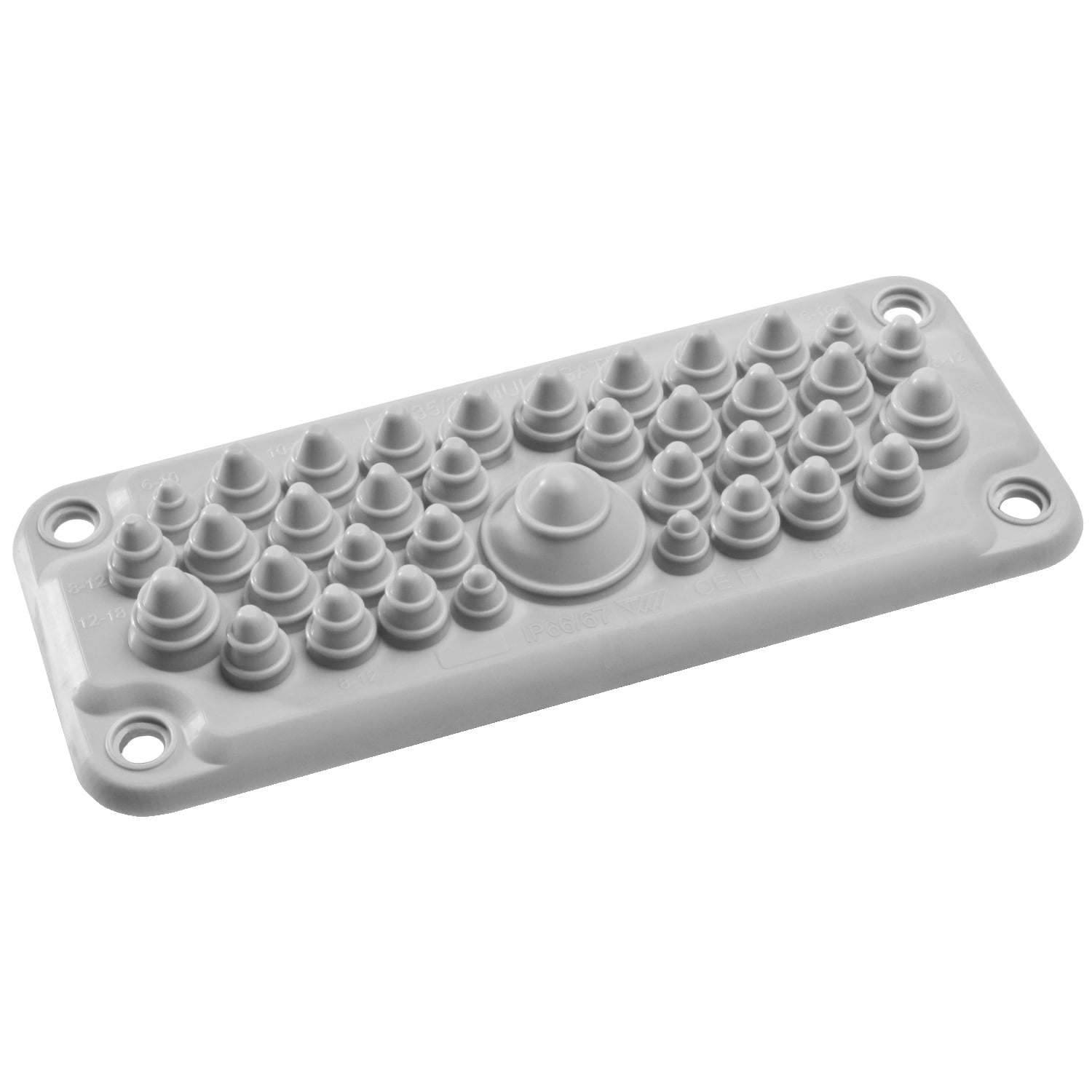

NSYAECPFLT35 Type FL21 Cable Entry Membrane With 37-Entrances, For Use With Spacial S3D, CRN Compact Enclosure, Spacial SF Enclosure, IP66, Thermoplastic Elastomer, Gray

MFR:
Schneider Electric
MFR #:
NSYAECPFLT35
Item #:
1086260

Availability

Location Available Qty
Available Available to Order
$34.27 each

Cable entry membrane type FL21 for Spatial S3D, Spatial CRN and Spatial SF enclosures. The 37 entrances allow multi-purpose use with cables ranging from 6 mm to 32 mm in diameter. The 37 entry diameter are the following: 4 entry ranging from 6 mm to 10 mm, 14 entry ranging from 8 mm to 12 mm, 16 entry ranging from 10 mm to 14 mm, 2 entry ranging from 12 mm to 18 mm and 1 entry ranging 17 mm to 32 mm. IP66 protection against water and dust is maintained according to IEC 60529. The product can be used in a temperature range from -40 C to +100 C and have a flame resistance of 650 C according to UL 94 V0. The cut-out dimensions are 214 mm x 90 mm, and the external dimensions are 214 mm x 88 mm. The cable entry can be installed on cable gland plate adapter or directly on enclosure. Fixing elements are delivered with the product.

Manuals and Documentation
Catalog Number NSYAECPFLT35
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=10176779&lang=en-us
GTIN 03606480169045
Width External: 214 mm;fixing center: 194 mm
Depth Fixing center : 62 mm;external : 88 mm
