Discontinued

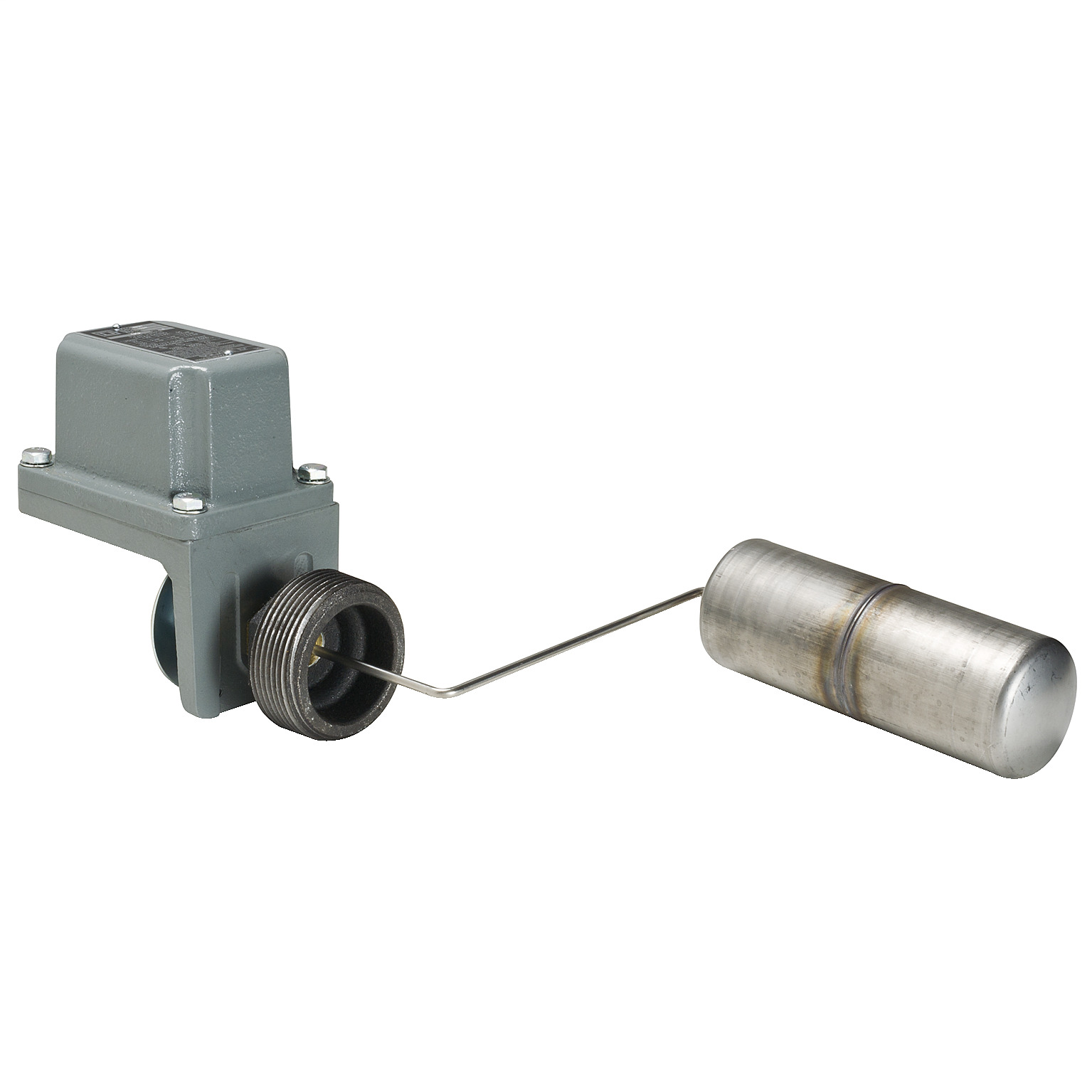

9037HW31Z20 Adjustable Liquid Level Control Float Switch With Screw-in Bushing, 575 V AC Input, -22 to 220 deg F
- MFR:
- Schneider Electric
- MFR #:
- 9037HW31Z20
- UPC:
- 785901991953
- Item #:
- 1085630
Discontinued
9037HW31Z20 Adjustable Liquid Level Control Float Switch With Screw-in Bushing, 575 V AC Input, -22 to 220 deg F
- MFR #:
- 9037HW31Z20
- UPC:
- 785901991953
- Item #:
- 1085630
closed tank - NEMA 4 - screw-in bushing - 2 NC DPST-DB contacts
Manuals and Documentation
| Catalog Number | 9037HW31Z20 |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Country of Origin | Mexico |
| Made in USA | No |
| Action | CONTACTS CLOSE ON LIQUID RISE |
| Application | 1.5 KW 2 HP)115 V AC, 1 PHASE-2.2 KW 3 HP)115 V AC, 3 PHASE-2.2 KW 3 HP)230 V AC, 1 PHASE-3.7 KW 5 HP)230 V AC, 3 PHASE-0.75 KW 1 HP)460 V AC, 3 PHASE-0.75 KW 1 HP)475 V AC, 3 PHASE-0.18 KW 0.25 HP)32 V DC-0.37 KW 0.5 HP)115 V DC-0.37 KW 0.5 HP)230 V DC,CLOSED TANK,FOR CLOSED TANK,LIQUID LEVEL CONTROL,POWER CIRCUIT |
| Connection | 4 TERMINALS,SCREW-CLAMP TERMINALS 10 AWG |
| Mounting | Screw |
| Special Features | 20 A CARTRIDGE FUSE GG,SET OF 1,WITHOUT |
| Standard | CSA FILE LR25490-UL LISTED FILE E12158,NEMA 4 UL 50,UL 508-CE |
| UPC | 785901991953 |
| GTIN | 00785901991953 |
| Item Type | FLOAT SWITCH |
| Temperature Rating | -22-220 A Degrees F |
