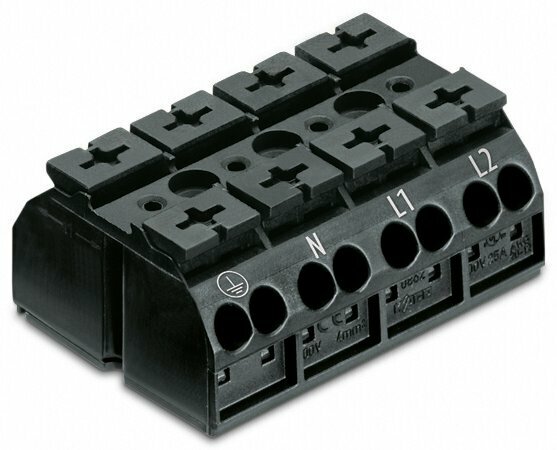

Feed-through/thru + neutral-through + ground/earthing chassis-mount terminal strip with 1-deck/level - with "PE-N-L1-L2" marking - Wago (862 series) - Black - 2 feed-through poles + neutral-through + protective-earth (2P+N+PE) / 16-wires (8 push-in + 8 push-in) (8+8) - for 0.5mm2...4mm2 / for #20AWG...#12AWG - Rated current 32A - with Push-in CAGE CLAMP spring connections - 3mm screw+nut mounting
- MFR:
- WAGO
- MFR #:
- 862-1504
- Item #:
- 1084030
Feed-through/thru + neutral-through + ground/earthing chassis-mount terminal strip with 1-deck/level - with "PE-N-L1-L2" marking - Wago (862 series) - Black - 2 feed-through poles + neutral-through + protective-earth (2P+N+PE) / 16-wires (8 push-in + 8 push-in) (8+8) - for 0.5mm2...4mm2 / for #20AWG...#12AWG - Rated current 32A - with Push-in CAGE CLAMP spring connections - 3mm screw+nut mounting
- MFR #:
- 862-1504
- Item #:
- 1084030
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$2.56
each
| Catalog Number | 862-1504 |
| Manufacturer | WAGO |
| Brand | WAGO |
| Country of Origin | Germany |
| Made in USA | No |
| Actuator | Push-button |
| Color | black |
| Conductor Material | Copper |
| Conductor Range | 12-20 AWG Conductor Range |
| Connection | Terminals (Cage-clamp) |
| Current Rating | 32 A |
| Material | Polyamide (PA66) |
| RoHS Indicator | Yes |
| GTIN | 4044918509480 |
| Item Type | Terminal strip |
| Dimensions | H22.3mm x W48mm x D35mm |
| Width | 1.89 |
| Width UOM | Inch |
| Depth | 35 mm / 1.378 inches |
| Depth UOM | Inch |
| Weight | 27.23 |
| Weight UOM | Grams |
| Voltage Rating | 500 |
