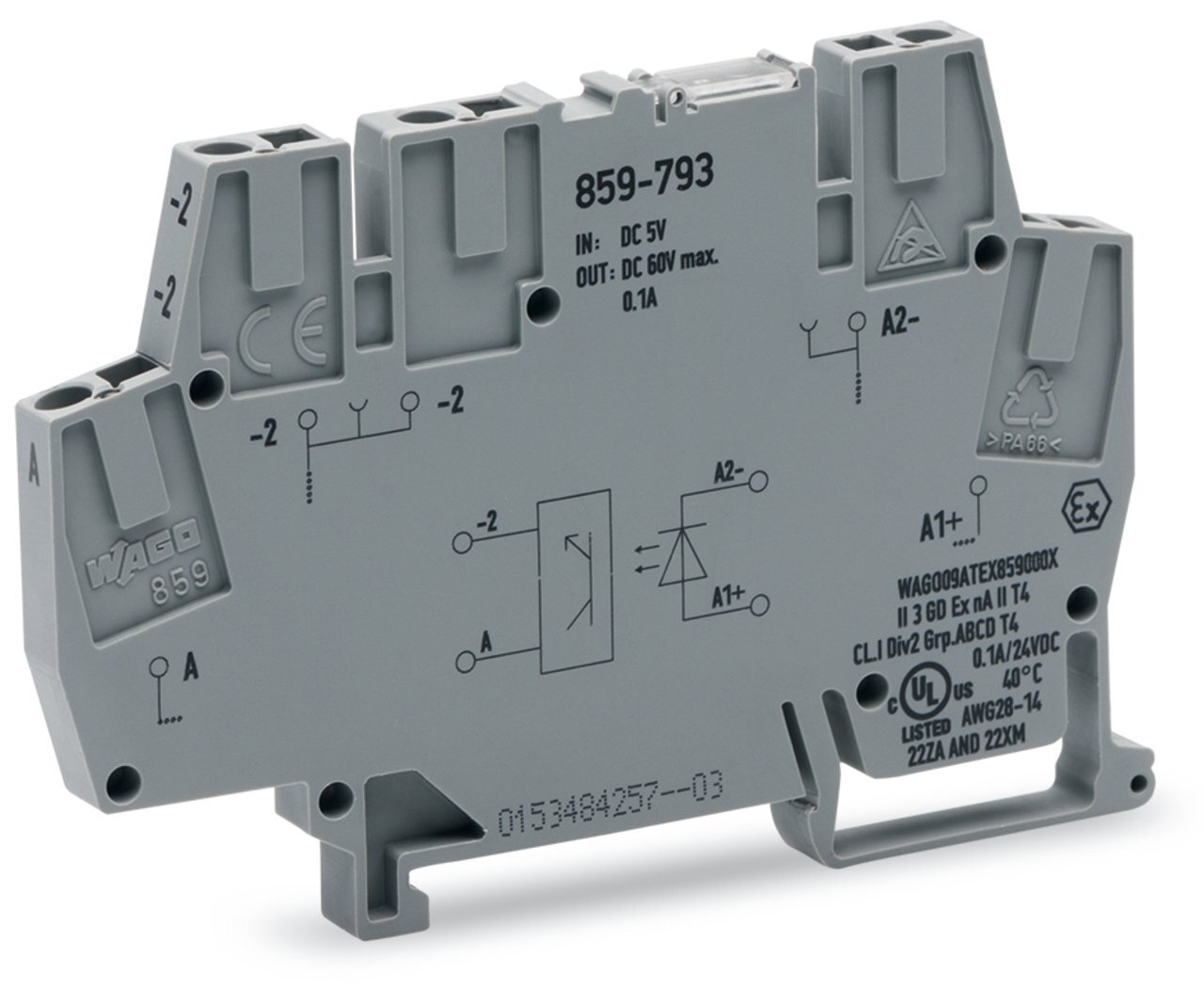

Optocoupler module; Nominal input voltage: 5 VDC; Output voltage range: 3 60 VDC; Limiting continuous current: 0.1 A; 2-wire connection; Railway; Module width: 6 mm; gray
- MFR:
- WAGO
- MFR #:
- 859-793
- Item #:
- 1084022
Optocoupler module; Nominal input voltage: 5 VDC; Output voltage range: 3 60 VDC; Limiting continuous current: 0.1 A; 2-wire connection; Railway; Module width: 6 mm; gray
- MFR #:
- 859-793
- Item #:
- 1084022
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
| Catalog Number | 859-793 |
| Manufacturer | WAGO |
| Brand | WAGO |
| Country of Origin | Germany |
| Made in USA | No |
| Color | gray |
| Conductor Range | 14-28 AWG Conductor Range |
| Connection | Fixed|Terminals (Cage-clamp) |
| Insulation | Basic insulation |
| Mounting | Din Rail |
| RoHS Indicator | Yes |
| GTIN | 04055143606271 |
| Item Type | Solid State Relay (SSR) |
| Dimensions | H91mm x W6mm x D56mm|6mm width |
| Width | 0.236 |
| Width UOM | Inch |
| Height | 91 mm / 3.583 inches |
| Height UOM | Inch |
| Weight | 17.699 |
| Weight UOM | Grams |
