Bridgeport

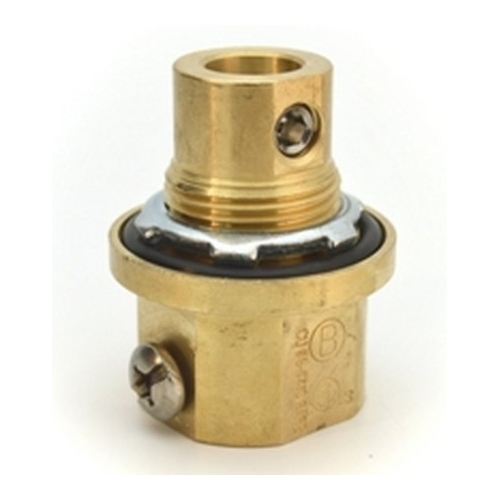

MCH-075 Bridgeport Raintight Grounding Connector With Stainless Steel Set Screws and Steel Locknut Buna N Sealing Ring, 6 to 4/0 AWG Conductor, Brass

MFR:
NSi Industries
MFR #:
MCH-075
UPC:
781747023452
Item #:
108309

Availability

Location Available Qty
Available Available to Order
$68.1028 each

3/4 Brass Alloy grounding fitting with stainless steel set screws and steel locknut Buna N sealing ring. NPT threads

Manuals and Documentation
Catalog Number MCH-075
Manufacturer NSi Industries
Brand Bridgeport
Country of Origin China
Made in USA No
Application The MCH-075 is listed for use in wet & dry locations as a connector for rigid metal conduit or EMT with a Bridgeport Fittings connector. The MCH-075 will provide a wet locations seal when installed with a rated device or enclosure. Rigid Metallic raceways which contain Ground Electrode Conductors (G.E.C.) are required to be bonded at the enclosure and where the conductor exits the raceway for attachment to the ground electrode. The MCH-075 & MCH-100 can be used in both applications: at the enclosure and at the end of the bonding conductor raceway. Not for use in concentric knock-out (K.O.) Patent Pending
Conductor Material Brass
Material Brass (MCH-075
NEMA Rating FB-1
Special Features Listed for use with Bridgeport Fittings Steel Dry and Wet Location Connectors
Standard cULus
RoHS URL https://ideadigitalasset.com/DAMRoot/Original/11932/10992_RoHS3_Compliance_Letter-Zinc_Malleable_Iron_Steel&Plastics-REV_R_5-11-21 (1).pdf
UPC 781747023452
GTIN 00781747023452
Item Type Grounding and Bonding Hubs
Size 3/4" with BPT Steel Wet or Dry locations connector
