Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$33.20
each

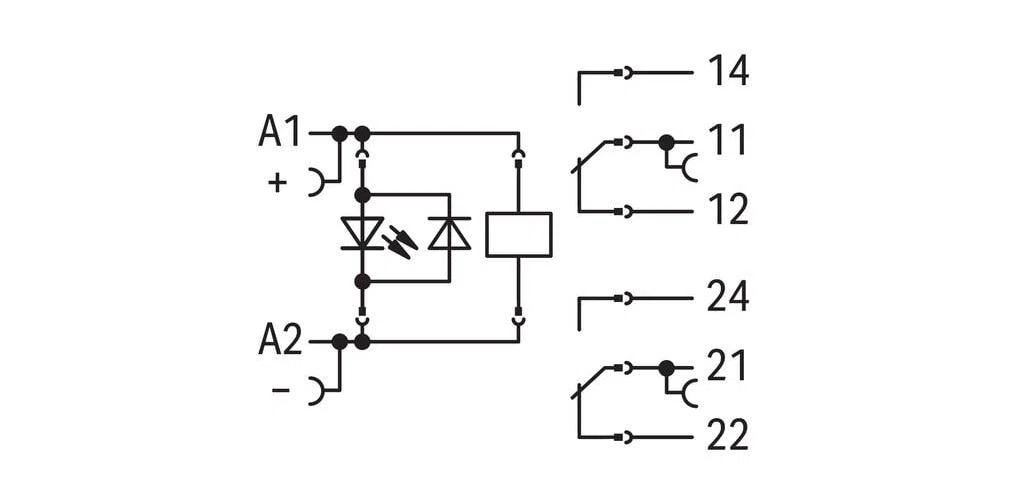

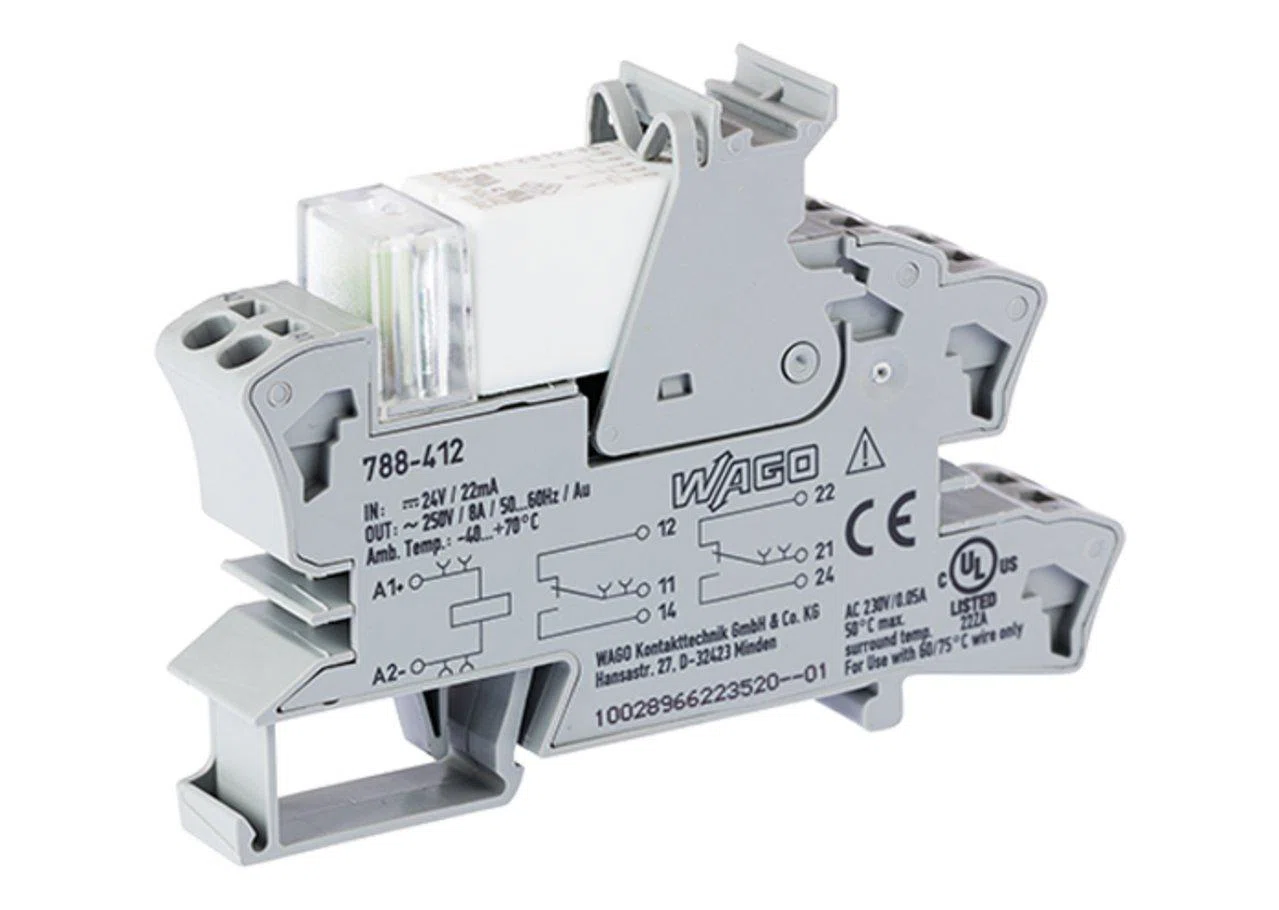

WAGO, 788-412, Relay Module, 24 V DC, 8 A, Red LED Indicator, -25 to 50 deg C, Push-In Connection, IP20 Enclosure, 35 mm DIN Rail Mounting, Gray, 3.386 in H x 0.591 in W x 2.126 in D Dimensions
| Manufacturer Part Number | 788-412 |
| Brand | WAGO |
| Manufacturer | WAGO Corporation |
| EAN | 4045454352165 |
| Amperage Rating | 8 A |
| Color | Gray |
| Dimensions | 3.386 in H x 0.591 in W x 2.126 in D |
| Enclosure Type | IP20 |
| Mounting Type | 35 mm DIN Rail |
| Temperature Rating | -25 to 50 deg C |
| Voltage Rating | 24 V DC |
| Alternative Part Number | 51178569 | 18645805 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Standards Approvals | EN 61010-2-201 | EN 61810-1 | EN 61373 | UL 508 | RoHS Compliant | IP20 |
| Connection Type | Push-In |
| Indicator | Red LED |
