750-976 750, Solid/Stranded Conductor, Plastic
- MFR:
- WAGO Corporation
- MFR #:
- 750-976
- Item #:
- 1081247
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$35.67
each

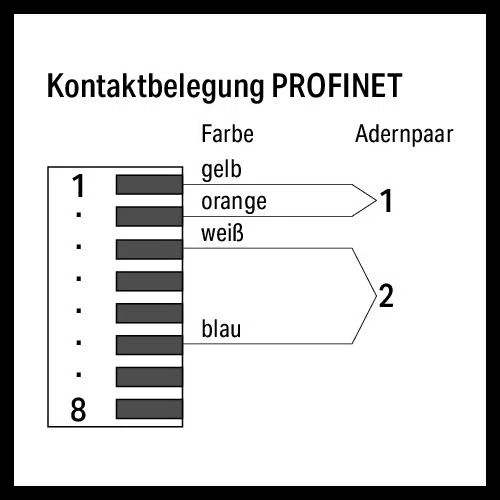

PROFINET RJ-45 connector, IP20; ETHERNET 10/100 Mbit/s; for field assembly Versatile RJ-45 connector for industrial, office and building wiring applications. This compact RJ-45 PROFINET Connector uses IDC technology for easy field assembly. Conductor termination is performed without any tools. The connector fulfills all required standards and connects both solid and stranded conductors. The connector complies with Category 5e.
Manuals and Documentation
| Manufacturer Part Number | 750-976 |
| Brand | WAGO |
| Manufacturer | WAGO Corporation |
| EAN | 4045454988173 |
| Cable Type | Cat 5e |
| Conductor Size | 26/1 to 23/1 AWG, 26/7 to 22/7 AWG |
| Conductor Type | Solid/Stranded |

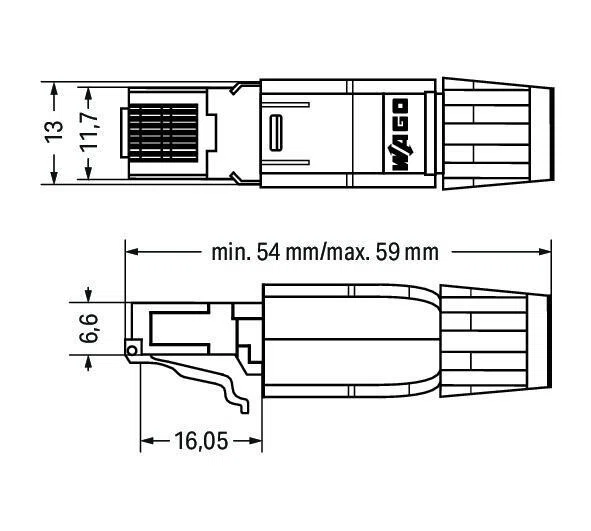

| Dimensions | 14 mm H x 14 mm W x 59 mm D |
| Material | Plastic |
| Series | 750 |
| Temperature Rating | -20 to 70 deg C Operating, -40 to 85 deg C Storage |
| Alternative Part Number | 7500976 | 18643939 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Standards Approvals | RoHS Compliant,No Exemption | IP20 | IEC 60068-2-6 |
