Appleton

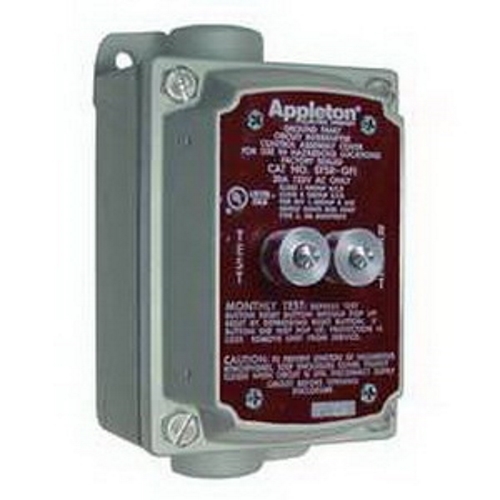

Factory Sealed Fault Circuit Interrupter, 125 VAC, 20 A, Aluminum

MFR:
Appleton Electric
MFR #:
EFSR-GFI
UPC:
781381604987
Item #:
108122

Availability

Location Available Qty
Available Available to Order
$2,370.63 each

Appleton Ground Fault Interrupter Cover/Device, Voltage Rating: 125 VAC, Amperage Rating: 20 AMP, Frequency Rating: 50 - 60 HZ, Trip Type: 5 MILAMP Trip Setting, Enclosure: NEMA 3, 3R, 7BCD, 9EFG, Material: Cast Copperfree (Less Than 4/10 Of 1 PC

Manuals and Documentation
Catalog Number EFSR-GFI
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Amperage Rating 20
Application For U-Line 20 AMP Receptacles
Enclosure NEMA 3, 3R, 7BCD, 9EFG
Special Features 5 MILAMP Trip setting; Provides required ground fault protection for portable electrically-operated devices; For ground fault protection in hazardous locations; Well suited for use in highly corrosive atmospheres and wet locations; Factory sealed construction; No external seals are required; Arcing is confined within the device's interior sealed chamber; Smooth-operating test and reset buttons; Can be installed in standard EFD Series mounting boxes; Cover bolts, test and reset buttons and shafts are made up of stainless steel; Cover may be used with other EFD boxes and U-Line receptacles
Standard Class I, Group B; Class I, Groups C, D; Class II, Groups E, F, G; Class III; UL Listed: E81751; UL Standard: 943, 1203
UPC 781381604987
GTIN 00781381604987
Item Type Ground Fault Interrupter Cover/Device
Voltage Rating 125
