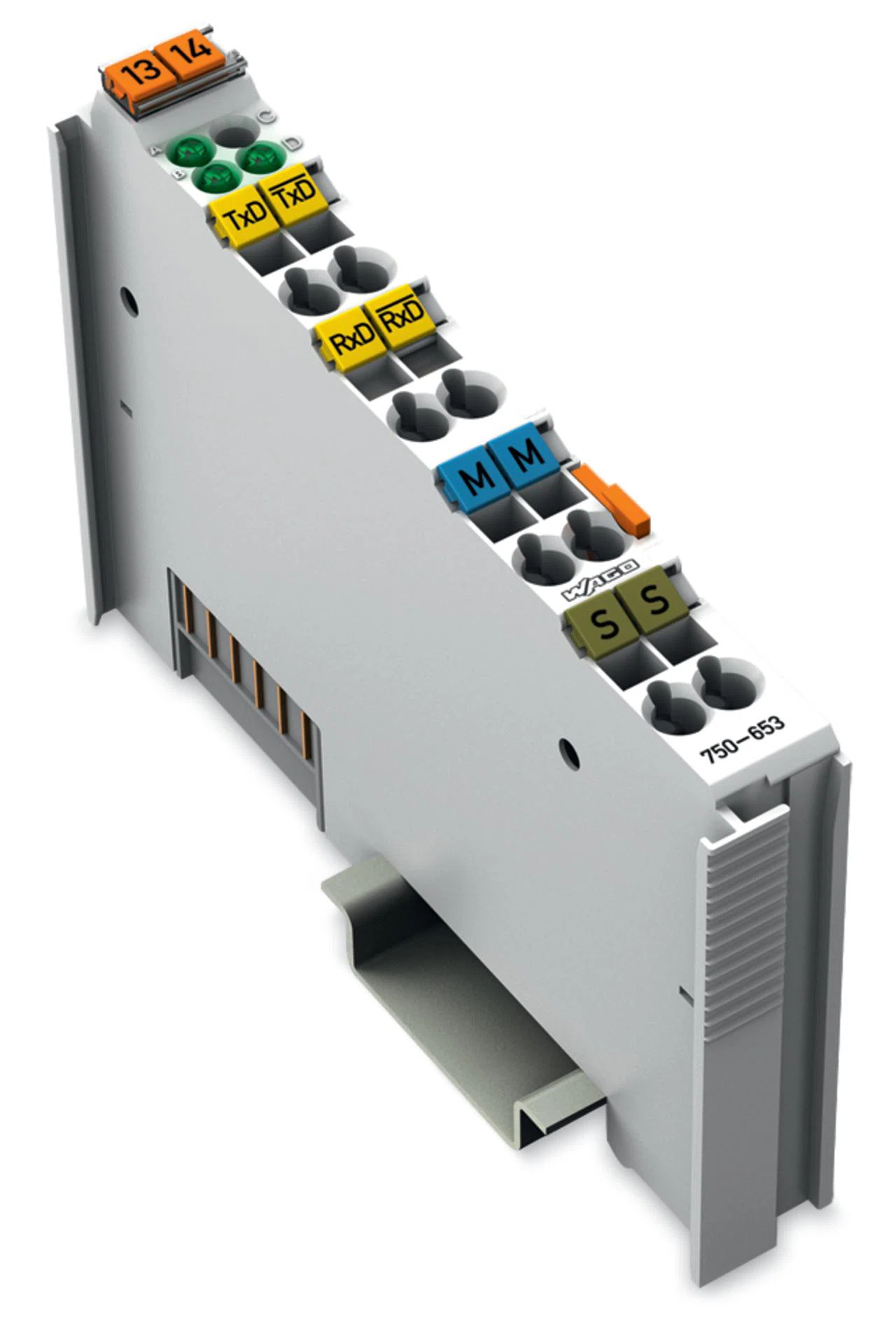

750-653 750 RS-485, 5 V DC, 9600 baud Communication
- MFR:
- WAGO Corporation
- MFR #:
- 750-653
- Item #:
- 1081152
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$674.60
each
RS-485 Serial Interface; 9600 baud; None; 8/1 bits The module's built-in interface connects to any device equipped with an RS-485 serial interface. The interface operates in accordance with both TIA/EIA-485-A and DIN 66259 standards. The connected device communicates directly with the control unit via the fieldbus coupler. The active communication channel works independently of the higher-level fieldbus system and allows full duplex operation up to 9600 baud. The RS-485 interface guarantees high interference immunity via electrically isolated signals. The shield directly connects to the DIN-rail.
Manuals and Documentation
| Manufacturer Part Number | 750-653 |
| Brand | WAGO |
| Manufacturer | WAGO Corporation |
| EAN | 4045454519582 |
| Color | Light Gray |
| Dimensions | 3.937 in H x 0.472 in W x 2.748 in D |
| Material | Polycarbonate/Polyamide 6.6 |
| Series | 750 |
| Temperature Rating | 0 to 55 deg C |
| Type | RS-485 |
| Voltage Rating | 5 V DC |
| Alternative Part Number | 51188859 | 18643829 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Standards Approvals | RoHS Compliant,With Exemption | DIN 66259 | IP20 | IEC 60068-2-6 | IEC 60068-2-27 | EN 61000-6-2 | IEC 60068-2-42 | IEC 60068-2-43 | IEC 61131-2 |
| Application | For marine applications |
| Communication Rate | 9600 baud |
