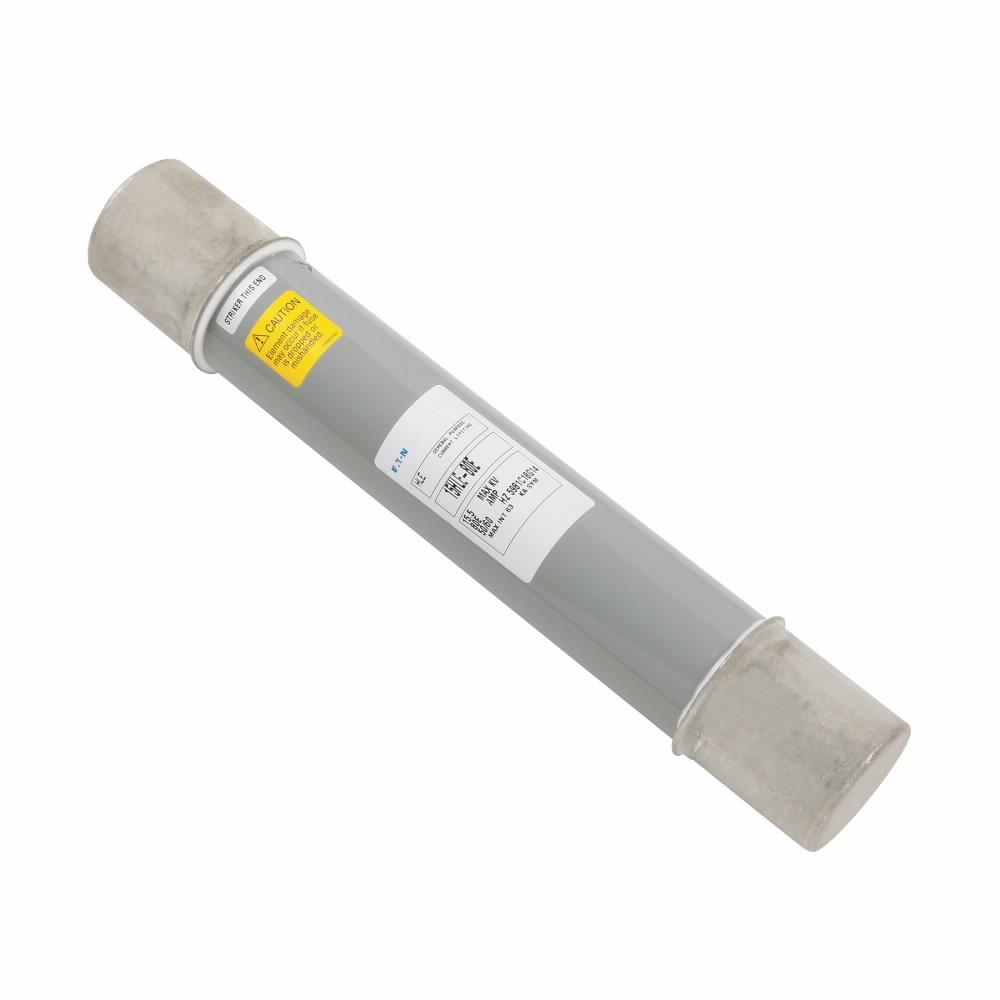

MV155F1DBX100E Current Limiting E-Rated Single Barrel Fuse, 100 A, 15.5 kV, 50 kAIC Interrupt, Class: E, Tube Body
- MFR:
- Eaton Bussmann
- MFR #:
- MV155F1DBX100E
- UPC:
- 051712269360
- Item #:
- 107782
MV155F1DBX100E Current Limiting E-Rated Single Barrel Fuse, 100 A, 15.5 kV, 50 kAIC Interrupt, Class: E, Tube Body
- MFR #:
- MV155F1DBX100E
- UPC:
- 051712269360
- Item #:
- 107782
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$6,194.92
each
Our general purpose and full range E-Rated, current-limiting medium voltage fuses are designed for feeder circuit, switchgear and transformer protection. Construction types include ferrule, bolt-on and clip lock, with special application fuses available for use with AMPGARD motor starters.
| Catalog Number | MV155F1DBX100E |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton Bussmann Series |
| Country of Origin | Multiple |
| Made in USA | No |
| Amperage Rating | 100 |
| Application | Utility - Substations, Utility Transmission and Distribution |
| Connection | Ferrule end x ferrule end |
| Interrupt Rating | 50 kAIC |
| Material | Fiberglass tube |
| Special Features | Silver Ribbon Element, Silica Filler Housing |
| Standard | ANSI,Contact factory |
| UPC | 051712269360 |
| GTIN | 00051712269360 |
| Item Type | Fuse |
| Weight UOM | Pounds |
| Size | 3.00 In Diameter X 18.75 In Length |
| Voltage Rating | 15.5 kV |
