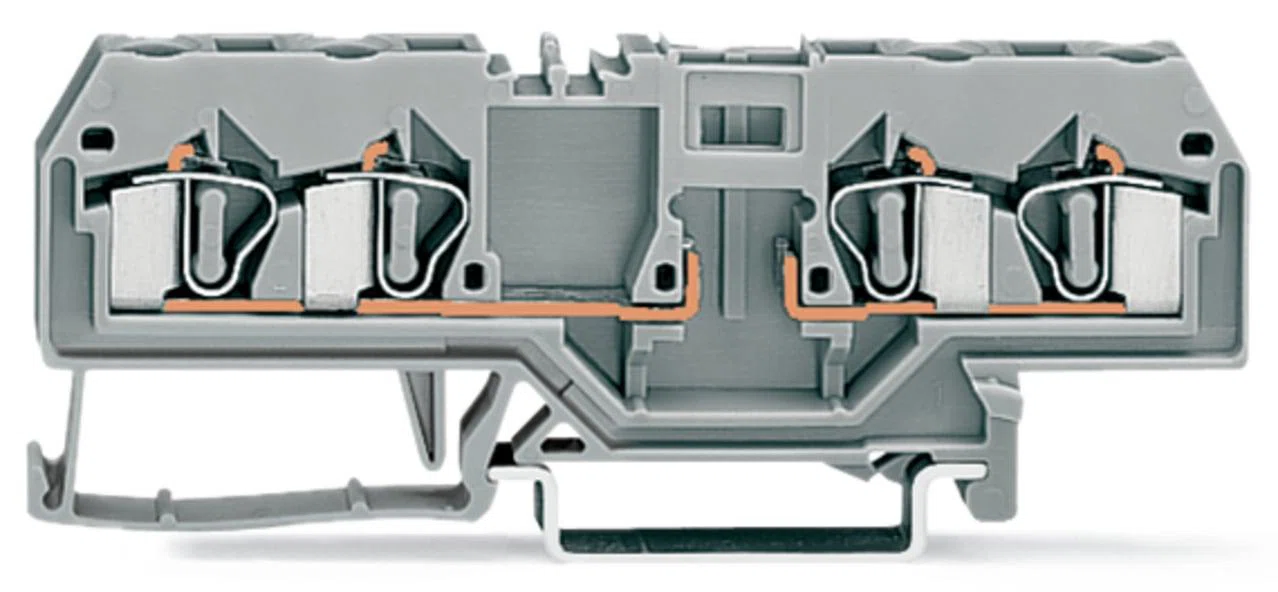

281-656 Horizontal, 400 V AC, 10 A, DIN Rail Mount

MFR:
WAGO Corporation
MFR #:
281-656
UPC:
508212149154
Item #:
1077716

Availability

Location Available Qty
Available Available to Order
$7.40 each

4-conductor carrier terminal block; for DIN-rail 35 x 15 and 35 x 7.5; 4 mm²; CAGE CLAMP®; 4,00 mm²; gray Basisklemme für Bausteine und Stecker Serie 281 mit CAGE CLAMP® Die Basisklemme für Bausteine und Stecker mit der Artikelnummer 281-656 ermöglicht eine fehlerfreie Elektroinstallation. Für den Leiteranschluss werden bei dieser Basisklemme für Bausteine und Stecker Abisolierlängen von 9 bis 10 mm  benötigt. Dieses Produkt basiert auf der CAGE CLAMP®-Technologie. Der bewährte und wartungsfreie CAGE CLAMP® Universalanschluss ermöglicht den Anschluss aller Leiterarten mit einer Käfigzugfeder. Eine Vorbehandlung der Leiter, z.B. durch das Aufcrimpen von Aderendhülsen, ist nicht erforderlich. In Abhängigkeit von der Leiterart eignet sich diese Basisklemme für Bausteine und Stecker für Leiterquerschnitte von 0,08 mm² bis 4 mm².

Manuals and Documentation

Features

  • 6 kV rated impulse voltage
  • Overvoltage category III/pollution 3 deg legend ratings
  • Front-entry wire type
  • 4 total number of connection points
  • 2 total number of potentials, 1 number of level
  • CAGE CLAMP® connection technology
  • Copper connectable conductor materials
  • 12 to 28 AWG solid/stranded conductor
  • 0.206 MJ fire load
  • Operating tool actuation type
  • 1.142 in height from upper-edge of DIN-35 rail
Manufacturer Part Number 281-656
Brand WAGO
Manufacturer WAGO Corporation
UPC 508212149154
Country Of Origin CN
Amperage Rating 10 A
Color Gray
Dimensions 0.236 in W x 3.38 in D
Material Polyamide 6.6
Mounting Type DIN Rail
Type Horizontal
Voltage Rating 400 V AC
Manufacturer Item Status Active
Country USA/Canada
Standards Approvals IEC/EN 60947-7-3 | RoHS Compliant
Wire Strip Length 0.35 to 0.39 in
