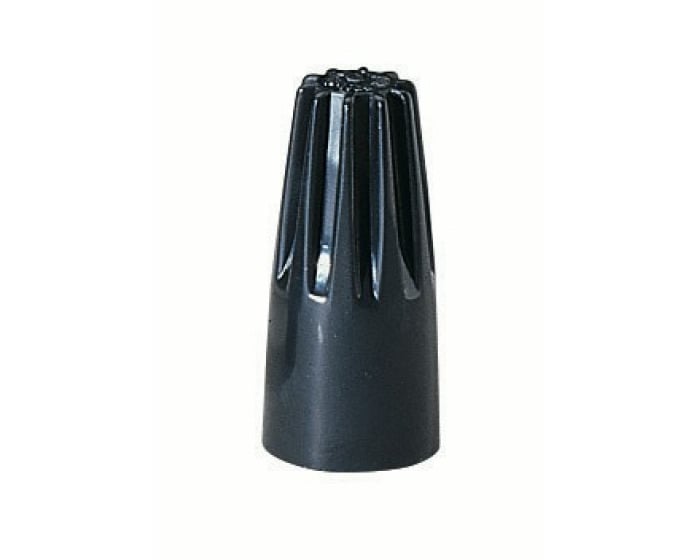

30-059 74B High Temperature Wire Connector, Positive Grip Shell, Fixed/Square Wire Spring, 22 to 12 AWG Wire Solid/Stranded Copper Wire, Thermoplastic Polyester
- MFR:
- Ideal Industries
- MFR #:
- 30-059
- UPC:
- 783250300594
- Item #:
- 107690
30-059 74B High Temperature Wire Connector, Positive Grip Shell, Fixed/Square Wire Spring, 22 to 12 AWG Wire Solid/Stranded Copper Wire, Thermoplastic Polyester
- MFR #:
- 30-059
- UPC:
- 783250300594
- Item #:
- 107690
Availability
| Location | Available Qty |
|---|---|
| Available | 100 |
The IDEAL Wire-Nut Wire Connector set new standards for innovation, quality and convenience when it was first introduced in 1928. As the first screw-on wire connector in America, it literally set the industry standard for years to come.With a fixed, square-wire spring and a positive grip shell, the Wire-Nut is perfect to twist-on with fingers for a secure connection that will last. The refined wire range makes it the best choice for fine stranded wire applications. The Wire-Nut also features a tough, flame-retardant thermoplastic shell that withstands environmental extremes and is reusable for easy circuit changes and addition.With five color-coded models available, Wire-Nut Wire Connectors will handle any job from as small as #22 gauge wire up to #6 gauge wire.Additionally, Models 71B, 72B, and 73B, in both color or black high-temp, are the only twist-on wire connectors rated for use in Air Handling Spaces. These connectors can be used on Class 2 or low-voltage connections inside plenums, ducts, and other environmental air handling spaces without the need for a box.The black high-temperature models are designed to withstand the extreme heat build-up found in high-wattage light fixtures and signs.
Manuals and Documentation
| Catalog Number | 30-059 |
| Manufacturer | Ideal Industries |
| Brand | Ideal |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Insulating or Joining 2 or more conductors in conditions where extreme heat buildup occurs such as high wattage fixtures and signs. |
| Color | Black |
| Conductor Range | 22 - 12 AWG, Min 2 - 20, MAX 3-14 |
| Material | THERMOPLASTIC POLYESTER |
| Number of Conductors | 1 to 6 |
| Special Features | Features: Fixed, Square-Wire Spring Creates Its Own Threads Maintains A Secure Positive Grip That Will Not Relax Over Time; No Pre-Twisting Required Positive Grip Design Provides Fast, Easy Installation; Deep Skirt Helps Protect Against Flash-Over; Reusable For Easy Circuit Changes And Additions; Tough, UL94V-0 Flame-Retardant Shell Rated At 150 Degree C (302 Degree F); UL Listed To 486C And CSA Certified To C22.2 #188;; Model Number: 59B; Width: 31/64 IN; Height: 1-1/16 IN |
| Standard | CSA Certified to C22.2 #188, UL Listed to 486C |
| RoHS URL | https://www.ideadigitalcontent.com/files/11020/US_ROHS_COMPLIANCE_STATEMENT_REV_2_23_2015.PDF |
| UPC | 783250300594 |
| GTIN | 00783250300594 |
| Item Type | High Temperature Twist-On |
| Environmental Conditions | Tough, UL 94V-0 Flame-Retardant Shell Rated At 150 DEG C (302 F) |
| Voltage Rating | 600 |
