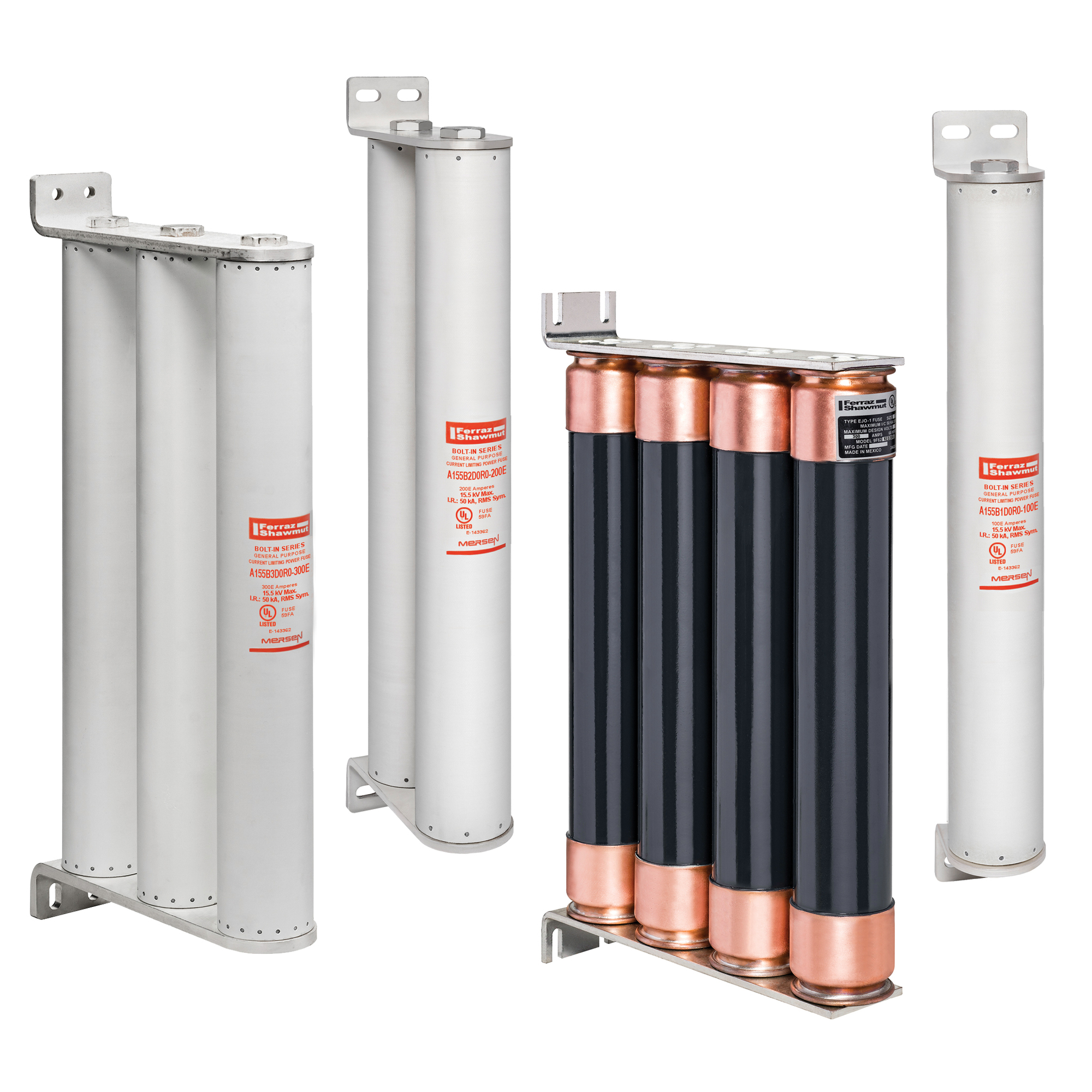

9F62KED300 Amp-Trap Current Limiting General Purpose Medium Voltage General Purpose Fuse, 300 A, 15.5 kV AC, 50 kA Interrupt, Class: E, Ferrule Body
- MFR:
- Mersen
- MFR #:
- 9F62KED300
- UPC:
- 782001395667
- Item #:
- 10733
9F62KED300 Amp-Trap Current Limiting General Purpose Medium Voltage General Purpose Fuse, 300 A, 15.5 kV AC, 50 kA Interrupt, Class: E, Ferrule Body
- MFR #:
- 9F62KED300
- UPC:
- 782001395667
- Item #:
- 10733
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Medium Voltage E-Rated Fuse 15500VAC 300A Bolt-On, Series: KED Visual Indicator Amp-Trap
Manuals and Documentation
| Catalog Number | 9F62KED300 |
| Manufacturer | Mersen |
| Brand | Mersen |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 300 |
| Application | Protection for 5.5kV to 15.5kV transformers or distribution systems |
| Connection | Blade |
| Interrupt Rating | 50 KA |
| Mounting | Bolt |
| Special Features | UL listed for compatibility with UL listed equipment Bolt-In mounting for direct connection to bus or terminals Current-limiting for superior equipment protection Non-venting for silent operation Metal embossed catalog number and manufacturing date for lasting identification Outdoor usage for the 9F62 Blown-fuse indicator to give positive identification of open fuse Amp trap: 1 lb tripped force - 0.44 Inch 9F62: 0.125 lb tripped force – 0.20 Inch |
| Standard | Some UL Listed to standard E143362 |
| UPC | 782001395667 |
| GTIN | 00782001395667 |
| Item Type | General Purpose Bolt-On Fuses for Transformer Protection |
| Size | 22.68 x 13.65 x 13.65 |
| Type of Indicators | Visual Indicator |
| Voltage Rating | 15500 |
