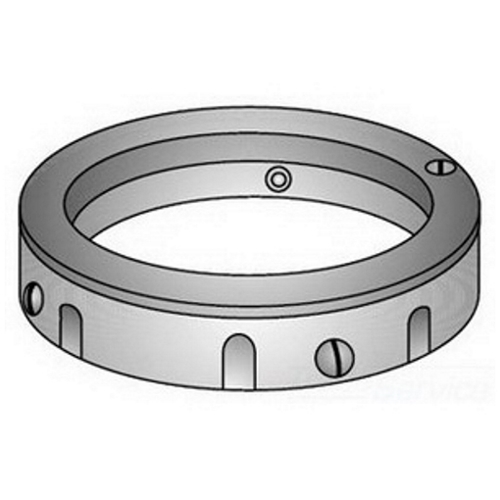

SBT-200 Type SBT Conduit Bushing, 2 in Trade, Malleable Iron, Zinc Plated
- MFR:
- O-Z/Gedney
- MFR #:
- SBT-200
- UPC:
- 783126483109
- Item #:
- 1069471
SBT-200 Type SBT Conduit Bushing, 2 in Trade, Malleable Iron, Zinc Plated
- MFR #:
- SBT-200
- UPC:
- 783126483109
- Item #:
- 1069471
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$61.30
each
Manuals and Documentation
| Catalog Number | SBT-200 |
| Manufacturer | O-Z/Gedney |
| Brand | O-Z/Gedney |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For EMT Conduit |
| Connection | Threadless |
| Finish | Zinc Plated |
| Material | Malleable Iron Body, Stainless Steel Screws |
| Special Features | O-Z/Gedney specification grade insulated bushings help protect insulated conductors from abrasion during pulling or due to mechanical vibration; They also provide a voltage gradient between the live conductors and ground at the point where conductor insulation is subjected to electrical and mechanical stress; Molded-on high impact phenolic thermosetting insulation; Positive metallic conduit stop |
| Standard | Third Party Certification: UL File Number E-11853, CSA 011584, Applicable Third Party Standards: UL 514B, CSA C22.2 No.18, Federal Specification W-F-408E, NEMA : FB-1 |
| UPC | 783126483109 |
| GTIN | 00783126483109 |
| Item Type | Type SBT Insulated Bushing |
| Size | 2 |
| Temperature Rating | 150 DEG C |
