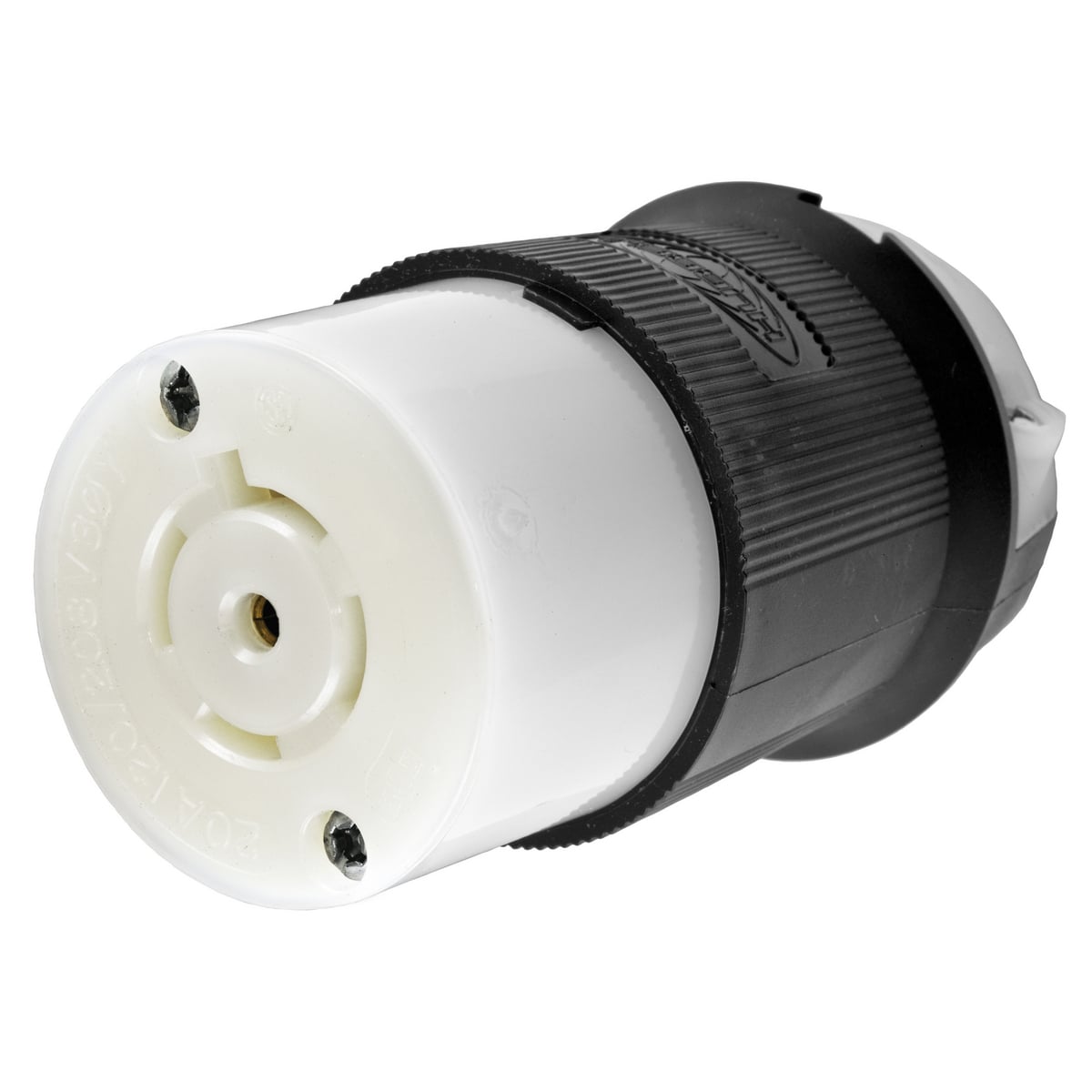

HBL2513FC 3-Phase Heavy Duty Isolated Grounding Standard Sized Cord Mount Female Connector, 120Y/208 V AC, 20 A, 4 Poles, 5 Wires, Black/White
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL2513FC
- UPC:
- 783585040004
- Item #:
- 1069291
HBL2513FC 3-Phase Heavy Duty Isolated Grounding Standard Sized Cord Mount Female Connector, 120Y/208 V AC, 20 A, 4 Poles, 5 Wires, Black/White
- MFR #:
- HBL2513FC
- UPC:
- 783585040004
- Item #:
- 1069291
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$126.57
each
Manuals and Documentation
| Catalog Number | HBL2513FC |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 20 |
| Application | Heavy Duty Industrial |
| Color | Black; White |
| Conductor Range | #12AWG to #10AWG |
| Connection | Pressure Screw Terminal |
| Insulation | Insulated Body |
| Material | Nylon |
| Mounting | Cord |
| NEMA Rating | 1 |
| Number of Conductors | 5-Wire Grounding |
| Number of Poles | 4 |
| Special Features | Flat Cable Version |
| Standard | Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 |
| UPC | 783585040004 |
| GTIN | 00783585040004 |
| Item Type | Insulgrip |
| Size | 3.86 in x 2.33 in x 2.33 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Temperature Rating | Maximum Continuous: 75 Degrees C; Minimum Continuous: -40 Degrees C w/o impact, -25 Degrees with impact. |
| Voltage Rating | 120/208 |
