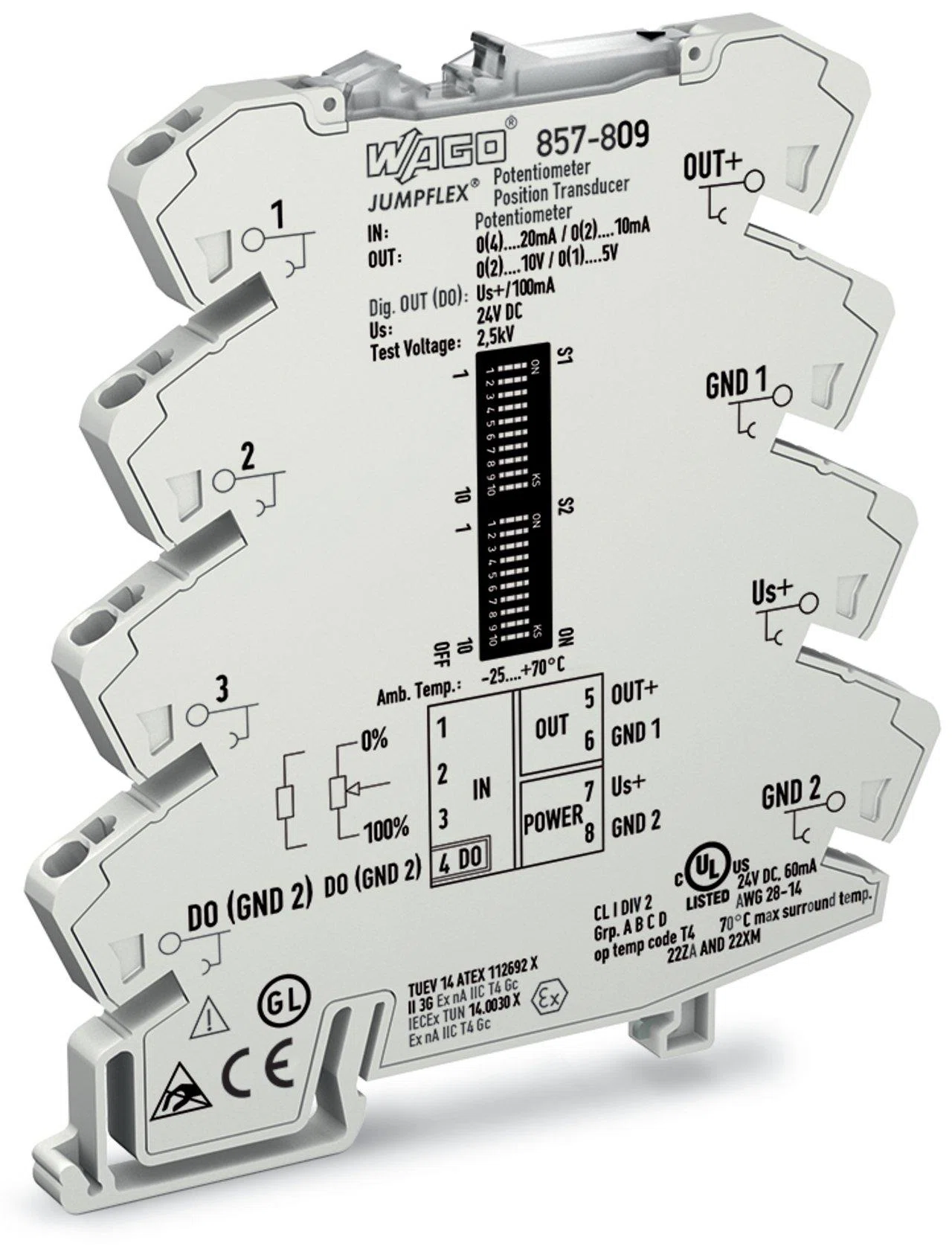

857-809 857 Potentiometer Signal Conditioner, 24 V DC Input
- MFR:
- WAGO Corporation
- MFR #:
- 857-809
- Item #:
- 1069019
857-809 857 Potentiometer Signal Conditioner, 24 V DC Input
- MFR #:
- 857-809
- Item #:
- 1069019
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$405.90
each
WAGO, 857-809, Potentiometer Signal Conditioner, Series: 857, 24 V DC Input, 20 mA Output Current, Push-In Connection, DIN Rail Mounting, -25 to 70 deg C, 32 ms Response, Specifications: 0.418 MJ Fire Load, Spring Terminal, 3.701 in H x 0.236 in W x 3.85 in D Dimensions
Manuals and Documentation
| Manufacturer Part Number | 857-809 |
| Brand | WAGO |
| Manufacturer | WAGO Corporation |
| EAN | 4050821480761 |
| Country Of Origin | DE |
| Dimensions | 3.701 in H x 0.236 in W x 3.85 in D |
| Mounting Type | DIN Rail |
| Series | 857 |
| Specifications | 0.418 MJ Fire Load, Spring Terminal |
| Temperature Rating | -25 to 70 deg C |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Standards Approvals | RoHS Compliant | IP20 | DNVEN 61010-1 | CE |
| Connection Type | Push-In |
| Input Voltage | 24 V DC |
| Output Current | 20 mA |
| Response Time | 32 ms |
