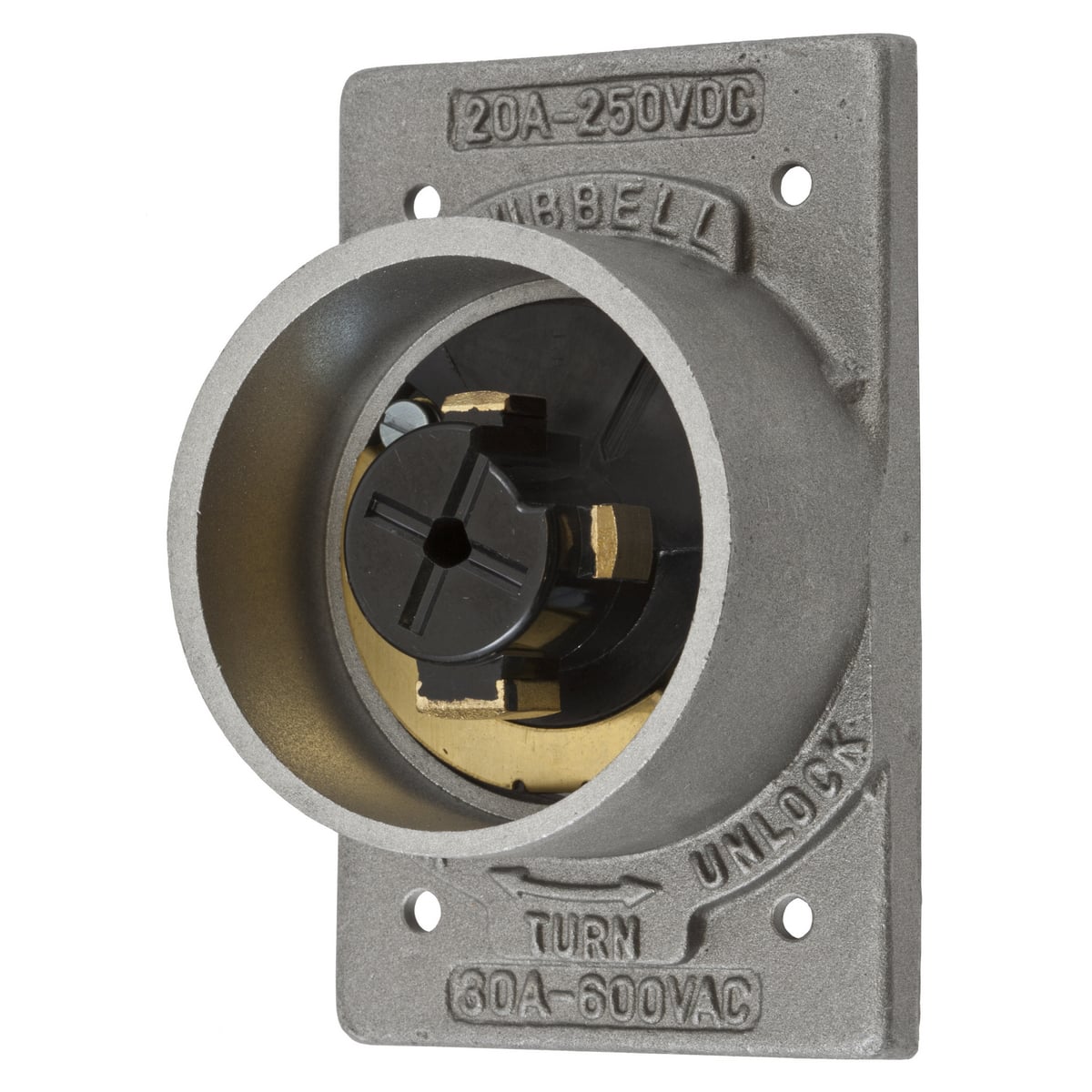

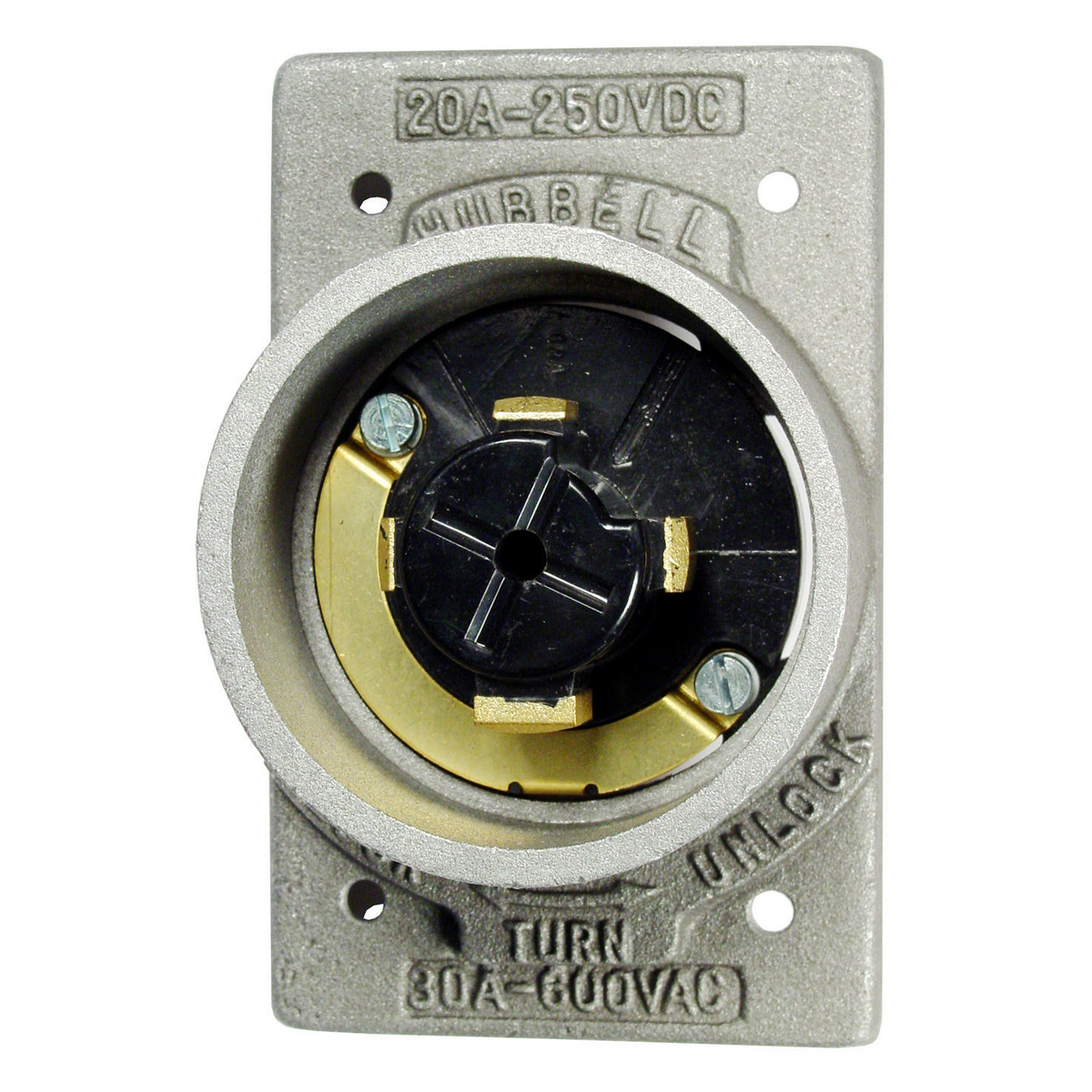

HBL20418 Grounding Locking Flanged Inlet, 600 V AC/250 V DC, 30/20 A, 3 Poles, 4 Wires, Metallic

MFR:
Hubbell Wiring Device-Kellems
MFR #:
HBL20418
UPC:
783585017457
Item #:
106802

Availability

Location Available Qty
Available Available to Order
$333.93 each

The Hubbellock devices feature an exclusive design unlike any other in the industry. The unique design is built to provide the safest heavy duty device even in some of the harshest environments. These Hubbellock plugs and connector bodies are built with a super tough nylon housing for high impact resistance and a one of kind interior design for superior safety that Hubbell is known for. The male contacts are molded into the nose for damage resistance and completely eliminate the chance of deformity. Additionally, the plug as well as the connector retains power mechanical cord grips that not only secure the cable but also clamp down on the conductors in order to provide unrivaled strain relief. Inside the connector is Hubbell's unique safety design. With unparalleled box terminations the connector interior holds a spring-loaded safety shutter to provide the ultimate arc protection. Furthermore the exceptional heat and impact resistance is maintained by the thermoplastic interior contributing toa longer lasting device. In all, the one of a kind function of the Hubbellock devices provide a safe and dependable performance in the most demanding applications.

Manuals and Documentation
Catalog Number HBL20418
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin United States
Made in USA Yes
Amperage Rating 30
Application Extra Heavy Duty Industrial
Color Metallic
Connection Pressure Screw Terminals
Insulation Insulated Body
Material Aluminum, Cast
Mounting Screw
Number of Poles 3
Number of Wires 4-Wire
Special Features FS/FD Mounting
Standard Certified to CSA Standard;Listed to UL Standard
UPC 783585017457
GTIN 00783585017457
Item Type Flanged Inlet
Size 4.56 in x 2.84 in x 2.4 in
Environmental Conditions Indoor Dry Unless Protected By Additional Means
Voltage Rating 250 VDC/600
Wattage 18,000 W
Wire Size #10 AWG to #6 AWG
